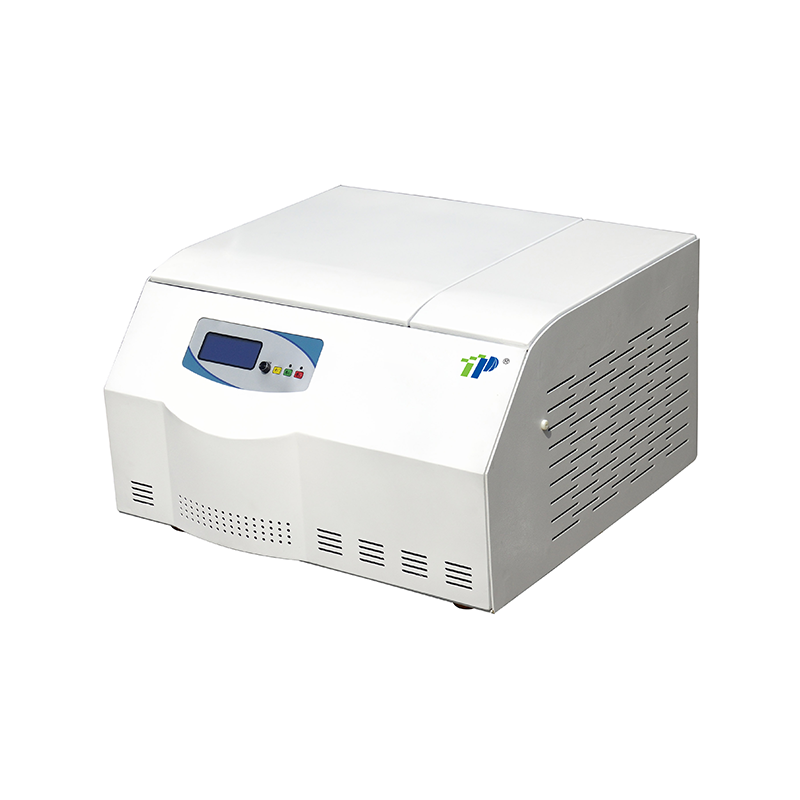

TDL-5AR Low-Speed Refrigerated Desktop Centrifuge | 4000 RPM, 4×250ml, -20℃ to +40℃

Maximum speed: 4000r/min
Maximum RCF: 3399 × g
Maximum preparation capacity: 250ml × 4
Timing range: 1min~99min
Temperature control range: -20℃~+40℃

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TDL-5AR

  • TOP

Application

TDL-5AR low-speed desktop freeze centrifuge is widely used in clinical medicine, biochemistry, genetic engineering, immunology and other fields. It is an essential equipment used for centrifugal separation in hospitals, research institutions, and universities at all levels.


Feature

1.Moderate size, equipped with multiple capacity adapters and good compatibility, suitable for small and medium-sized multifunctional experimental requirements.

2.Equipped with various protections such as overspeed and imbalance to enhance safety.

3.Maintenance free variable frequency motor driven by microcomputer control, with stable operation, low noise, and high speed accuracy.

4.Imported refrigeration unit with excellent refrigeration effect, precise temperature control, and fluorine free refrigerant that meets environmental requirements.

5.Unique airflow guidance to maintain a low temperature level during sample centrifugation.

6.Equipped with three layers of protective chambers, 316 stainless steel inner chamber, anti-corrosion and crack prevention, sturdy structure, and long service life.

7.Screen LCD display, 10 speed up and down (0 speed for free parking), 10 program storage.

8.Automatically calculate and set the RCF value of centrifugal force, and the rotational speed and centrifugal force can be switched and displayed synchronously.

9.Unique electronic door lock design, when the instrument is started, the electronic lock automatically locks the door cover, which is safe, reliable, easy and convenient.


Technical parameter

Maximum speed4000r/min
Maximum RCF3399 × g
Speed accuracy±10r/min
Timing range1min~99min
Temperature control range- 20℃~+40℃
Temperature control accuracy± 1 ℃
Maximum preparation capacity250ml × 4
Whole machine noise≤ 65dB(A)
Power supplyAC220V 50HZ 30A
Total power1000W
Dimensions (L × W × H)700×640×410(mm)
Outer packaging size (L × W × H)760×700×440(mm)
Weight134kg
