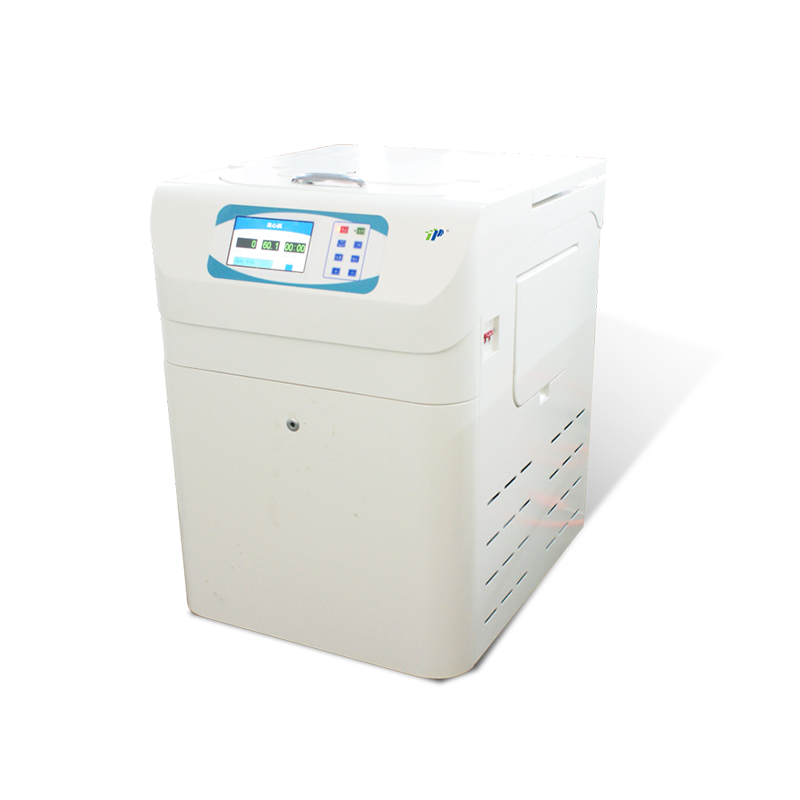

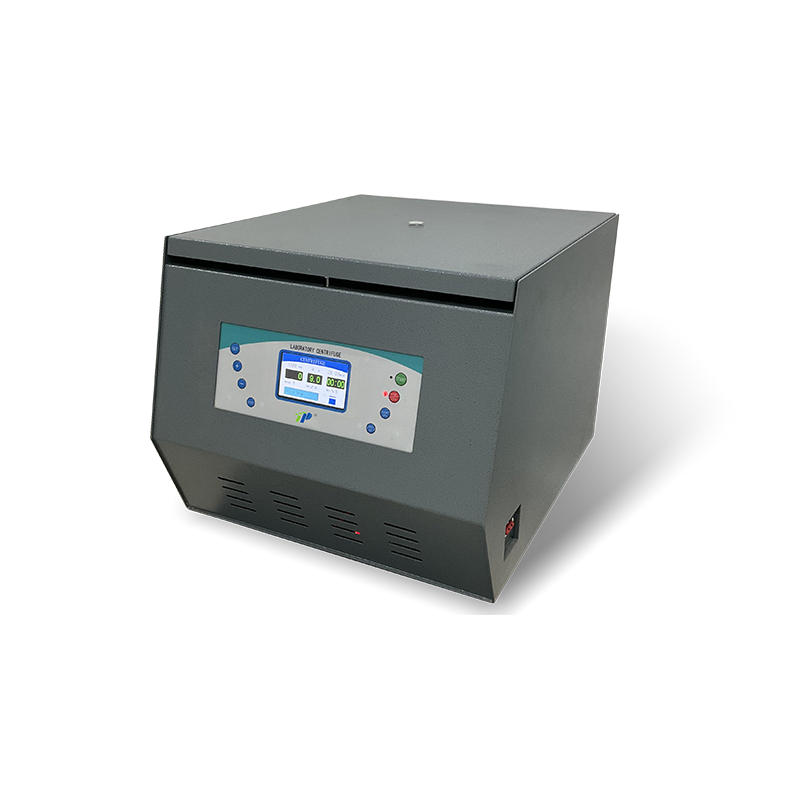

TZ-SYT-4C/TZ-SYL-8D
TOP
It is designed according to the water and deposit determining in crude oil. It meets the requirements of GB/T6533-2012 or ASTM D4007 standard and makes use of separation to determine the water and deposit in crude oil. It is ideal equipment for moisture determining in oil exploration and researching institute.
Feature:
1. Power coated housing. Stainless steel chamber with guarding ring.
2. Reliable drive system. Variable frequency motor maintenance free.
3. Electronic safety lock prevent cover opening during centrifugation.
4. Manually lid open in case of failure or emergency.
5. Pneumatic spring supports prevent falling of lid.
6. Recall of last settings. Parameters can be changed during operation.
7. Microprocessor control of all functions: speed, time, temperature, acceleration/deceleration, RCF, program memory, error display.
8. The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.
9. Produced according to national and international safety standard.
10. Optional: Automatic lid opening at the end of run.
It is designed according to the water and deposit determining in crude oil. It meets the requirements of GB/T6533-2012 or ASTM D4007 standard and makes use of separation to determine the water and deposit in crude oil. It is ideal equipment for moisture determining in oil exploration and researching institute.
Feature:
1. Power coated housing. Stainless steel chamber with guarding ring.
2. Reliable drive system. Variable frequency motor maintenance free.
3. Electronic safety lock prevent cover opening during centrifugation.
4. Manually lid open in case of failure or emergency.
5. Pneumatic spring supports prevent falling of lid.
6. Recall of last settings. Parameters can be changed during operation.
7. Microprocessor control of all functions: speed, time, temperature, acceleration/deceleration, RCF, program memory, error display.
8. The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.
9. Produced according to national and international safety standard.
10. Optional: Automatic lid opening at the end of run.
Technical data
Model | TZ-SYT-4C (Table top) | TZ-SYL-8D (Floor top) |
Max. RPM/RCF | 4000rpm / 3957×g | 2500rpm / 1563×g |
Max. Capacity | 4×100ml | 16×100ml |
Speed increment | 50rpm | |
Speed accuracy | ±20rpm | |
Temperature range | RT ~ 70℃ | RT ~ 70℃ |
Timer range | 0min~99min59s | |
Acc / Dec rates | 10/10 | |
Power supply | AC220V / 50~60Hz | |
Power requirement | 1.5KW | |
Noise | <55db | |
Screen | LCD Screen | |
Machine body | Metal frame | |
Net weight (without rotor) | 65kg | 140kg |
Machine dimension(L×W×H) | 540×650×480mm | 630×740×900mm |
Rotor List
Swing Rotor | SGO4 | SGO16 |
Cat. No. | B20449 | B20450 |
Max.Capacity | 4×100ml | 16×100ml |
Max. Speed | 4000rpm | 2500rpm |
Max. RCF | 3957×g | 1563×g |
