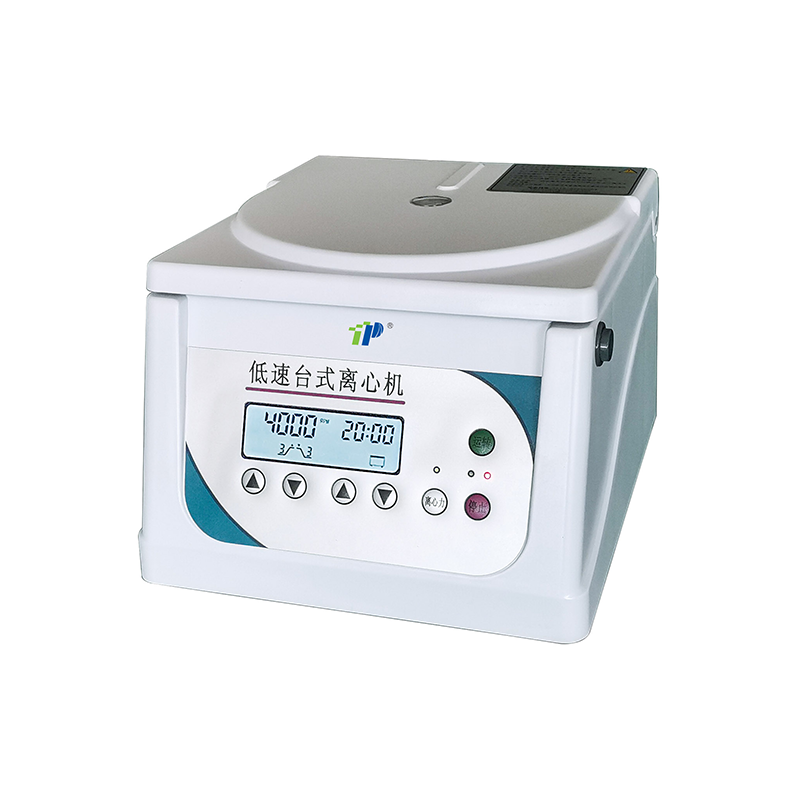

Compact 8×20ml Low Speed Centrifuge with Brushless Motor and LCD Display for Blood Sample Separation
You are here: home » Products » Centrifuges » Low Speed Centrifuges » Compact 8×20ml Low Speed Centrifuge with Brushless Motor and LCD Display for Blood Sample Separation

Product Category

loading

Compact 8×20ml Low Speed Centrifuge with Brushless Motor and LCD Display for Blood Sample Separation

Max Speed: 4000 rpm
Max Relative Centrifugal Force (RCF): 1970×g
Speed Accuracy: ±10 rpm
Timer Range: 1 to 99 minutes
Max Capacity: 8 × 20ml (compatible with 5/7ml vacuum blood collection tubes)
Noise Level: ≤ 65 dB(A)
Dimensions (L×W×H): 280 × 320 × 220 mm
Weight: 6.6 kg

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TDL-40F

  • TOP

Application:

It can be widely used in scientific research and production units such as biology, genetics, and medicine to separate particles with small sample sizes of biological cells, proteins, hormones, viruses, etc. It is an essential instrument for centrifugal separation in hospitals, research units, and universities at all levels.


Feature

1. Compact size, exquisite workmanship, and beautiful appearance save laboratory space.

2. Equipped with various protections such as overspeed and imbalance to enhance safety.

3. Parameters such as speed and time can be set, and microcomputer control is convenient and fast.

4. Unique air duct structure design, low temperature rise of the test solution.

5. Maintenance free brushless motor drive, stable operation, low noise, and high speed accuracy.

6. Safe door lock design, simple structure, safe and reliable, easy and convenient.

7. Screen LCD display, synchronous display of rotational speed and centrifugal force


Technical parameter


Maximum speed4000r/min
Maximum RCF1970×g
Speed accuracy±10r/min
Timing range1min~99min
Maximum preparation capacity20ml × 8 (5/7ml vacuum blood collection tube)
Whole machine noise≤ 65dB(A)
Power supplyAC220V 50HZ 30A
Total power100W
Dimensions (L × W × H)280 × 320 × 220 (mm)
Outer packaging size (L × W × H)380×330×370(mm)
Weight6.6kg
