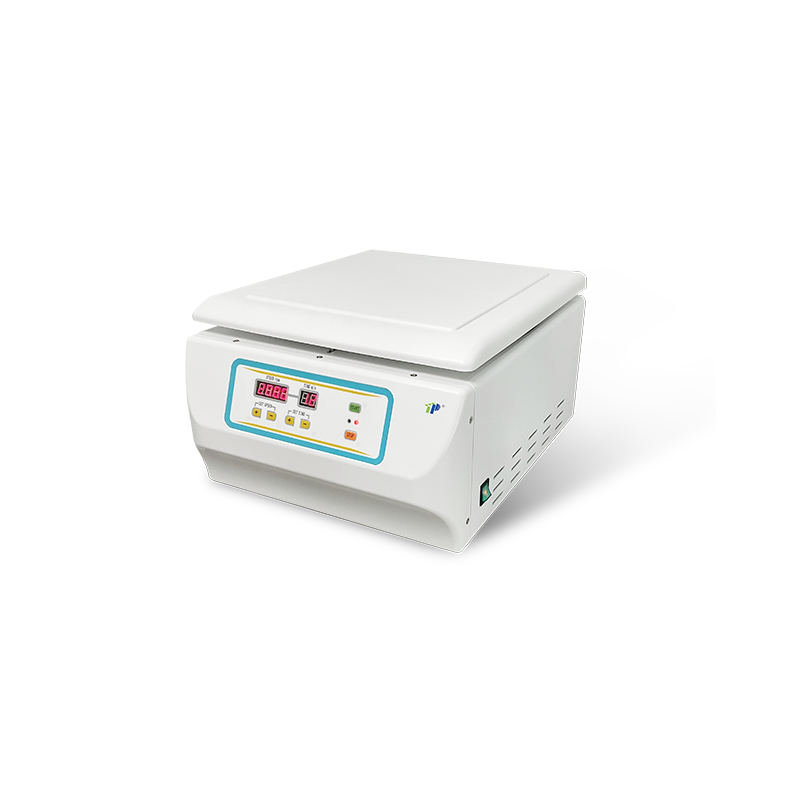

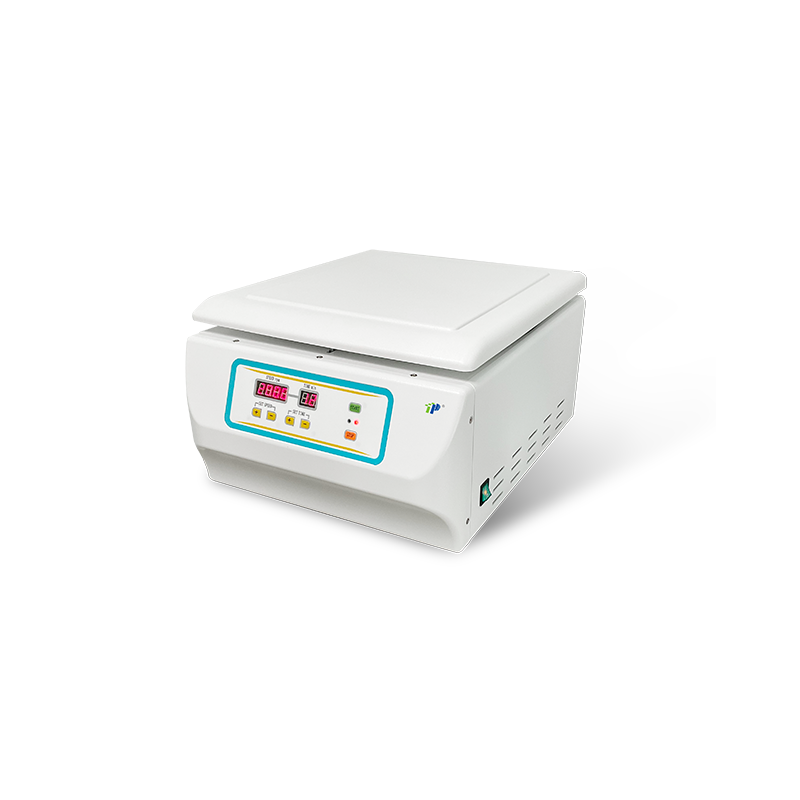

Cytology Centrifuge for Thin Layer Cell Preparation – Models TJ-8 & TJ-12, 12-Sample Capacity, 2200 rpm
Models: TJ-8 (Angle Rotor), TJ-12 (Swing Rotor)
Max Speed / RCF: 2200 rpm, up to 937×g (depending on rotor)
Capacity: 12 samples per run
Timer Range: TJ-8: 0–99 min 59 s; TJ-12: 1–99 min
Speed Accuracy: ±20 rpm, Increment: 10 rpm
Noise Level: <55 dB
Safety Features: Electronic safety lock, imbalance & overspeed protection, optional auto lid opening
Max Speed / RCF: 2200 rpm, up to 937×g (depending on rotor)
Capacity: 12 samples per run
Timer Range: TJ-8: 0–99 min 59 s; TJ-12: 1–99 min
Speed Accuracy: ±20 rpm, Increment: 10 rpm
Noise Level: <55 dB
Safety Features: Electronic safety lock, imbalance & overspeed protection, optional auto lid opening
| Quantity: | |
|---|---|
-
TJ-8 / TJ-12
-
TOP
It can be widely used in cervical cell thin layer preparation, pleural fluid cell thin layer preparation, cerebrospinal fluid cell thin layer preparation, bronchial lavage fluid cell thin layer preparation, needle aspiration cell thin layer preparation, sputum cell layer preparation, and other cell preparation fields.
Feature:
1. Power coated housing. Stainless steel chamber with guarding ring.
2. Reliable drive system. Brushless motor maintenance free.
3. Electronic safety lock prevent cover opening during centrifugation.
4. Manually lid open in case of failure or emergency.
5. Pneumatic spring supports prevent falling of lid.
6. Recall of last settings. Parameters can be changed during operation.
7. Microprocessor control of all functions: speed, time, temperature, acceleration/deceleration, RCF, error display.
8. The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.
9. Produced according to national and international safety standards (ISO9001, ISO13485, ISO14001, EN IEC 61010, EN IEC 61326).
10. Optional: Automatic lid opening at the end of run.
11. Optional: Short spin (TJ-8).
It can be widely used in cervical cell thin layer preparation, pleural fluid cell thin layer preparation, cerebrospinal fluid cell thin layer preparation, bronchial lavage fluid cell thin layer preparation, needle aspiration cell thin layer preparation, sputum cell layer preparation, and other cell preparation fields.
Feature:
1. Power coated housing. Stainless steel chamber with guarding ring.
2. Reliable drive system. Brushless motor maintenance free.
3. Electronic safety lock prevent cover opening during centrifugation.
4. Manually lid open in case of failure or emergency.
5. Pneumatic spring supports prevent falling of lid.
6. Recall of last settings. Parameters can be changed during operation.
7. Microprocessor control of all functions: speed, time, temperature, acceleration/deceleration, RCF, error display.
8. The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.
9. Produced according to national and international safety standards (ISO9001, ISO13485, ISO14001, EN IEC 61010, EN IEC 61326).
10. Optional: Automatic lid opening at the end of run.
11. Optional: Short spin (TJ-8).
