TD-500 Blood Bank Centrifuge | 5500 rpm | 15ml × 12 | Automatic Balancing & Microcomputer Control
You are here: home » Products » Centrifuges » Low Speed Centrifuges » TD-500 Blood Bank Centrifuge | 5500 rpm | 15ml × 12 | Automatic Balancing & Microcomputer Control

Product Category

loading

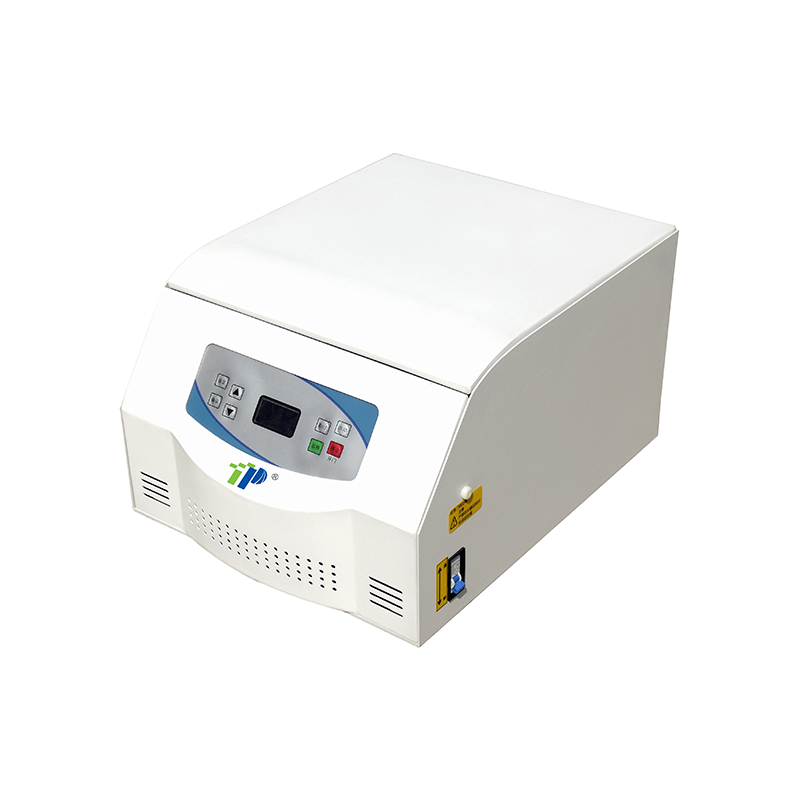

TD-500 Blood Bank Centrifuge | 5500 rpm | 15ml × 12 | Automatic Balancing & Microcomputer Control

Max Speed / RCF: 5500 rpm / 4300 ×g
Capacity: 15 ml × 12 tubes
Motor & Control: DC brushless motor with microcomputer control
Programs: 10 programmable memory settings
Speed Control: Real-time rpm/RCF switching; ±10 rpm accuracy
Safety: Electronic door lock, overspeed & overheat protection, fault alarms
Acceleration/Deceleration: ≤8 s / ≤15 s for rapid operation

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TD-500

  • TOP

Application:

TD-500 blood bank dedicated automatic balancing centrifuge is a novel, portable, and specialized centrifuge designed to meet the rapid centrifugation needs of blood banks.


Features:

- Microcomputer control, driven by a DC brushless motor, ensuring stable operation, low noise, and high speed accuracy.

- Short acceleration and deceleration times, with the shortest acceleration time ≤8s and deceleration time ≤15s.

- Capable of setting 10 programs for selection during use.

- LCD screen display, user-friendly interface, and simple operation.

- Real-time readout conversion and setting between rpm/RCF, convenient and quick.

- Equipped with an electronic door lock and multiple protection functions such as door cover auto-lock, overspeed, and over temperature; automatic fault alarm function for safety and reliability.


Technical parameters:

ModelTD-500
Maximum speed5500 r/min
Maximum RCF4300×g
Speed accuracy±10 r/min
Time range1 min~99 min
Maximum preparation capacity15ml×12
Overall noise≦65dB(A)
Power sourceAC220V 50HZ 8A
Total power400W
External dimensions (L×W×H)420×350×300 (mm)
Outer packaging dimensions (L × W × H)510×420×460 (mm)
Weight32 kg
