TDL-60A
TOP
Application:

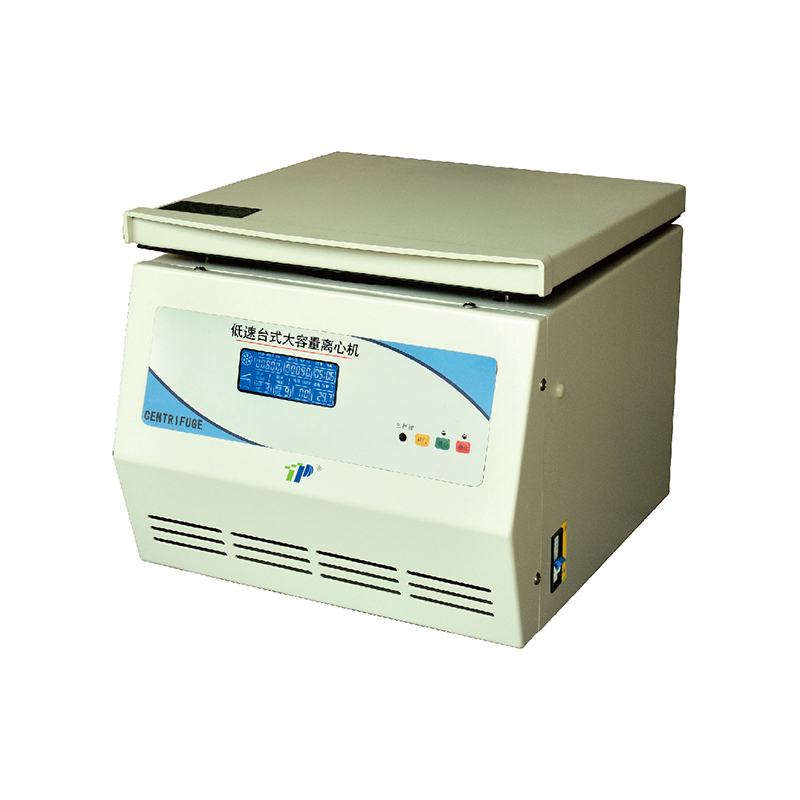

TDL-60A low-speed desktop large-capacity centrifuge, which can be widely used in fields such as clinical medicine, biochemistry, genetic engineering, immunology, and agricultural science. It is an essential instrument for centrifugation and separation in hospitals, research institutions, and universities at all levels.
Feature:
● Moderate size, equipped with various capacity adapters with good compatibility, suitable for the needs of small to medium-sized multi-functional experiments.
●Equipped with multiple protections such as over speed and imbalance, enhancing safety.
● Maintenance-free variable frequency motor drive microcomputer control, stable operation, low noise, high speed precision.
●Stainless steel protective chamber,Corrosion-resistant and crack-resistant, solid construction, long service life.
● LCD screen display, Single knob rotation control, button for option activation, rotation for option parameter changes, other three buttons for start, stop, and opening the cover.
●10 speed levels for lifting and lowering (level 0 is free parking), 10 programs stored
●Automatically calculate and set the centrifugal force RCF value; the centrifugal force and rotational speed can be switched and displayed synchronously.
● Unique electronic lock design, when the device is activated, the electronic lock automatically secures the door cover, safe and reliable, easy and convenient.
Application:
TDL-60A low-speed desktop large-capacity centrifuge, which can be widely used in fields such as clinical medicine, biochemistry, genetic engineering, immunology, and agricultural science. It is an essential instrument for centrifugation and separation in hospitals, research institutions, and universities at all levels.
Feature:
● Moderate size, equipped with various capacity adapters with good compatibility, suitable for the needs of small to medium-sized multi-functional experiments.
●Equipped with multiple protections such as over speed and imbalance, enhancing safety.
● Maintenance-free variable frequency motor drive microcomputer control, stable operation, low noise, high speed precision.
●Stainless steel protective chamber,Corrosion-resistant and crack-resistant, solid construction, long service life.
● LCD screen display, Single knob rotation control, button for option activation, rotation for option parameter changes, other three buttons for start, stop, and opening the cover.
●10 speed levels for lifting and lowering (level 0 is free parking), 10 programs stored
●Automatically calculate and set the centrifugal force RCF value; the centrifugal force and rotational speed can be switched and displayed synchronously.
● Unique electronic lock design, when the device is activated, the electronic lock automatically secures the door cover, safe and reliable, easy and convenient.
Technical Parameters:
Maximum RPM | 6000 r/min |
Maximum RCF | 5200×g |
Speed accuracy | ±10r/min |
Scheduled range | 1min to 99min |
Maximum preparation capacity | 500ml×4 |
Overall machine noise | ≦65dB(A) |
Power supply | AC220V50HZ 30A |
Total power | 500W |
Dimensions (L×W×H) | 570×540×440(mm) |
Outer package dimensions (L×W×H) | 705×660×605(mm) |
Weight | 70kg |
Technical Parameters:
Maximum RPM | 6000 r/min |
Maximum RCF | 5200×g |
Speed accuracy | ±10r/min |
Scheduled range | 1min to 99min |
Maximum preparation capacity | 500ml×4 |
Overall machine noise | ≦65dB(A) |
Power supply | AC220V50HZ 30A |
Total power | 500W |
Dimensions (L×W×H) | 570×540×440(mm) |
Outer package dimensions (L×W×H) | 705×660×605(mm) |
Weight | 70kg |
