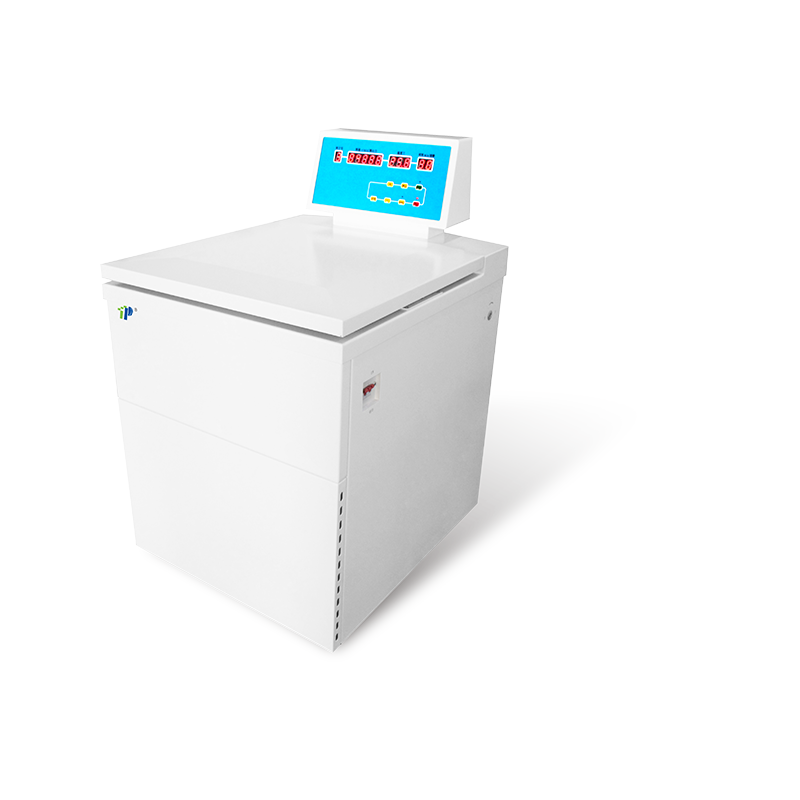

TZ-5M/TZ-5/TL-5M/TD5M
TOP
It is widely used in clinical medicine, clinical laboratory, biological engineering, Genetic engineering, immunology. It is suitable for the separation and purification of radioimmunoassay, water analysis, biochemistry, pharmaceutical and blood products.
Feature:
1. Power coated housing. Universal castors.
2. Reliable drive system. Converter motor maintenance free.
3. Motorized lid locks prevent cover opening during centrifugation.
4. Pneumatic spring supports prevent falling of lid.
5. Manually lid open in case of failure or emergency.
6. Pre-cooling during standstill. CFC free refrigeration system (only for refrigerated models).
7. Recall of last settings. Parameters can be changed during operation.
8. Microprocessor control of all functions: speed, time, temperature, acceleration/deceleration, RCF, program memory, error display.
9. The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.
10. Produced according to national and international safety standard (ISO9001, ISO13485, ISO14001, EN IEC 61010, EN IEC 61326).
11. Optional: Automatic lid opening at the end of run.
12. Optional: Short spin.
13. Optional: Rotor identification.
14. Optional: Program memory for TZ-5M, TZ-5.
It is widely used in clinical medicine, clinical laboratory, biological engineering, Genetic engineering, immunology. It is suitable for the separation and purification of radioimmunoassay, water analysis, biochemistry, pharmaceutical and blood products.
Feature:
1. Power coated housing. Universal castors.
2. Reliable drive system. Converter motor maintenance free.
3. Motorized lid locks prevent cover opening during centrifugation.
4. Pneumatic spring supports prevent falling of lid.
5. Manually lid open in case of failure or emergency.
6. Pre-cooling during standstill. CFC free refrigeration system (only for refrigerated models).
7. Recall of last settings. Parameters can be changed during operation.
8. Microprocessor control of all functions: speed, time, temperature, acceleration/deceleration, RCF, program memory, error display.
9. The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.
10. Produced according to national and international safety standard (ISO9001, ISO13485, ISO14001, EN IEC 61010, EN IEC 61326).
11. Optional: Automatic lid opening at the end of run.
12. Optional: Short spin.
13. Optional: Rotor identification.
14. Optional: Program memory for TZ-5M, TZ-5.
Technical data:
Model | TZ-5M | TZ-5 | TL-5M | TD5M |
Max. RPM/RCF for angle rotor | 5000rpm / 3525×g | |||
Max. RPM/RCF for swing rotor | 5000rpm / 4633×g | |||
Max. Capacity for angle rotor | 12×15ml | |||
Max. Capacity for swing rotor | 4×1000ml, 148×5ml | |||
Speed increment | 50rpm | |||
Speed accuracy | ±20 rpm | |||
Temp. range | -20℃~+40℃ | - | -20℃~+40℃ | - |
Temp accuracy | ±2℃ | - | ±2℃ | - |
Timer range | 0~99min50s / 23h59min | 1min~99min | ||
Acc / Dec rates | 12/12 | - | ||
Program memory | *30 | - | ||
Power supply | AC220V 50/60Hz | |||
Power requirement | 1.75KW | 1KW | 1.75KW | 1KW |
Noise | <58db | |||
Display | LCD screen | Digital display | ||
Machine Body | Metal frame | |||
Motor | Converter Motor, direct drive | |||
Net weight (without rotor) | 165kg | 140kg | 150kg | 133kg |
Machine Dimension(L×W×H) | 630×740×900mm | 630×740×1040mm |
Rotor List
Angle Rotor | AL1215-2 | |
Max.Capacity | 12×15ml | |
Max. Speed | 5000rpm | |
Max. RCF | 3525×g | |
Angle | 55° | |
ØxL(mm) | B10055 18×92mm | |
Adaptor | A20121 | 12×5ml (vacuum tube) |
A20122 | 12×2ml (vacuum tube) |
SS8100 Swing Rotor |
|
|
|
| |||
Cat. No. | B10402 | B10403 | B10405 | B10406 | B20409 | B20410 | |
Max.Capacity | 4×100ml | 8×50ml | 32×15ml | 32×10ml | 48×5ml | 48×2ml | |
Max. Speed | 5000rpm | 4000rpm | 4000rpm | 4000rpm | 4000rpm | 4000rpm | |
Max. RCF | 4633×g | 3151×g | 3130×g | 3058×g | 2945×g | 2462×g | |
ØxL(mm) | 42.5×100mm | 30.5×92mm | 18×92mm | 18×88mm | 13.5×86mm | 13.5×58mm | |
Adaptor | - | A20114 | 8×1×15ml | A20121 | 4×8×5ml (vacuum tube) | - | - |
- | A20115 | 8×1×10ml | A20122 | 4×8×2ml (vacuum tube) | - | - | |
- | A20116 | 8×1×5ml | A10123 | 4×8×1.5/2ml | - | - | |
- | A20117 | 8×1×1.5/2ml | - | - |
SG7501 Swing Rotor |
|
|
|
| |||
Cat. No. | B20421 | B20420 | B20424 | B20418 | |||
Max.Capacity | 4×750ml oval | 4×500ml | 4×6×50ml | 4×4×50ml | |||
Max. Speed | 4000rpm | 4000rpm | 4000rpm | 4000rpm | |||
Max. RCF | 3661×g | 3572×g | 3527×g | 3527×g | |||
ØxL(mm) | 76×117×108mm | 81×105mm | 30.5×86.5mm | 89×70.5×101mm | |||
Adaptor | A10108 | 4×1×250ml | A20114 | 4×6×15ml | A20406 | 4×4×50ml | |
A10109 | 4×1×100ml | A20115 | 4×6×10ml | A21207 | 4×12×15ml | ||
A10410 | 4×4×50ml | A20116 | 4×6×5ml | ||||
A10811 | 4×8×15ml | A20117 | 4×6×1.5/2ml | ||||
A10812 | 4×8×10ml | ||||||
A21413 | 4×14×5/2ml (vacuum tube) |
SG7501 Swing Rotor |
|
|
|
| |||
Cat. No. | B20419 | B20416 | B20417 | B20414 | B20415 | B20412 | B20413 |
Max.Capacity | 48×15ml | 120×5ml | 120×2ml | 96×5ml | 96×2ml | 80×5ml | 80×2ml |
Max. Speed | 4000rpm | 4000rpm | 4000rpm | 4000rpm | 4000rpm | 4000rpm | 4000rpm |
Max. RCF | 3617×g | 3581×g | 3223×g | 3617×g | 3259×g | 3617×g | 3259×g |
ØxL(mm) | 17×104mm | 13.5×86mm | 13.5×58mm | 13.5×86mm | 13.5×58mm | 13.5×86mm | 13.5×58mm |
Swing Rotor | SA1965 | SG7502 | SG6500 | SG4250-1 | ||||
Cat. No. | B20460 | B20426 | B20629 | B20427 | ||||
Max.Capacity | 4×1000ml | 4×750ml | 6×500ml | 4×250ml | ||||
Max. Speed | 4000rpm | 3500rpm | 4000rpm | 4000rpm | ||||
Max. RCF | 3604×g | 2591×g | 3751×g | 2990×g | ||||
ØxL(mm) | - | 89.7×137.5mm | 81×105mm | 63.5×90mm | ||||
Adaptor | A14843 | 48×50ml | A21444 | 4×14×10/15ml | A10108 | 4×1×250ml | A10133 | 4×1×50ml |
A19642 | 96×15ml | A20745 | 4×7×50ml | A10109 | 4×1×100ml | A10434 | 4×4×15/10ml | |
A18040 | 180×8ml (16×100mm) | A10410 | 4×4×50ml | A10735 | 4×7×5/2ml (vacuum tube) | |||
A19639 | 196×5/2ml (vacuum tube) | A10811 | 4×8×15ml | |||||
A10812 | 4×8×10ml | |||||||
A21413 | 4×14×5/2ml (vacuum tube) |
Swing Rotor | SG148X | SA4496 | SG2296 | |
Cat. No. | B20422 | B20423 | B10436 | B10235 |
Max.Capacity | 148×5ml | 148×2ml | 4×4×96 | 2×2×96 |
Max. Speed | 4000rpm | 4000rpm | 4000rpm | 4000rpm |
Max. RCF | 3438×g | 3062×g | 2659×g | 2390×g |
ØxL(mm) | 13.5×86mm | 13.5×58mm | 128×86×55mm | 137×87×42mm |
