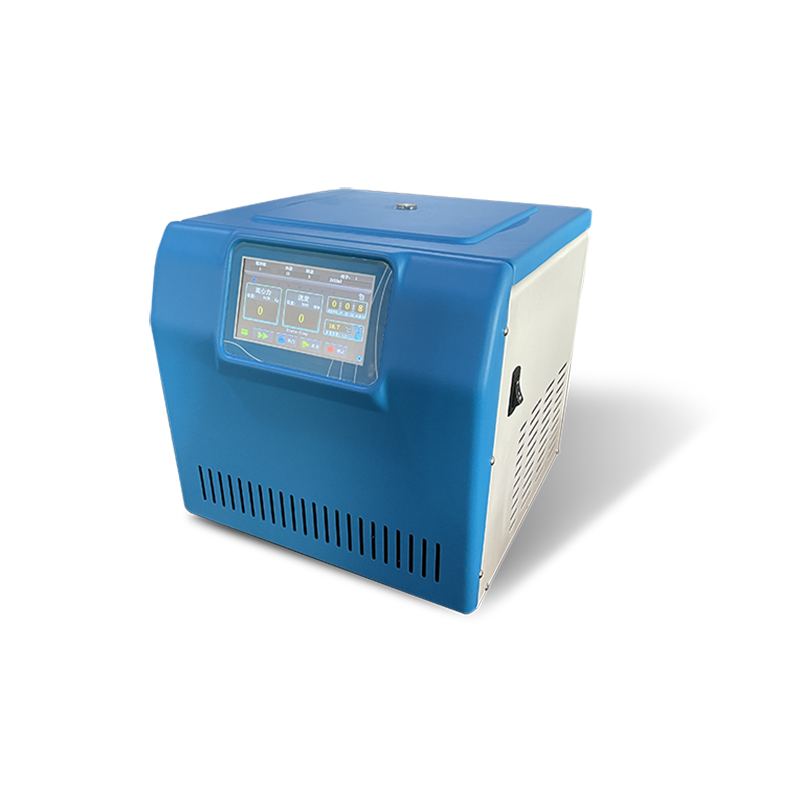

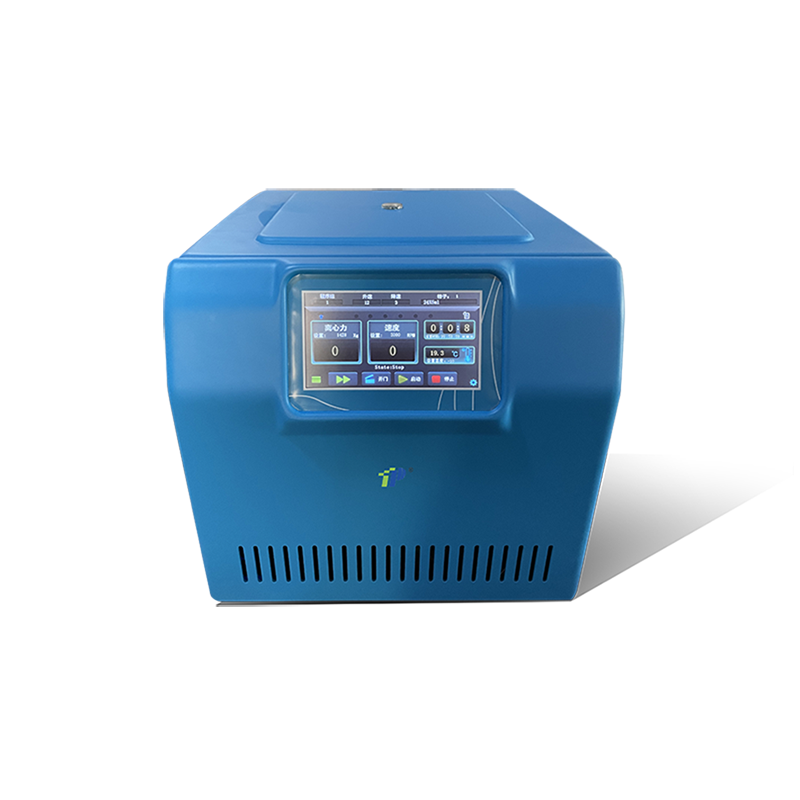

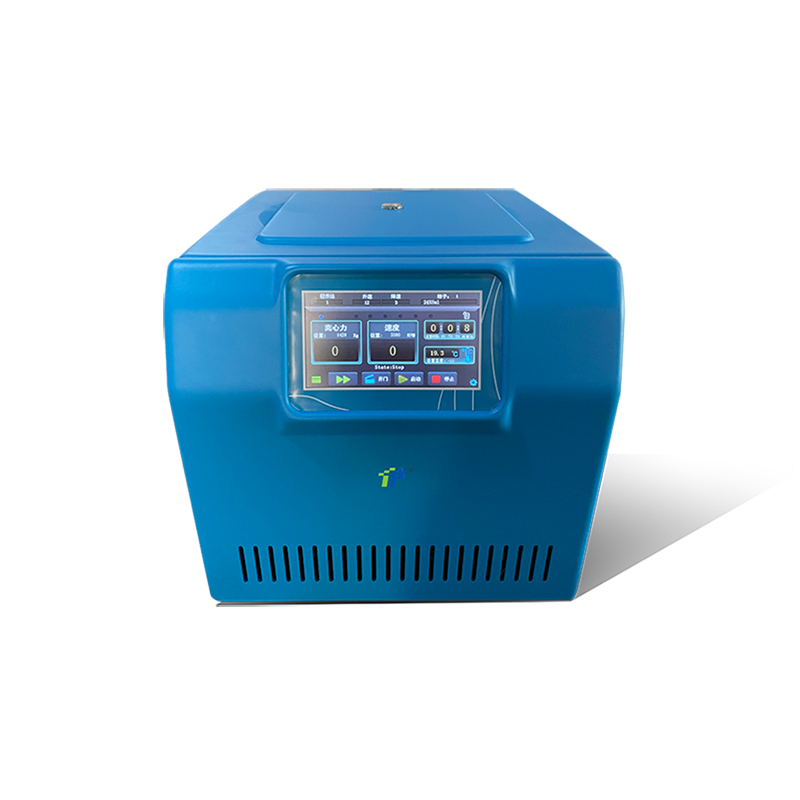

High-Capacity Refrigerated Blood Bank Centrifuge TDL4M – 4000 rpm, 24×5 mL / 12×15 mL, LCD Touch Control

Max. Speed / RCF: 4000 rpm / 2540 × g
Max. Capacity: 24×5 mL or 12×15 mL tubes
Temperature Range: -20°C to +40°C, accuracy ±2°C
Speed Accuracy: ±20 rpm
Timer Range: 0–99 min 59 s or continuous run
Control & Display: LCD touch screen, microprocessor control, 100 program memory
Safety Features: Electronic safety lock, imbalance & over-temperature protection, emergency lid opening

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TDL4M

  • TOP

It is suitable for blood collection vehicles, blood donation houses and other places with narrow space.


Features:

1. Reliable drive system. Variable frequency motor maintenance free.

2. Electronic safety lock prevent cover opening during centrifugation.

3. Manually lid open in case of failure or emergency.

4. Pre-cooling during standstill. CFC free refrigeration system.

5. Microprocessor control of all functions: speed, time, temperature, acceleration/deceleration, RCF, program memory, error display.

6. Touch LCD screen easy to read and values selection.

7. The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.

8. Equipped with USB interface, which can directly export data to USB flash disk.

9. Able to link the local network of the blood station for easy use.

10. Produced according to national and international safety standard (ISO9001, ISO13485, ISO14001, EN IEC 61010, EN IEC 61326).


Technical data


Model

TDL4M

Max. RPM/RCF

4000rpm / 2540×g

Max. Capacity

24×5ml, 12×15ml

Speed accuracy

±20rpm

Temp range

-20℃~+40℃

Temp accuracy

±2℃

Timer range

0min~99min59s, continuous mode

Acc / Dec rates

16/16

Program memory

100

Short spin function

Power supply

AC220V / 50~60Hz

Power requirement

590W

Noise

<58db

Display

LCD Touch Screen

Machine body

Plastic and metal frame

Net weight (without rotor)

36kg

Machine dimension(L×W×H)

435×400×405mm


Rotor List

Swing Rotor

SA24X5

Cat. No.

B20448

Max.Capacity

12×15ml

Max. Speed

4000rpm

Max. RCF

2540×g

ØxL(mm)

18×83mm

Adaptor

A10628

4×6×5ml

(vacuum tube)

A10329

4×3×15ml
