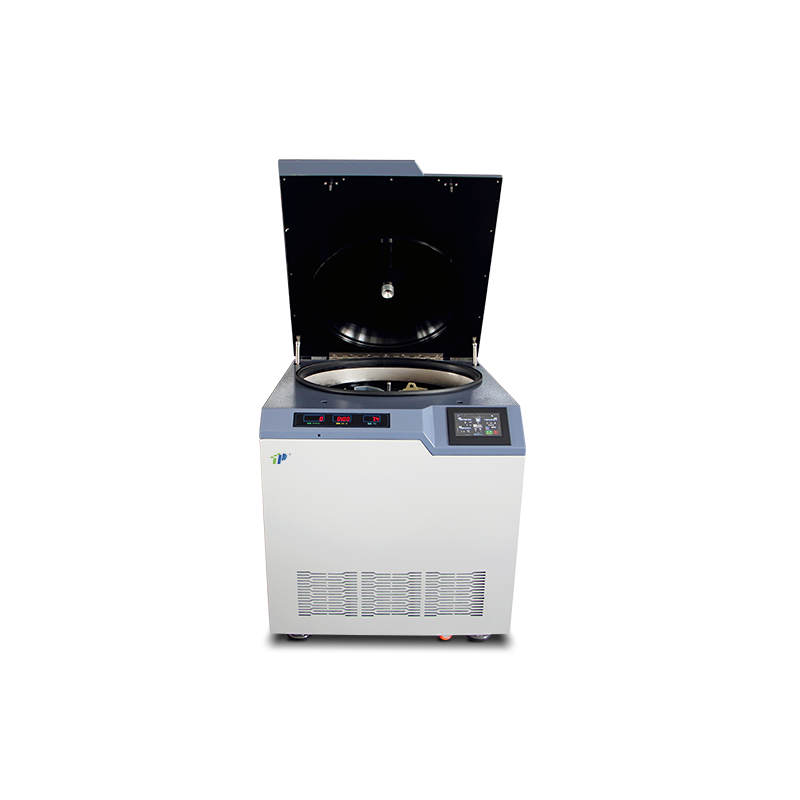

High Capacity Refrigerated Centrifuge 9000rpm | 8×2000ml Large Volume Lab Centrifuge with Intelligent Control

You are here: home » Products » Centrifuges » Refrigerated Centrifuges » High Capacity Refrigerated Centrifuge 9000rpm | 8×2000ml Large Volume Lab Centrifuge with Intelligent Control

Product Category

TDR78C Floor Large Capacity Low Speed Refrigerated Centrifuge

High Capacity Refrigerated Centrifuge 9000rpm | 8×2000ml Large Volume Lab Centrifuge with Intelligent Control

Max Speed: 9000 rpm
Max RCF: 18,610 ×g
Max Capacity: 8×2000 ml
Temperature Range: -20℃ to 40℃ with ±1.0℃ accuracy
Powerful 7500W ECO-friendly refrigeration system
Intelligent rotor automatic recognition and safety protections (over speed, over heat, unbalance)
Noise level ≤ 65 dB(A), with special noise reduction system

Quantity:
Availability:





Inquire Add to Basket

Model:
TDR78C
Brand:
TOP

Product Features:

Intelligent control system

◆ Auto electric lid lock.

◆ Automatically calculate RCF,RPM and RCF switching freely.

◆ Up to 10 level acceleration/ deceleration with Linear drive.

◆ Can store 99 groups of program.

Excellent kernel performance

◆ Microcomputer control with LCD Display,driven by AC frequency conversion brush-less motor.

◆ Two modes can be set: start timing/arrival revolution timing.

◆ Imported ECO-Friendly CFC free compressor unit,heated and cooling dual system control.

Careful and safe

◆ With rotor automatic identification system .

◆ Over speed,over heat,unbalance protections with auto lid lock.

◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.

◆ Equipped with self correcting balance swivel and error code.

Intimate detail design

◆ Equipped the intimate portable fan hood hanger;

◆ The machine with an operation SOP guide map, which makes it easier and more standard for laboratory workers.

◆ Equipped with rotor lid that can be quickly locked .

◆ Special noise reduction system .

◆ The side door is designed to facilitate closing and locking the centrifuge cover.

Floor Large Capacity Low Speed Refrigerated Centrifuge Floor standing refrigerated centrifuge Floor centrifuge vs benchtop centrifuge Low speed refrigerated centrifuge Industrial refrigerated centrifuge High volume centrifuge with cooling price of low speed industrial centrifuge 6500 rpm floor centrifuge How to choose a large capacity lab centrifuge Best floor model refrigerated centrifuge for lab

Related Products

High-Speed Refrigerated Laboratory Centrifuge | 6000–20000 rpm, -60℃ to 40℃, Multiple Rotor Options

Heated Crude Oil Moisture Determining Centrifuge

Crude Oil Water & Sediment Centrifuge | 100ml×4/16 | Heating | LCD | Tabletop & Floor Type

Refrigerated Vehicle Low Speed Centrifuge

High-Capacity Refrigerated Blood Bank Centrifuge TDL4M – 4000 rpm, 24×5 mL / 12×15 mL, LCD Touch Control

High-Speed Refrigerated Laboratory Centrifuge 5000 rpm, 4×400 ml Swing Rotor, Microprocessor Control, ISO Certified

Refrigerated Benchtop Low Speed Centrifuge

High-Speed Refrigerated Laboratory Centrifuge TZ-5MT / TDL5M – 5500rpm, LCD Touch Screen, Large Capacity

TDL-6MC Refrigerated Benchtop Low Speed Centrifuge

Laboratory Refrigerated Low-Speed Centrifuge TDL-6MC, 4200 rpm, 12×10ml Capacity, LCD Display

T3H16R1 Refrigerated Benchtop High Speed Centrifuge

High-Speed Refrigerated Microcentrifuge 16000rpm for PCR & Molecular Biology | Compact Lab Centrifuge for 1.5ml, 2.2ml, 5ml Tubes

TG16000 Non-refrigerated Benchtop High Speed Centrifuge

High Speed Refrigerated Laboratory Centrifuge 16000rpm with Touch Screen and Rotor Recognition for Biotech & Clinical Use

TGL-1600R Bench-Top High-Speed Freezing Centrifuge

TGL-R Series Refrigerated High Speed Microcentrifuge with LCD Display and Multiple Rotor Options

High-Speed Refrigerated Desktop Centrifuge | 10000–18500 rpm | Lab & Clinical Use

TGL16MB Bench-Top Refrigerated Centrifuge for Molecular Diagnostics & Biological Research, 16000 RPM High-Speed Microcentrifuge

High Speed Refrigerated Microcentrifuge TGL-20MB with Touchscreen, 20,000 RPM, -20°C to 40°C Temperature Control, 4×100ml Capacity for Medical & Biological Research

Refrigerated Benchtop High Speed Centrifuge

High-Speed Refrigerated Centrifuge 21000 RPM with Touch Screen & Large Capacity for Medical and Biotech Labs

High Speed Refrigerated Centrifuge 21000 RPM with Touchscreen for Clinical & Biotech Applications

Refrigerated Integrated Automatic Centrifuge

Automated Refrigerated Low-Speed Centrifuge TZ-4MT with RS485 Interface and Precise Temperature Control

High-Speed Refrigerated Floor Standing Centrifuge TZ-5M for Clinical and Biological Applications

Refrigerated Floor-top High Speed Centrifuge

High-Speed Refrigerated Centrifuge TZ21K – 21000 rpm, 30053×g | Clinical & Laboratory Use

High-Speed Refrigerated Centrifuge TL-21M with 21000 RPM, 53098×g RCF, Large Capacity for Clinical & Laboratory Use

TL-6MB Refrigerated Floor-top High-Capacity Centrifuge

TL-6MB Refrigerated Floor Standing Centrifuge, 6000rpm, 6×500ml Capacity, Clinical & Biotech Lab Use

TDL-5AR Low speed desktop freeze centrifuge

TDL-5AR Low-Speed Refrigerated Desktop Centrifuge | 4000 RPM, 4×250ml, -20℃ to +40℃

Model	TDR78C
Max Speed	9000rpm	Voltage	AC 220±22V 50Hz 50A
Max RCF	18610×g	Power	7500W
Max Capacity	8×2000ml	Noise Level	≤ 65dB（A）
Timer	1s～23h59min	Size	1060×890×970(mm)
Revolutions/min	±10r/min	Net Weight	540kg
Temp Range	-20℃～40℃	Rotor automatic recognition	Yes
Temp Accuracy	±1.0℃	/	/

Rotor Name	Rotor NO.	NO.	Capacity	Max Speed（r/min)	Max RCF(×g)
Angle rotor	1	1	6×500ml	9000rpm	14400×g
	2	2	6×1000ml	8000rpm	15526×g
	3	3	6×1000ml（carbon fibre）	8000rpm	18610×g
Swing-out rotor	3	3	6×2×1000ml	4200rpm	5600×g
	4	4	6×2400ml	4200rpm	5600×g
	5	5	8×2000ml	4000rpm	5600×g

Model	TDR78C
Max Speed	9000rpm	Voltage	AC 220±22V 50Hz 50A
Max RCF	18610×g	Power	7500W
Max Capacity	8×2000ml	Noise Level	≤ 65dB（A）
Timer	1s～23h59min	Size	1060×890×970(mm)
Revolutions/min	±10r/min	Net Weight	540kg
Temp Range	-20℃～40℃	Rotor automatic recognition	Yes
Temp Accuracy	±1.0℃	/	/

Rotor Name	Rotor NO.	NO.	Capacity	Max Speed（r/min)	Max RCF(×g)
Angle rotor	1	1	6×500ml	9000rpm	14400×g
	2	2	6×1000ml	8000rpm	15526×g
	3	3	6×1000ml（carbon fibre）	8000rpm	18610×g
Swing-out rotor	3	3	6×2×1000ml	4200rpm	5600×g
	4	4	6×2400ml	4200rpm	5600×g
	5	5	8×2000ml	4000rpm	5600×g
