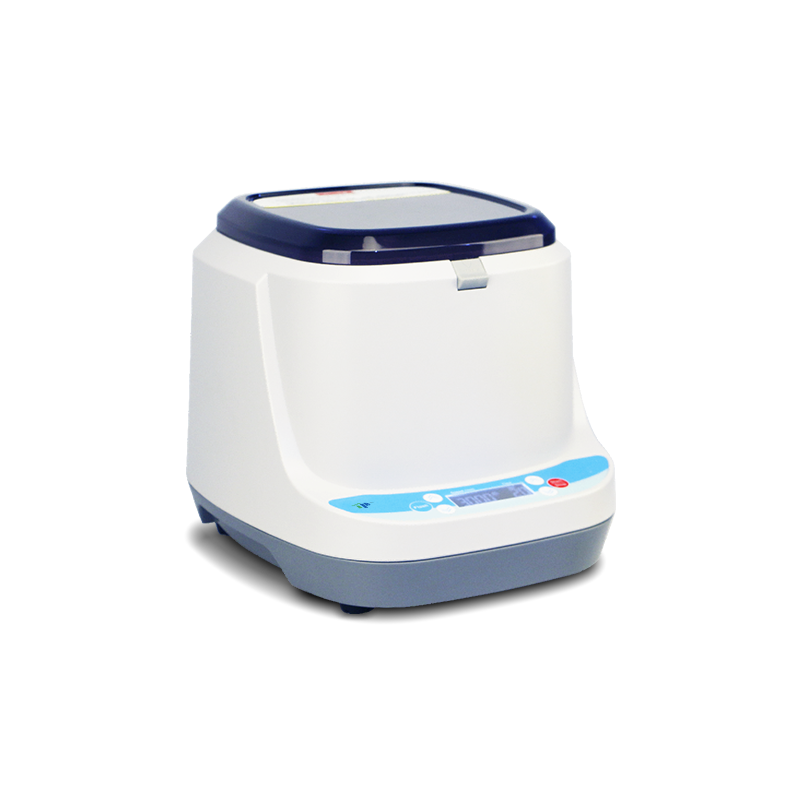

TK96C Micro Well Plate Centrifuge for 96/384-Well PCR Plates | High-Speed Brushless Motor Lab Centrifuge

Speed Range: 300–3000 ±15 rpm, Max RCF: 608×g
Capacity: 2×96-well PCR or enzyme label plates
Motor: DC brushless variable frequency motor with smooth start and brake
Centrifuge Time: 1 min to 99 min 59 sec
Safety Features: Door cover protection, over-speed & imbalance detection with sound alarm and error display
Dimensions: 225×255×215 mm; Weight: 3.9 kg; Noise Level: 60 dB

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TK96C

  • TOP

Micro well plate centrifuge adopts international advanced design concept and manufacturing technology, with "smooth start" and "smooth brake" functional characteristics; This micro plate centrifuge is very suitable for 96 hole or 384 hole micro plates and small capacity micro plates. It is also suitable for micro plates with skirt, without skirt and various standard PCR micro plates.


Product Features:

1. The instantaneous centrifugation function rises to the maximum speed for about 6 seconds, which can quickly leave the liquid droplets hanging on the wall;

2. Faster acceleration and deceleration rate to complete the experiment in a shorter time;

3. The door cover protection, over-speed and imbalance detection system can monitor the centrifuge process in real time to ensure the safe operation of the instrument;

4. When the operation is over, error or imbalance occurs, the sound signal prompts, and the operation stops at the same time, and the LCD displays the result code;


Technical Parameter

Model

TK96C

Input power

DC24V/2.75A

Input power

55W

Motor/drive mode

DC24V DC brushless variable frequency motor

Display mode

Highlight LCD

Effective centrifuge time

1-99min.1-59sec

Speed

300~3000±15rpm

Speed step increase

10rpm

Max Capacity

2*96hole PCR plate/enzyme label plate

Max RCF

608×g

Misoperation/alarm failure

Sound prompt+display code

Sample loading method

Place vertically downward

Weight

3.9Kg

Noise

60dB(A)

Fastest acceleration time

≤6s

Fastest deceleration time

≤5s

Size:L×W×H

225mm×255mm×215mm

Allowable ambient temperature/relative temperature

+5-40℃/80%

Degree of protection

IP20

Interference suppression standard

EN 61010-1,EN 61010-2-020,EN 61326-1,EN 61010-3-2/A2


* All products can be customized, designed and produced according to customer requirements.
