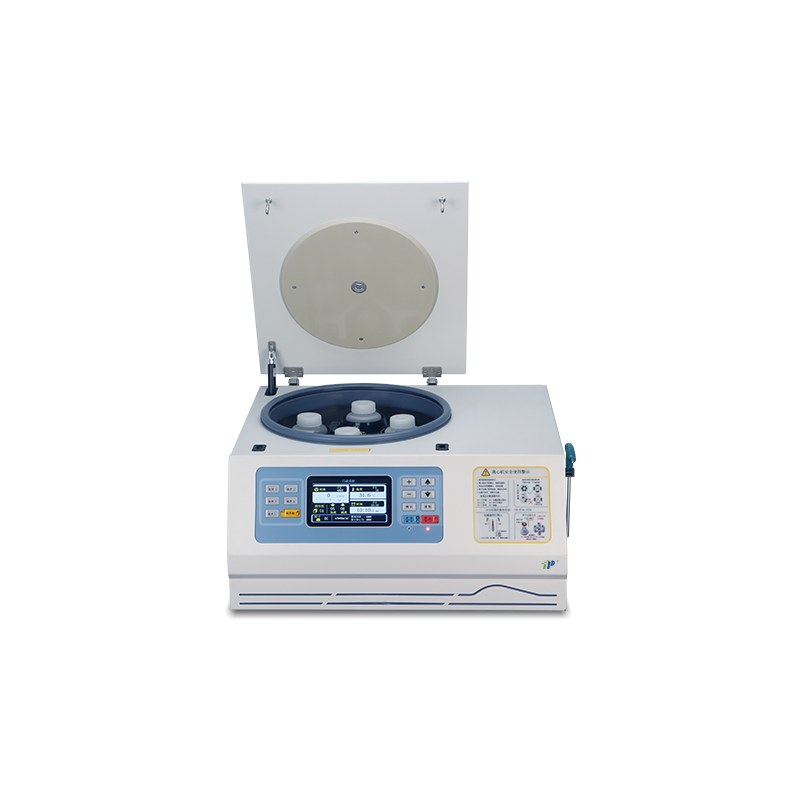

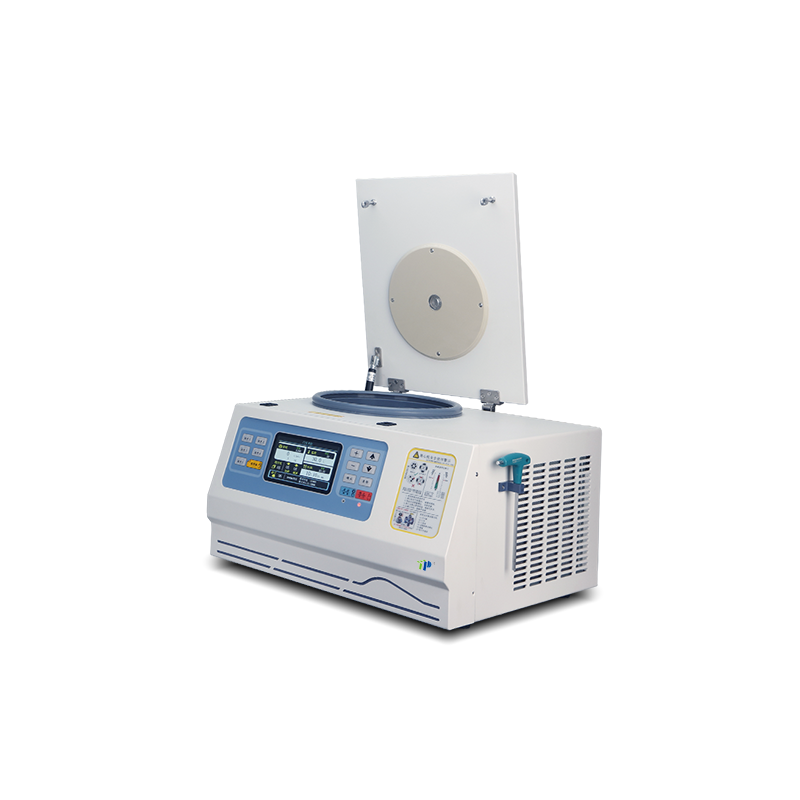

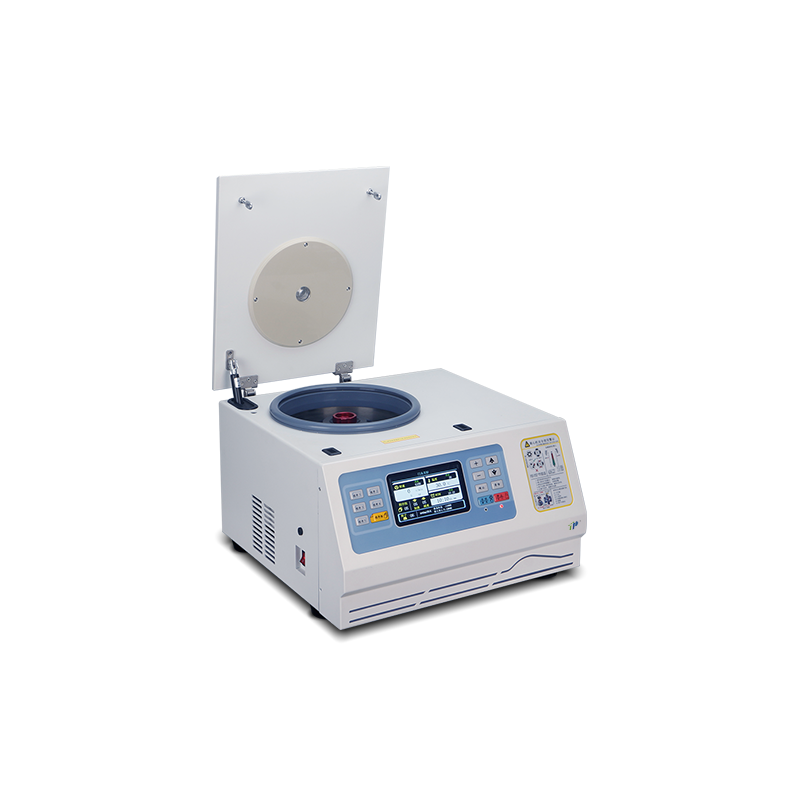

Refrigerated Laboratory Centrifuge 4×250ml/750ml, 5500-6500 rpm High Capacity with Automatic Rotor Recognition

Max Speed: 5500–6500 rpm
Max RCF: 4919×g to 5952×g
Max Capacity: 4×250ml or 4×750ml depending on model
Timer: 1 second to 99h59m59s
Temperature Range: -20℃ to 40℃ with ±1.0℃ accuracy
Noise Level: ≤ 60dB(A)
Rotor automatic recognition and multiple rotor options for versatile applications

Quantity:
Availability:





Inquire Add to Basket

Model:
TR35C / TR36C / TR45C / TR46C
Brand:
TOP

Product Features:

Intelligent control system

◆ Equipped with five groups of programs.

◆ Program group shortcut key, large storage space, can store 99 program groups, convenient to call at any time.

◆ Automatic electronic door lock.

◆ One key short-time centrifuge button.

Excellent kernel performance

◆ HD large LCD display and the parameters can be revised during operation without shutdown.

◆ Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.

◆ 10 gear acceleration /deceleration with linear drive.

◆ Two modes can be set: start timing/arrival revolution timing.

Careful and safe

◆ With rotor automatic identification system .

◆ Over speed,over heat,unbalance protections with auto lid lock.

◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.

Intimate detail design

◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.

◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.

◆ Equipped with a rotor lid that can be quickly locked for easy use.

◆ Ergonomic, low opening height, close the centrifuge cover with one press.

◆ Special noise reduction system.

Technical Parameter:

Model	TR35C	TR36C	TR45C	TR46C
Max Speed	5500rpm	6500rpm	5500rpm	6500rpm
Max RCF	4919×g	5091×g	5952×g	5952×g
Max Capacity	4×250ml	4×250ml	4×750ml	4×750ml
Timer	1s～99h59min59s	1s～99h59min59s	1s～99h59min	1s～99h59min59s
Revolutions/min	±10r/min	±10r/min	±10r/min	±10r/min
Temp Range	-20℃～40℃	-20℃～40℃	-20℃～40℃	-20℃～40℃
Temp Accuracy	±1.0℃	±1.0℃	±1.0℃	±1.0℃
Voltage	AC 220±22V 50Hz 10A	AC 220±22V 50Hz 10A	AC 220±22V 50Hz 15A	AC 220±22V 50Hz 15A or custom
Power	1000W	1000W	1500W	1500W
Noise Level	≤ 60dB（A）	≤ 60dB（A）	≤ 60dB（A）	≤ 60dB（A）
Size	660×600×360 (mm)	660×600×360 (mm)	730×660×400 (mm)	730×660×400 (mm)
Net Weight	86kg	86kg	115kg	118kg
Rotor automatic recognition	Yes	Yes	Yes	Yes

Rotor parameters for TR35C:

Rotor Name	Rotor NO.	NO.	Capacity	Max Speed（r/min)	Max RCF(×g)
Angle rotor(W)	1	1	6×50ml	5500rpm	3645×g
Angle rotor(W)	2	2	40×15ml	5000rpm	4919×g
Swing-out rotor body	3	3	It shall be used together with pipe rack
Pipe rack	3	4	4×50ml	4000rpm	2951×g
		5	4×100ml	4000rpm	2951×g
		6	8×50ml	4000rpm	2951×g
		7	8×100ml
		8	16×10/15ml Optional
		9	24×10/15ml Optional
		10	32×10/15ml Optional
		11	48×2~7ml（Blood collection tube）
		12	64×5ml（Blood collection tube）
Swing-out rotor	4	13	4×250ml(Round bottom)	4000rpm	3040×g
		14	4×250ml(Round bottom) /（with biosafety lid）	4000rpm	3040×g
		15	Auto uncap 64×2~7ml(Blood collection tube)	4000rpm	3040×g
Swing-out rotor	4	16	4×250ml square bucket (used with adapter)	4000rpm	3040×g
Adapters	4	a	4×1×250ml Flat bottom	4000rpm	3040×g
		b	4×2×100ml Round bottom	4000rpm	3040×g
		c	4×4×50ml Conical bottom	4000rpm	3040×g
		d	4×10×10/15ml Conical bottom	4000rpm	3040×g
		e	4×12×10ml High speed Round bottom	4000rpm	3040×g
		f	4×12×5ml High speed round bottom buckle cap tube	4000rpm	3040×g
		g	4×16×1.5/2ml	4000rpm	3040×g
		h	4×12×10ml Blood collection tube	4000rpm	3040×g
		i	4×18×2-7ml Blood collection tube	4000rpm	3040×g
Swing-out rotor	5	17	Micro-plate 2×2×96 hole	4000rpm	2057×g

* All products can be customized, designed and produced according to customer requirements.

Rotor parameters for TR36C：

Rotor Name	Rotor NO.	NO.	Capacity	Max Speed（r/min)	Max RCF(×g)
Angle rotor（W)	1	1	6×50ml	6500rpm	5091×g
Angle rotor（W)	2	2	40×15ml	5000rpm	4919×g
Swing-out rotor body	3	3	It shall be used together with pipe rack
Pipe rack	3	4	4×50ml	4200rpm	3254×g
		5	4×100ml	4200rpm	3254×g
		6	8×50ml	4200rpm	3254×g
		7	8×100ml
		8	16×10/15ml Optional
		9	24×10/15ml Optional
		10	32×10/15ml Optional
		11	48×2~7ml（Blood collection tube）
		12	64×5ml（Blood collection tube）
Swing-out rotor	4	13	4×250ml(Round cup)	4200rpm	3352×g
		14	4×250ml(Round cup) （with biosafety lid）	4200rpm	3352×g
		15	Auto uncap 64×2~7ml(Blood collection tube)	4200rpm	3352×g
Swing-out rotor	4	16	4×250ml square bucket (used with adapter)	4200rpm	3352×g
Adapters	4	a	4×1×250ml Flat bottom	4200rpm	3352×g
		b	4×2×100ml Round bottom	4200rpm	3352×g
		c	4×4×50ml Conical bottom	4200rpm	3352×g
		d	4×10×10/15ml Conical bottom	4200rpm	3352×g
		e	4×12×10ml High speed Round bottom	4200rpm	3352×g
		f	4×12×5ml High speed round bottom buckle cap tube	4200rpm	3352×g
		g	4×16×1.5/2ml	4200rpm	3352×g
		h	4×12×10ml Blood collection tube	4200rpm	3352×g
		i	4×18×2-7ml Blood collection tube	4200rpm	3352×g
Swing-out rotor	5	17	Micro-plate 2×2×96 hole	4200rpm	2267×g

* All products can be customized, designed and produced according to customer requirements.

Rotor parameters for TR45C:

Rotor Name	Rotor NO.	NO.	Capacity	Max Speed（r/min)	Max RCF(×g)
Angle rotor（W)	1	1	40×15ml	5500rpm	5952×g
Angle rotor（W)	2	2	6×50ml	5500rpm	3645×g
Swing-out rotor	3	3	Auto uncap 120×2~7ml（Blood collection tube）	4000rpm	3309×g
		4	4×750ml(Round bucket)	4000rpm	3309×g
		5	4×750ml(Round bucket)/ （with biosafety lid）	4000rpm	3309×g
		6	4×750ml Square bucket(used with adapters)	4000rpm	3309×g
Swing-out rotor	4	7	Auto uncap 104×2-7ml(blood collection tube)	4000rpm	3184×g
		8	4×500ml(Round bucket)	4000rpm	3184×g
		9	4×500ml(Round bucket) （with biosafetey lid）	4000rpm	3184×g
		10	4×500ml Square bucket (used with adapters)	4000rpm	3184×g
Swing-out rotor	5	11	Auto uncap 64× 2-7ml(blood collection tube)	4000rpm	3040×g
		12	4×250ml(Round bucket)	4000rpm	3040×g
		13	4×250ml(Round bucket) （with biosafety lid）	4000rpm	3040×g
		14	4×250ml(Square cup) (used with adapters)	4000rpm	3040×g
		15	4×250ml( Conical bottom)	4000rpm	3040×g
		16	6×250ml(Round bucket)	4000rpm	3040×g
Swing-out rotor	6	17	Swing-out rotor body 4×750ml shall be used with bucket/basket (Two-in-one rotor combination)
bucket	6	18	750ml round cup/bucket include： Adapter 4×14×15ml(conical bottom) Adapter 4×7×50ml(conical bottom)	4000rpm	3309×g
basket	6	19	Micro-plate 4×2×96 hole	4000rpm	3309×g
Swing-out rotor	7	20	Micro-plate 2×2×96 hole	4000rpm	2057×g

* All products can be customized, designed and produced according to customer requirements.

Rotor parameters for TR46C：

Rotor Name	Rotor NO.	NO.	Capacity	Max Speed（r/min)	Max RCF(×g)
Angle rotor（W)	1	1	6×50ml	6500rpm	5091×g
Angle rotor（W)	2	2	40×15ml	5500rpm	5952×g
Swing-out rotor	3	3	Auto uncap 120×2~7ml（Blood collection tube）	4200rpm	3648×g
		4	4×750ml(Round bucket)	4200rpm	3648×g
		5	4×750ml(Round bucket)/ （with biosafety lid）	4200rpm	3648×g
		6	4×750ml Square bucket(used with adapters)	4200rpm	3648×g
Swing-out rotor	4	7	Auto uncap 104×2-7ml(blood collection tube)	4200rpm	3510×g
		8	4×500ml(Round bucket)	4200rpm	3510×g
		9	4×500ml(Round bucket) （with biosafetey lid）	4200rpm	3510×g
		10	4×500ml Square bucket (used with adapters)	4200rpm	3510×g
Swing-out rotor	5	11	Auto uncap 64× 2-7ml(blood collection tube)	4200rpm	3352×g
		12	4×250ml(Round bucket)	4200rpm	3352×g
		13	4×250ml(Round bucket) （with biosafety lid）	4200rpm	3352×g
		14	4×250ml(Square cup) (used with adapters)	4200rpm	3352×g
		15	4×250ml( Conical bottom)	4200rpm	3352×g
		16	6×250ml(Round bucket)	4200rpm	3352×g
Swing-out rotor	6	17	Swing-out rotor body 4×750ml shall be used with bucket/basket (Two-in-one rotor combination)
bucket	6	18	750ml round cup/bucket include： Adapter 4×14×15ml(conical bottom) Adapter 4×7×50ml(conical bottom)	4200rpm	3648×g
basket	6	19	Micro-plate 4×2×96 hole	4200rpm	3648×g
Swing-out rotor	7	20	Micro-plate 2×2×96 hole	4200rpm	2267×g
