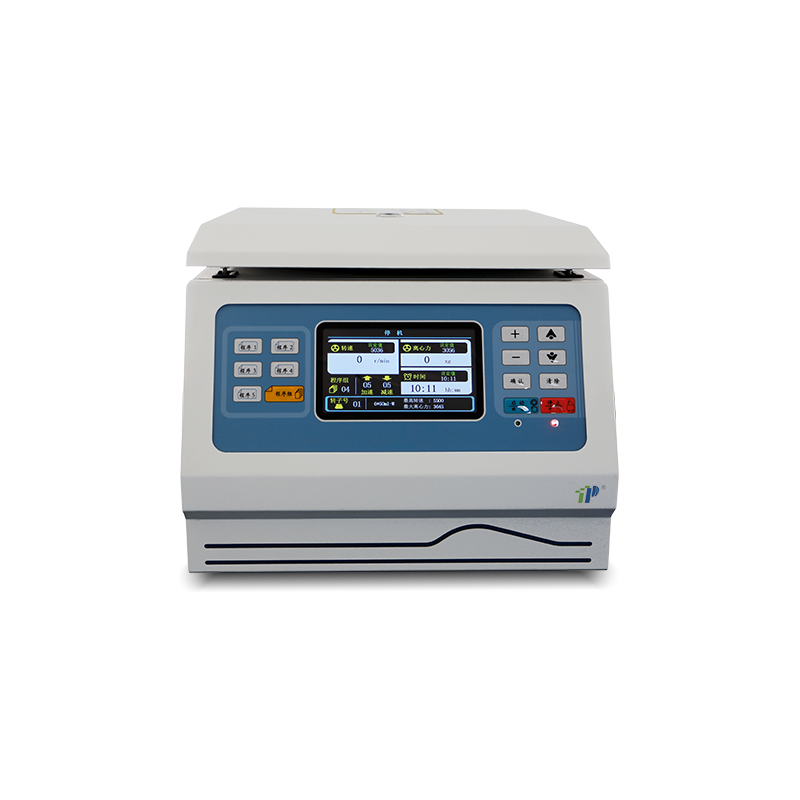

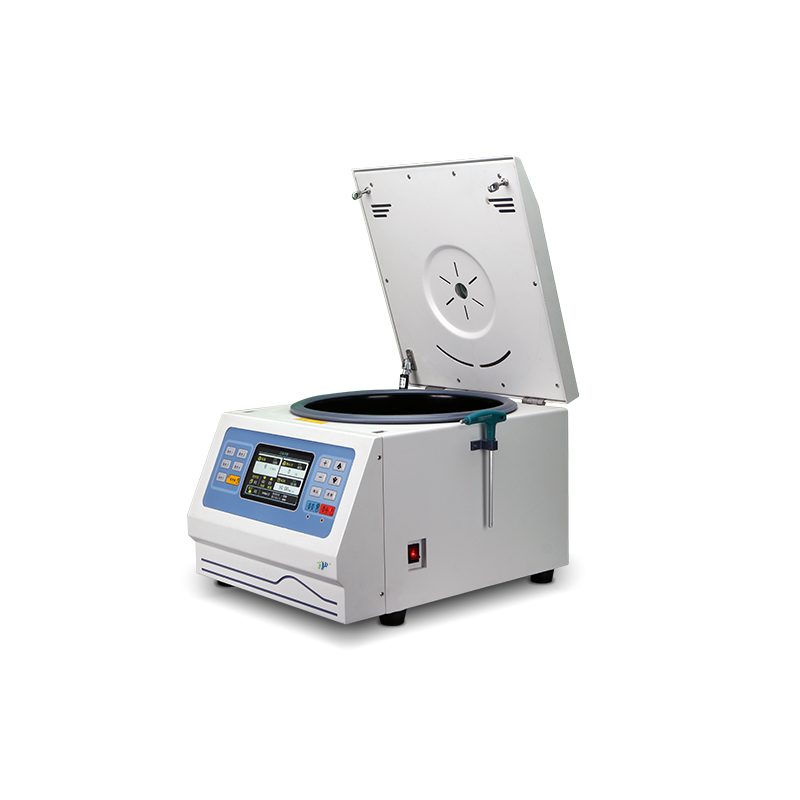

Low Speed Refrigerated Centrifuge 4x250ml & 4x750ml with Auto Rotor ID and Programmable Control

Max Speed: 5500 to 6500 rpm
Max RCF: 4919×g to 5952×g
Max Capacity: 4×250ml or 4×750ml (depending on model)
Timer Range: 1 second to 99h59m59s
Automatic rotor identification system
Noise Level: ≤ 62dB(A)
Power: 550W to 1000W

Quantity:
Availability:





Inquire Add to Basket

Model:
T35C / T36C / T45C / T46C
Brand:
TOP

Product Features:

Intelligent control system

◆ Equipped with five groups of programs.

◆ Program group shortcut key, can store 99 program groups, convenient to call at any time.

◆ Automatic electronic door lock.

◆ With instantaneous and continuous centrifugation functions.

Excellent kernel performance

◆ HD large LCD display and the parameters can be revised during operation without shutdown.

◆ Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.

◆ 10 gear acceleration /deceleration with linear drive.

◆ Two modes can be set: start timing/arrival revolution timing.

Careful and safe

◆ With rotor automatic identification system .

◆ Over speed,over heat,unbalance protections with auto lid lock.

◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.

Intimate detail design

◆ Special noise reduction system.

◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.

◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.

◆ Equipped with rotor lid that can be quickly locked for easy use.

Technical Parameter:

Model	T35C	T36C	T45C	T46C
Max Speed	5500rpm	6500rpm	5500rpm	6500rpm
Max RCF	4919×g	5091×g	5952×g	5952×g
Max Capacity	4×250ml	4×250ml	4×750ml	4×750ml
Timer	1s～99h59min59s	1s～99h59min59s	1s～99h59min59s	1s～99h59min59s
Revolutions/min	±10r/min	±10r/min	±10r/min	±10r/min
Voltage	AC 220±22V 50Hz 10A or custom	AC 220±22V 50Hz 10A or custom	AC 220±22V 50Hz 10A or custom	AC 220±22V 50Hz 10A or custom
Power	550W	550W	1000W	1000W
Noise Level	≤ 62dB（A）	≤ 62dB（A）	≤ 62dB（A）	≤ 62dB（A）
Size	430×540×360 (mm)	430×540×360 (mm)	460×580×410 (mm)	495×643×410 (mm)
Net Weight	45kg	45kg	61kg	70kg
Automatic rotor identification	Yes	Yes	Yes	Yes

Rotor Parameter for T35C：

Rotor Capacity	Rotor NO.	NO.	Rotor Capacity	Max Capacity（r/min)	Max RCF(×g)
Angle rotor（W)	1	1	6×50ml	5500rpm	3645×g
Angle rotor（W)	2	2	40×15ml	5000rpm	4919×g
Swing-out rotor body	3	3	Swing-out rotor body shall be used with as below pipe rack
Pipe rack	3	4	4×50ml	4000rpm	2951×g
		5	4×100ml	4000rpm	2951×g
		6	8×50ml	4000rpm	2951×g
		7	8×100ml
		8	16×10/15ml Optional
		9	24×10/15ml Optional
		10	32×10/15ml Optional
		11	48×2~7ml（Blood collection tube）
		12	64×5ml（Blood collection tube）
Swing-out rotor	4	13	4×250ml(Round bottom)	4000rpm	3040×g
		14	4×250ml (Round bottom)/ （with biosafety lid）	4000rpm	3040×g
		15	Auto uncap 64×2~7ml(Blood collection tube)	4000rpm	3040×g
Swing-out rotor	4	16	4×250ml square bucket (used with adapter)	4000rpm	3040×g
Adapters	4	a	4×1×250ml Round bottom	4000rpm	3040×g
		b	4×2×100ml Round bottom	4000rpm	3040×g
		c	4×4×50ml Conical bottom	4000rpm	3040×g
		d	4×10×10/15ml Conical bottom	4000rpm	3040×g
		e	4×12×10ml High speed Round bottom	4000rpm	3040×g
		f	4×12×5ml High speed round bottom buckle cap tube	4000rpm	3040×g
		g	4×16×1.5/2ml	4000rpm	3040×g
		h	4×12×10ml Blood collection tube	4000rpm	3040×g
		i	4×18×2-7ml Blood collection tube	4000rpm	3040×g
Swing-out rotor	5	17	Micro-plate 2×2×96 hole	4000rpm	2057×g

* All products can be customized, designed and produced according to customer requirements.

Rotor Parameter for T36C：

Rotor Name	Rotor NO.	NO.	Capacity	Max Speed（r/min)	Max RCF(×g)
Angle rotor（W)	1	1	6×50ml	6500rpm	5091×g
Angle rotor（W)	2	2	40×15ml	5000rpm	4919×g
Swing-out rotor body	3	3	It shall be used together with pipe rack
Pipe rack	3	4	4×50ml	4200rpm	3254×g
		5	4×100ml	4200rpm	3254×g
		6	8×50ml	4200rpm	3254×g
		7	8×100ml
		8	16×10/15ml Optional
		9	24×10/15ml Optional
		10	32×10/15ml Optional
		11	48×2~7ml（Blood collection tube）
		12	64×5ml（Blood collection tube）
Swing-out rotor	4	13	4×250ml(Round bottom)	4200rpm	3352×g
		14	4×250ml(Round bottom)/ （with biosafety lid）	4200rpm	3352×g
		15	Auto uncap 64×2~7ml(Blood collection tube)	4200rpm	3352×g
Swing-out rotor	4	16	4×250ml square bucket (used with adapter)	4200rpm	3352×g
Adapters	4	a	4×1×250ml Flat bottom	4200rpm	3352×g
		b	4×2×100ml Round bottom	4200rpm	3352×g
		c	4×4×50ml Conical bottom	4200rpm	3352×g
		d	4×10×10/15ml Conical bottom	4200rpm	3352×g
		e	4×12×10ml High speed Round bottom	4200rpm	3352×g
		f	4×12×5ml High speed round bottom buckle cap tube	4200rpm	3352×g
		g	4×16×1.5/2ml	4200rpm	3352×g
		h	4×12×10ml Blood collection tube	4200rpm	3352×g
		i	4×18×2-7ml Blood collection tube	4200rpm	3352×g
Swing-out rotor	5	17	Micro-plate 2×2×96 hole	4200rpm	2267×g

* All products can be customized, designed and produced according to customer requirements.

Rotor Parameter for T45C：

Rotor Name	Rotor NO.	NO.	Capacity	Max Speed（r/min)	Max RCF(×g)
Angle rotor（W)	1	1	40×15ml	5500rpm	5952×g
Angle rotor（W)	2	2	6×50ml	5500rpm	3645×g
Swing-out rotor	3	3	120×2~7ml（Blood collection tube）	4000rpm	3309×g
		4	4×750ml(Round bucket)	4000rpm	3309×g
		5	4×750ml(Round bucket)/ （with biosafety lid）	4000rpm	3309×g
		6	4×750ml Square bucket(used with adapters)	4000rpm	3309×g
Swing-out rotor	4	7	Auto uncap 104×2-7ml(blood collection tube)	4000rpm	3184×g
		8	4×500ml(Round bucket)	4000rpm	3184×g
		9	4×500ml(Round bucket) （with biosafetey lid）	4000rpm	3184×g
		10	4×500ml Square bucket (used with adapters)	4000rpm	3184×g
Swing-out rotor	5	11	Auto uncap 64×2-7ml(blood collection tube)	4000rpm	3040×g
		12	4×250ml(Round bucket)	4000rpm	3040×g
		13	4×250ml(Round bucket)/ （with biosafety lid）	4000rpm	3040×g
		14	4×250ml Square bucket (used with adapters)	4000rpm	3040×g
		15	4×250ml Sharp bucket（Corning tube）	4000rpm	3040×g
		16	6×250ml(Round bucket)	4000rpm	3040×g
Swing-out rotor	6	17	Swing-out rotor body 4×750ml shall be used with bucket/basket (Two-in-one rotor combination)
bucket	6	18	750ml round cup/bucket include： Adapter 4×14×15ml(conical bottom) Adapter 4×7×50ml(conical bottom)	4000rpm	3309×g
basket	6	19	Micro-plate 4×2×96 hole	4000rpm	3309×g
Swing-out rotor	8	20	Micro-plate 2×2×96 hole	4000rpm	2057×g

* All products can be customized, designed and produced according to customer requirements.

Rotor Parameter for T46C：

Rotor Name	Rotor NO.	NO.	Capacity	Max Speed（r/min)	Max RCF(×g)
Angle rotor（W)	1	1	6×50ml	6500rpm	5091×g
Angle rotor（W)	2	2	40×15ml	5500rpm	5952×g
Swing-out rotor	3	3	120×2~7ml（Blood collection tube）	4200rpm	3648×g
		4	4×750ml(Round bottom)	4200rpm	3648×g
		5	4×750ml(Round bottom) /（with biosafety lid）	4200rpm	3648×g
		6	4×750ml Square cup (used with adapters)	4200rpm	3648×g
Swing-out rotor	4	7	Auto uncap 104×2-7ml(blood collection tube)	4200rpm	3510×g
		8	4×500ml(Round bottom)	4200rpm	3510×g
		9	4×500ml(Round bottom) （with biosafety lid）	4200rpm	3510×g
		10	4×500ml Square cup(used with adapters)	4200rpm	3510×g
Swing-out rotor	6	11	Auto uncap 64×2-7ml(blood collection tube)	4200rpm	3352×g
		12	4×250ml(Round bottom)	4200rpm	3352×g
		13	4×250ml(Round bottom) （with biosafety lid）	4200rpm	3352×g
		14	4×250ml Square cup(used with adapters)	4200rpm	3352×g
		15	4×250ml(Conical bottom)	4200rpm	3352×g
		16	6×250ml(Round bottom)	4200rpm	3352×g
Swing-out rotor body	6	17	Swing-out rotor body 4×750ml shall be used with bucket/basket (Two-in-one rotor combination)
bucket	6	18	750ml round cup/bucket include： Adapter 4×14×15ml(conical bottom) Adapter 4×7×50ml(conical bottom)	4000rpm	3648×g
basket	6	19	Micro-plate 4×2×96 hole	4000rpm	3648×g
Swing-out rotor	8	20	Micro-plate 2×2×96 hole	4000rpm	2267×g
