T2-6B
TOP
Product Features:

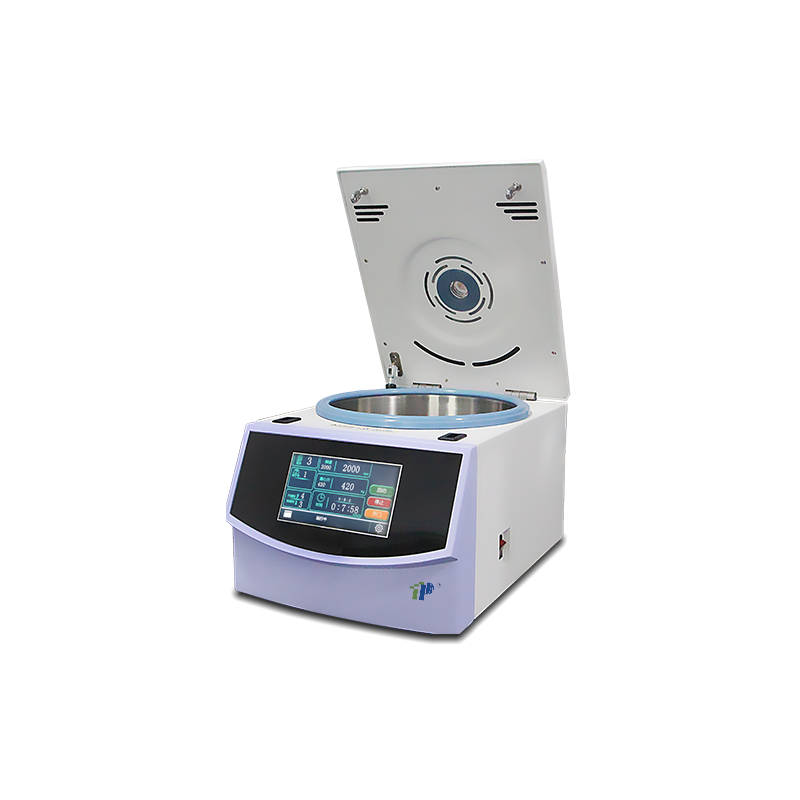

◆ 7 inches high definition touch large display screen,Rich interface,intelligent humanized design function,Make centrifugal operation more simple.
◆ Setting with self definition progress function,with huge store space and centrifugal record search,convenient for use in any time.
◆ Intelligent electronic door lock,one-touch automatic door cover opening and closing,more safe and humanized。
◆ One screen showing the RCF、rotor speed and time etc,and also can revise the parameters when machine in operation,no need stop the machine.
◆ Microcomputer control,direct drive high torque brushless motor,fast start-up,stable operation and longer life time.
◆ Linear drive,10th gear acceleration and deceleration,can select the setting according to different sample attributes,to ensure the better sample separation effect.
◆ Can setting multiple modes start timer/reaching the number of revolutions timing.
◆ Equipped with software upgrade port,can provide newer software upgraded service.
◆ One-piece sample holder,single-hole and double-hole sample holders available,meet the different cell preparation samples for observation and analysis.
Product Features:
◆ 7 inches high definition touch large display screen,Rich interface,intelligent humanized design function,Make centrifugal operation more simple.
◆ Setting with self definition progress function,with huge store space and centrifugal record search,convenient for use in any time.
◆ Intelligent electronic door lock,one-touch automatic door cover opening and closing,more safe and humanized。
◆ One screen showing the RCF、rotor speed and time etc,and also can revise the parameters when machine in operation,no need stop the machine.
◆ Microcomputer control,direct drive high torque brushless motor,fast start-up,stable operation and longer life time.
◆ Linear drive,10th gear acceleration and deceleration,can select the setting according to different sample attributes,to ensure the better sample separation effect.
◆ Can setting multiple modes start timer/reaching the number of revolutions timing.
◆ Equipped with software upgrade port,can provide newer software upgraded service.
◆ One-piece sample holder,single-hole and double-hole sample holders available,meet the different cell preparation samples for observation and analysis.
Technical Parameter:
Model | T2-6B | ||
Max speed | 2000rpm | Support voltage | AC 220±22V 50/60Hz 10A |
Max RCF | 448×g | Total power | 750W |
Max capacity | 6×2×2ml(6 workstation 12 holes) | Noise | ≤ 65dB(A) |
Timer | 1s~59min59s | Dimensions | 466×310×236(mm) |
Revolution/min | ±20r/min | Net weight | 20kg |

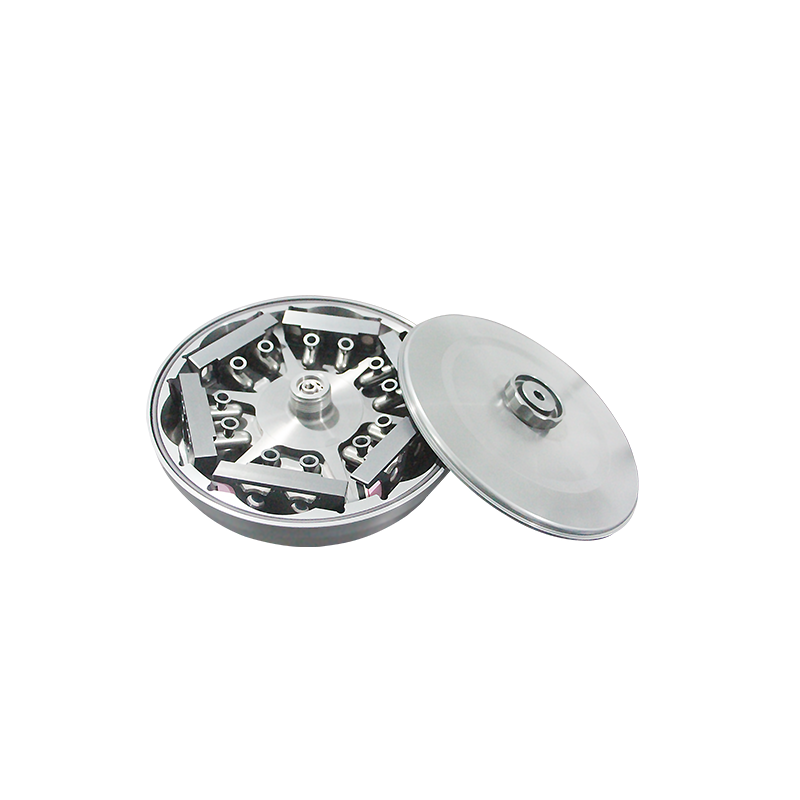

Rotor parameter:
Rotor name | Rotor No. | No. | Capacity | Max speed(r/min) | Max RCF(xg) |
Specialized rotor | 1 | 1 | 6×2×2ml double hole sample holders | 2000rpm | 448xg |
2 | 2 | 6×1×2ml single hole sample holders | 2000rpm | 448xg | |
Note: double holes/single hole holder. attached is table sheet for the use of accessories |
*All products can be customized, designed and produced according to customer requirements.
Accessory and parameters:
Name | No. | Rotor speed (rpm) | RCF (xg) | Capacity | Note |
Smear centrifuge | 1 | 2000rpm | 448xg | Rotor speed 2000rpm | Main machine |
Specialized rotor | 2 | 6 holes | Alloy Aluminum | ||
1.double hole sample holders | 3 | 6*2ml | Alloy Aluminum | ||
sample core | 4 | 6*2*2ml | Alloy Aluminum | ||
absorbent pad | 5 | 2*8mm(cerebrospinal) | Box /100 slices | ||
sample core | 6 | 2ml(ascites) | Alloy Aluminum | ||
absorbent pad | 7 | ¢14mm(ascites) | Box /100 slices | ||
glass slide | 8 | Double hole | Box /50 slices | ||
2.single hole sample holder | 9 | 6*2ml | Glass bottle in bottom | ||
sample glass bottle | 10 | 2ml | Box /6 pieces | ||
absorbent pad | 11 | ¢11mm(cerebrospinal) | Box/100 slices | ||
absorbent pad | 12 | 2*¢14mm(ascites) | Box/100 slices | ||
Glass slide | 13 | Single hole | Box/50 slices | ||
absorbent pad | 14 | ¢8mm | Box/100 slices | ||
single hole sample holder | 15 | 2ml | Bottom seal | ||
single hold sample holder | 16 | 2ml | Side opening |
