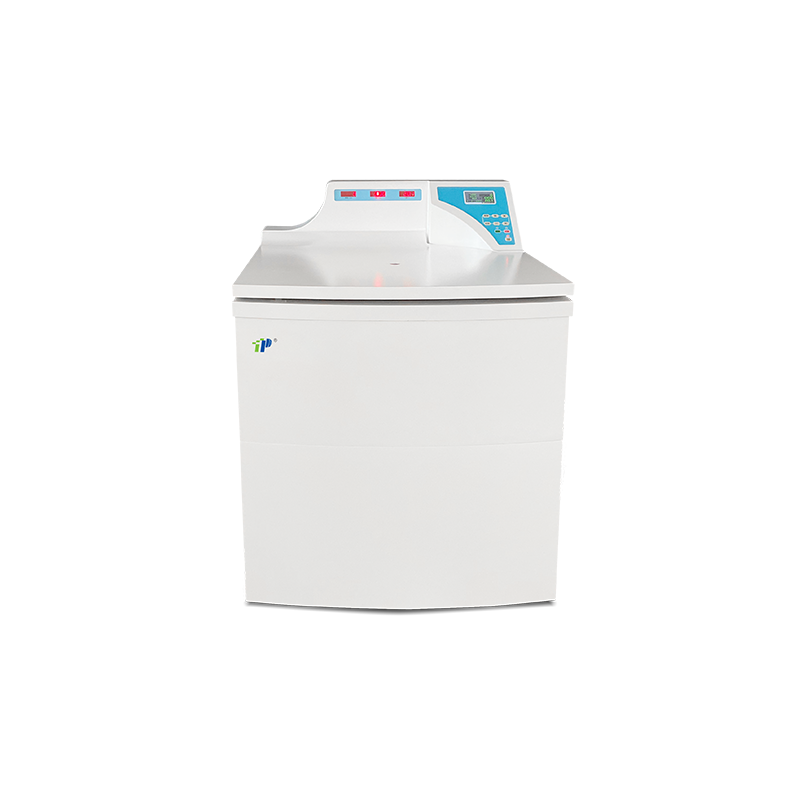

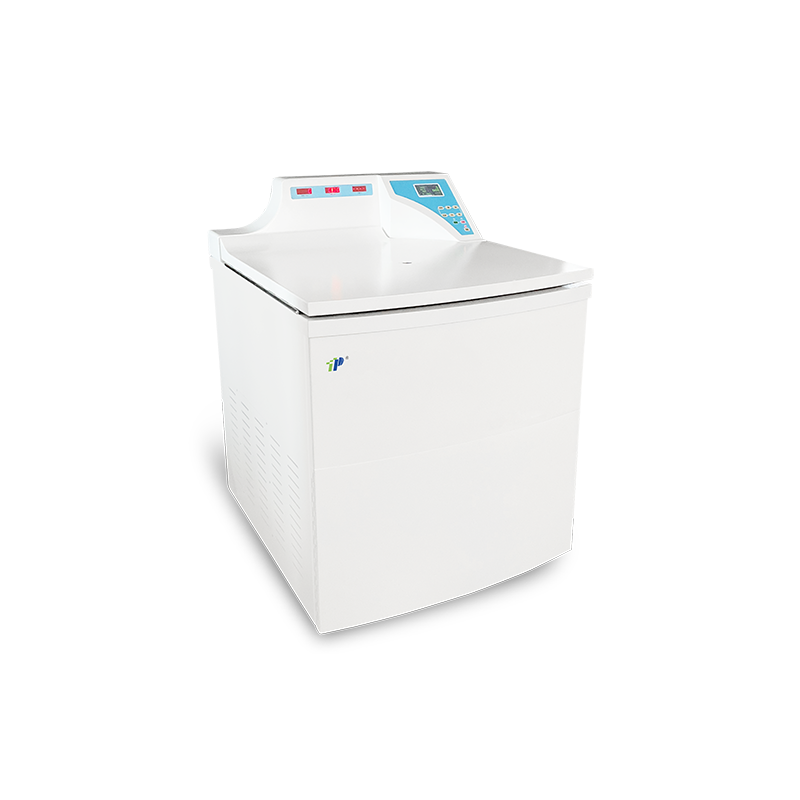

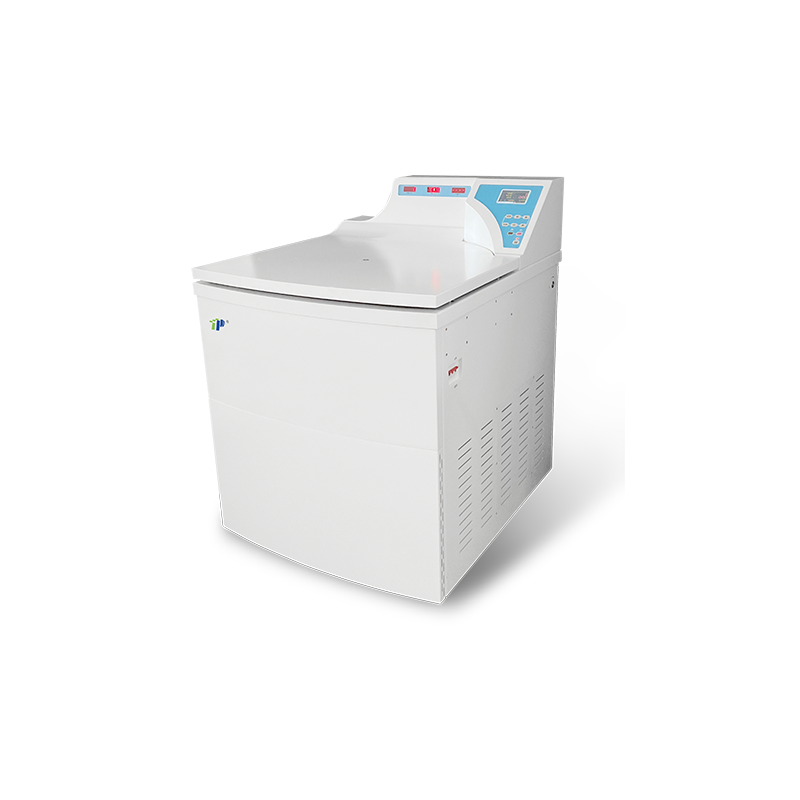

TLM12L
TOP
It is specially designed for use in blood banks, hospitals, biochemistry, biological products, pharmaceutical industries, universities and research institutions. It is also the preferred product for the superhard material diamond micro powder industry, nanomaterials, and other fields, with a separation effect that meets industry standards.
Feature:
1. Power coated housing. Universal castors.
2. Reliable drive system. Converter motor maintenance free.
3. Two motorized lid locks prevent cover opening during centrifugation.
4. Pneumatic spring supports prevent falling of lid.
5. Manually lid open in case of failure or emergency.
6. Pre-cooling during standstill. CFC free refrigeration system.
7. Microprocessor controls all functions: speed, time, temperature, acceleration/deceleration, RCF, program memory, error display.
8. The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.
9. Produced according to national and international safety standards (ISO9001, ISO13485, ISO14001, EN IEC 61010, EN IEC 61326).
10. Optional: Automatic lid opening at the end of run.
11. Optional: Short spin.
12. Optional: Rotor identification.
It is specially designed for use in blood banks, hospitals, biochemistry, biological products, pharmaceutical industries, universities and research institutions. It is also the preferred product for the superhard material diamond micro powder industry, nanomaterials, and other fields, with a separation effect that meets industry standards.
Feature:
1. Power coated housing. Universal castors.
2. Reliable drive system. Converter motor maintenance free.
3. Two motorized lid locks prevent cover opening during centrifugation.
4. Pneumatic spring supports prevent falling of lid.
5. Manually lid open in case of failure or emergency.
6. Pre-cooling during standstill. CFC free refrigeration system.
7. Microprocessor controls all functions: speed, time, temperature, acceleration/deceleration, RCF, program memory, error display.
8. The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.
9. Produced according to national and international safety standards (ISO9001, ISO13485, ISO14001, EN IEC 61010, EN IEC 61326).
10. Optional: Automatic lid opening at the end of run.
11. Optional: Short spin.
12. Optional: Rotor identification.
Technical data:
Model | TLM12L |
Max. RPM/RCF for angle rotor | 8000rpm / 14280×g |
Max. RPM/RCF for swing rotor | 4600rpm / 7080×g |
Max. Capacity for angle rotor | 6×1000ml |
Max. Capacity for swing rotor | 6×2400ml |
Speed Increment | 10rpm |
Speed accuracy | ±20 rpm |
Temp. range | -20℃~+40℃ |
Temp accuracy | ±2℃ |
Timer range | 0~99min50s / 23h59min |
Acc / Dec rates | 12/12 |
Program memory | 99 |
Power supply | AC220/380V 50/60Hz |
Power requirement | 6.2KW |
Noise | <58db |
Display | LCD screen |
Motor | Converter Motor, direct drive |
Net Weight (without rotor) | 525kg |
Machine Dimension(L×W×H) | 860×1010×1180mm |
Rotor List:
Angle Rotor | AA1000 | AF1000 |
Max.Capacity | 6×1000ml | 6×1000ml fibre |
Max. Speed | 8000rpm | 8000rpm |
Max. RCF | 14280×g | 14280×g |
Angle | 67° | 67° |
ØxL(mm) | 99×150mm | 99×150mm |
SA2400 Swing Rotor |
|
|
| ||
Cat. No. | B20630 | B20631 | B20632 | ||
Max.Capacity | 6×2×500ml blood bag | 6×2400ml Oval | 6×2×1000ml | ||
Max. Speed | 4600rpm | 4600rpm | 4200rpm | ||
Max. RCF | 6971×g | 7080×g | 5428×g | ||
ØxL(mm) | - | 116×180×162mm | 98×136mm | ||
Adaptor | A20201 | 6×2×500ml blood bag only | A20102 | 6×2400ml | - |
A20203 | 6×2×500ml blood bag only |
