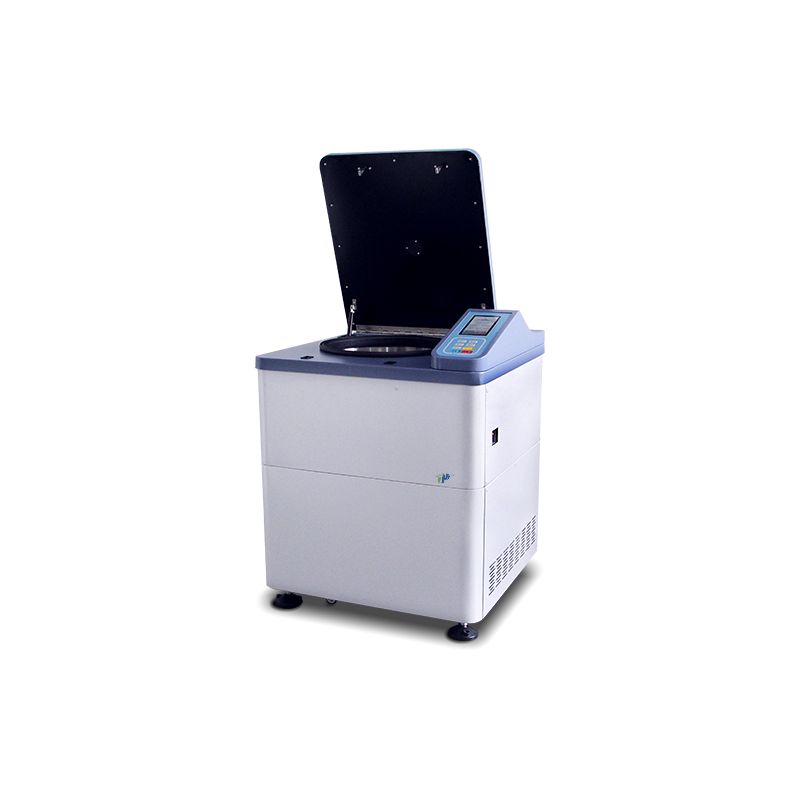

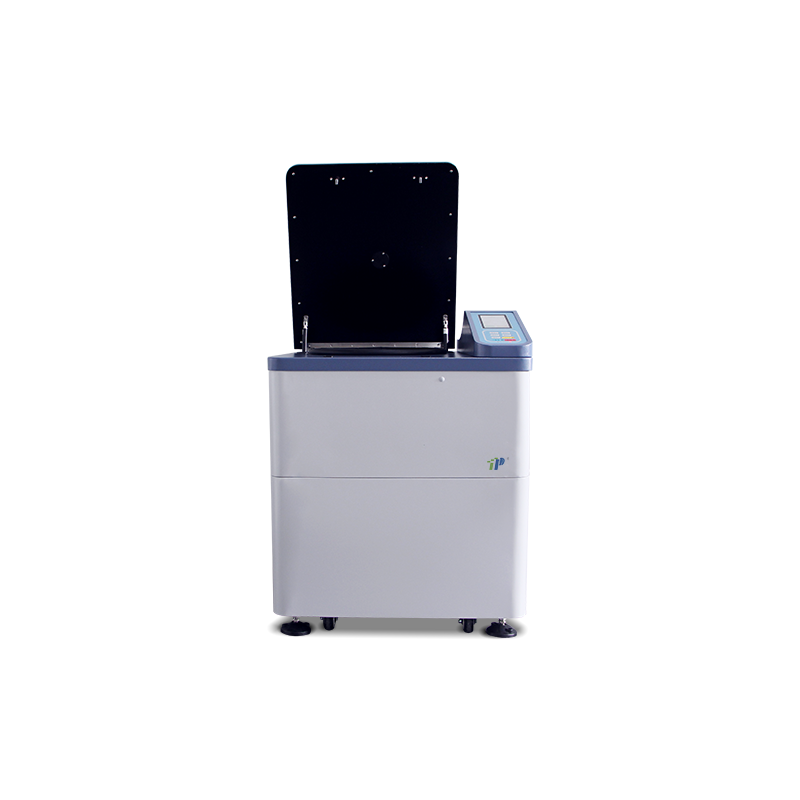

High-Speed Refrigerated Laboratory Centrifuge TDR6C | 6×1000ml Capacity, 6500rpm, -20°C to 40°C Temperature Control

Max Speed: 6500 rpm Max Relative Centrifugal Force (RCF): 6680 × g Max Capacity: 6 × 1000 ml Temperature Range: -20℃ to 40℃ with ±1.0℃ accuracy Noise Level: ≤ 65 dB(A) Intelligent rotor automatic recognition and multiple safety protections (overspeed, overheating, imbalance) Programmable control with 99 stored programs and LCD display
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TDR6C

  • TOP

Product Features:


Intelligent control system

◆ Speed up/down mode can be set, and automatically calculate the RCF.

◆ Program group shortcut key, large storage space, can store 99 groups of program;

◆ Electric door lock can auto open the chamber door  after the centrifugal operation.

◆ 10 gears acceleration /deceleration with linear drive.


Excellent kernel performance

◆ HD large LCD display and the parameters can be revised during operation without shutdown.

◆ Microcomputer control, AC frequency conversion brush-less motor with fast speed and stable operation.

◆ Two modes can be set: start timing/arrival revolution timing。

◆ Eco-Friendly refrigerating system,temperature between -20℃-+40℃.


Careful and safe

◆ With rotor automatic identification system .

◆ Over speed,over heat,unbalance protections with auto lid lock.

◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.


Intimate detail design

◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.

◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.

◆ It is equipped with a rotor cover that can be quickly locked for easy use.

◆ Ergonomic, low opening height, close the centrifuge cover with one press.

◆ Special noise reduction system.


Technical Parameter


Model

TDR6C

Max Speed

6500rpm

Power

3200W

Max RCF

6680×g

Noise Level

≤ 65dB(A)

Max Capacity

6×1000ml

Size

905×755×1075 (mm)

Timer

1s~99h59min59s

Net Weight

325kg

Revolutions/min

±10r/min

Rotor automatic recognition

Yes

Temp Range

-20℃~40℃

Voltage

AC 220±22V 50Hz 30A

Temp Accuracy

±1.0℃

/

/


Rotor parameters

Rotor Name

Rotor NO.

NO.

Capacity

Max Speed(r/min)

Max RCF(×g)

Angle rotor

1

1

6×250ml

6500rpm

6610×g

2

6×300ml

6500rpm

6610×g

2

3

6×500ml

6000rpm

6680×g

Swing-out rotor

3

4

6×1000ml(Round bucket)

4200rpm

5100×g

5

6×1000ml(Square bucket)

4200rpm

5100×g

6

Automatic uncap 168*2~7ml

(Blood collection tube)

4200rpm

5100×g

*  All products can be customized, designed and produced according to customer requirements.
