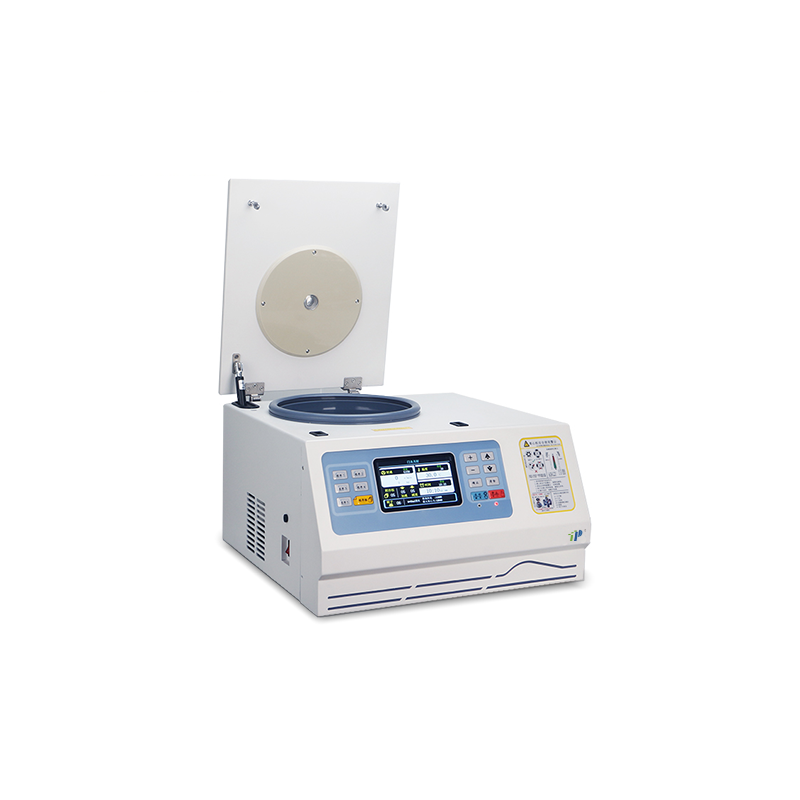

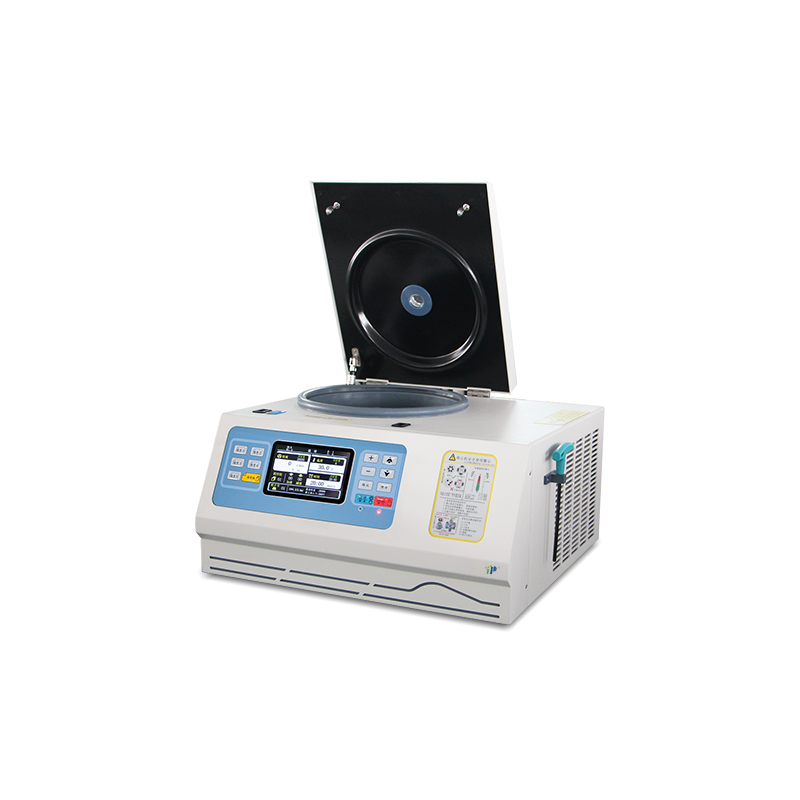

High Speed Table Refrigerated Centrifuge

High-Speed Refrigerated Laboratory Centrifuge Series | Up to 21,000rpm & 32,868×g | Programmable with Automatic Rotor Recognition

Max Speed: 16,500rpm to 21,000rpm across models
Max RCF: 26,145×g to 32,868×g
Max Capacity: 6×50ml to 4×750ml depending on model
Temperature Range: -20℃ to 40℃ with ±1.0℃ accuracy
Timer: 1 second to 99 hours 59 minutes 59 seconds
Features rotor automatic identification, electric lid lock, and 10-level acceleration/deceleration control
Noise level ≤ 60dB (A); steel structure with corrosion-resistant stainless steel chamber

Quantity:
Availability:





Inquire Add to Basket

Model:
TR216C/TR318C/TR320C/TR420C
Brand:
TOP

Product Features：

Intelligent control system

◆ With five groups of optional programs and can store 99 program groups ;

◆ Electric lid lock;

◆ Long press the start/short-time key to realize instantaneous centrifugation.

◆ Up to 10 level acceleration/ deceleration with Linear drive.

Excellent kernel performance

◆ HD large LCD display and the parameters can be revised during operation without shutdown.

◆ Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.

◆ Two modes can be set: start timing/arrival revolution timing.

◆ ECO friendly refrigeration system with Special thermal insulation process.

Careful and safe

◆ With rotor automatic identification system .

◆ Over speed,over heat,unbalance etc protections .

◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.

Intimate detail design

◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.

◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.

◆ It is equipped with a rotor cover that can be quickly locked for easy use.

◆ Ergonomic, low opening height, close the centrifuge cover with one press.

◆ Special noise reduction system ;

Technical Parameter：

Model	TR216C	TR318C	TR320C	TR420C
Max Speed	16500rpm	18000rpm	20000rpm	21000rpm
Max RCF	26145×g	31115×g	31115×g	32868×g
Max Capacity	6×50ml	4×100ml	4×250ml	4×750ml
Timer	1s～99h59min59s	1s～99h59min59s	1s～99h59min59s	1s～99h59min59s
Revolutions/min	±10r/min	±10r/min	±10r/min	±10r/min
Temp Range	-20℃～40℃	-20℃～40℃	-20℃～40℃	-20℃～40℃
Temp Accuracy	±1.0℃	±1.0℃	±1.0℃	±1.0℃
Voltage	AC 220±22V 50Hz 10A	AC 220±22V 50Hz 15A or custom	AC 220±22V 50Hz 15A	AC 220±22V 50Hz 15A or custom
Power	800W	1200W	1200W	1500W
Noise Level	≤ 60dB（A）	≤ 60dB（A）	≤ 60dB（A）	≤ 60dB（A）
Size	610×560×370 (mm)	610×560×370 (mm)	680×660×400mm	730×660×400mm
Net Weight	73kg	73kg	108kg	118kg
Rotor automatic recognition	Yes	Yes	Yes	Yes

Rotor parameters for TR216C：

Rotor Name	Rotor NO.	NO.	Capacity	Max Speed（r/min)	Max RCF(×g)
Angle rotor	1	1	24×1.5/2.0ml	16500rpm	26145×g
	2	2	12×5ml	16000rpm	17344×g
	3	3	32×1.5/2.0ml	14000rpm	19940×g
	4	4	8×8×0.2ml PCR Row	14000rpm	15032×g
	5	5	6×30ml(Round bottom)	13500rpm	17482×g
	6	6	12×10ml	13000rpm	15228×g
	7	7	48×1.5/2.0ml	13000rpm	18327×g
	8	8	6×50ml(Round bottom)	12000rpm	14610×g

Rotor Parameters for TR318C:

Rotor Name	Rotor No.	NO.	Rotor Capacity	Max Speed（r/min)	Max RCF(×g)
Angle rotor	1	1	24×1.5/2.0ml	18000rpm	31115×g
	2	2	12×5ml	16000rpm	17344×g
	3	3	32×1.5/2.0ml	14000rpm	19940×g
	4	4	8×8×0.2ml PCR	14000rpm	15032×g
	5	5	48×1.5/2.0ml	13000rpm	18327×g
	6	6	12×10ml	13000rpm	15228×g
	7	7	6×50ml(Round bottom)	13000rpm	17146×g
	8	8	6×50ml ( Conical/round bottom)	12000rpm	16227×g
	9	9	12×15ml ( Conical bottom)	11000rpm	13730×g
	10	10	4×100ml	11000rpm	14298×g
Swing-out rotor	11	11	24×1.5/2.0ml	13000rpm	16816×g
	12	12	4×100ml	4500rpm	3010×g
	13	13	Micro-plate 2×2×96 hole	4000rpm	2057×g
	14	14	8×50ml( Conical bottom)	4000rpm	2680×g

Rotor parameters for TR320C:

Rotor Name	Rotor NO.	NO.	Capacity	Max Speed （r/min)	Max RCF(×g)
Angle rotor	1	1	16×1.5/2.0ml	20000rpm	30677×g
	2	2	24×1.5/2.0ml	18000rpm	31115×g
	3	3	12x5ml	16000rpm	17344×g
	4	4	12×10ml	16000rpm	23068×g
	5	5	32×1.5/2.0ml	16000rpm	26044×g
	6	6	48×1.5/2.0ml	16000rpm	27762×g
	7	7	12×15ml( Conical bottom)	14000rpm	22241×g
	8	8	6×50ml(Round bottom)	13000rpm	17146×g
	9	9	6×50ml (Conical/round bottom)	12500rpm	17608×g
	10	10	4x100ml	12000rpm	17016×g
	11	11	6×100ml	12000rpm	17548×g
	12	12	8×50ml (Conical/round bottom)	10000rpm	12611×g
	13	13	60×1.5ml	15000rpm	18826×g
	14	14	40×15ml(W)	5000rpm	4919×g
Swing-out rotor	15	15	4×100ml	5000rpm	3717×g
	16	16	4×250ml(Round bucket)	4200rpm	3352×g
	16	17	4×250ml(Square bucket)	4200rpm	3352×g
	17	18	Micro-plate 2x2x96 hole	4200rpm	3352×g

Rotor parameters for TR420C:

Rotor Name	Rotor NO.	NO.	Capacity	Max Speed（r/min)	Max RCF(×g)
Angle rotor	1	1	12×1.5/2.0ml	21000rpm	31061×g
	2	2	12×5ml	18000rpm	21951×g
	3	3	24×1.5/2.0ml	18500rpm	32868×g
	4	4	12×10ml	15000rpm	20274×g
	5	5	48×1.5/2.0ml	15000rpm	24400×g
	6	6	4×100ml	14000rpm	23161×g
	7	7	12×15ml(Conical bottom)	14000rpm	22241×g
	8	8	6×50ml(Round bottom)	14000rpm	19885×g
	9	9	8×8×0.2ml PCR	14000rpm	15032×g
	10	10	6×50ml (Conical/round bottom)	13000rpm	19045×g
	11	11	8×50ml(round type)	12000rpm	15215×g
	12	12	8×50ml (Conical/round bottom)	11000rpm	14088×g
	13	13	6×100ml	11000rpm	14745×g
Swing-out rotor	14	14	4×250ml(Round bottle)	4200rpm	3352×g
		15	4×250ml(Round bottle)/ （with biosafety lid）	4200rpm	3352×g
		16	4×250ml Square bucket (match with adaptors)	4200rpm	3352×g
		17	Auto uncap 2-7ml x 64 (blood collection tube)	4200rpm	3352×g
	15	18	Auto uncap 2-7ml x 104 (blood collection tube)	4200rpm	3510×g
		19	4×500ml round bucket	4200rpm	3510×g
		20	4×500ml round bucket (with biosafety lid)	4200rpm	3510×g
		21	4×500ml Square bucket (match with adaptors)	4200rpm	3510×g
	16	22	4×750ml Round bucket	4200rpm	3648×g
		23	4×750ml Round bucket (with biosafety lid)	4200rpm	3648×g
		24	4x750ml Square bucket (match with adaptors)	4200rpm	3648×g
Swing-out rotor	17	25	Multifunctional 4*750ml swing out rotor Need to be used with hanging bottle and bucket(Two-in-one rotor combination)
Hanging basket		26	750ml round bottle/hanging bottle include： Adapter 4×14×15ml/(Conical bottom) Adapter 4×7×50ml/(Conical bottom)	4200rpm	3648×g
Hanging basket		27	Micro-plate 4×2×96 hole	4200rpm	3648×g
