High Speed Refrigerated Laboratory Centrifuge | 16,500–21,000 rpm, Up to 4×750ml, Brushless Motor

Max Speed: 16,500–21,000 rpm (model-dependent)
Max RCF: Up to 31,115 ×g
Max Capacity: Up to 4 × 750 ml
Timer Range: 1 sec – 99 h 59 min 59 sec
Motor Type: AC frequency conversion brushless motor
Control & Display: Microcomputer control, HD LCD display
Noise Level: ≤ 62 dB(A)

Quantity:
Availability:





Inquire Add to Basket

Model:
T116C / T216C / T318C / T320C / T420C
Brand:
TOP

Product Features：

Intelligent control system

◆ With five groups of optional programs and can store 99 program groups ;

◆ Electric lid lock;

◆ Long press the start/short-time key to realize instantaneous centrifugation.

◆ Up to 10 level acceleration/ deceleration with Linear drive.

Excellent kernel performance

◆ HD large LCD display and the parameters can be revised during operation without shutdown.

◆ Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.

◆ Two modes can be set: start timing/arrival revolution timing.

Careful and safe

◆ With rotor automatic identification system .

◆ Over speed,over heat,unbalance etc protections.

◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.

Intimate detail design

◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.

◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.

◆ It is equipped with a rotor cover that can be quickly locked for easy use.

◆ Ergonomic, low opening height, close the centrifuge cover with one press.

◆ Special noise reduction system ;

Technical Parameter:

Model	T116C	T216C	T318C	T320C	T420C
Max Speed	16500rpm	16500rpm	18000rpm	20000rpm	21000rpm
Max RCF	21615×g	26145×g	31115×g	30677×g	31060×g
Max Capacity	12×5ml	6×50ml	4×100ml	4×250ml	4×750ml
Timer	1s～99h59min59s	1s～99h59min59s	1s～99h59min59s	1s～99h59min59s	1s～99h59min
Revolutions/min	±10r/min	±10r/min	±10r/min	±10r/min	±10r/min
Voltage	AC 220±22V 50Hz 10A or custom	AC 220±22V 50Hz 10A or custom	AC 220±22V 50Hz 15A or custom	AC 220±22V 50Hz 10A or custom	AC 220±22V 50Hz 10A or custom
Power	350W	500W	750W	750W	1000W
Noise Level	≤ 62dB（A）	≤ 62dB（A）	≤ 62dB（A）	≤ 62dB（A）	≤ 62dB（A）
Size	270×390×240 (mm)	360×490×330(mm)	360×490×330(mm)	430×545×400mm	460×580×410mm
Net Weight	21kg	37kg	38kg	50kg	62kg

Rotor Parameter for T116C：

Rotor Name	Rotor NO.	NO.	Capacity	Max Speed（r/min)	Max RCF(×g)
Angle rotor	1	1	16×1.5/2.0ml	16500rpm	20880×g

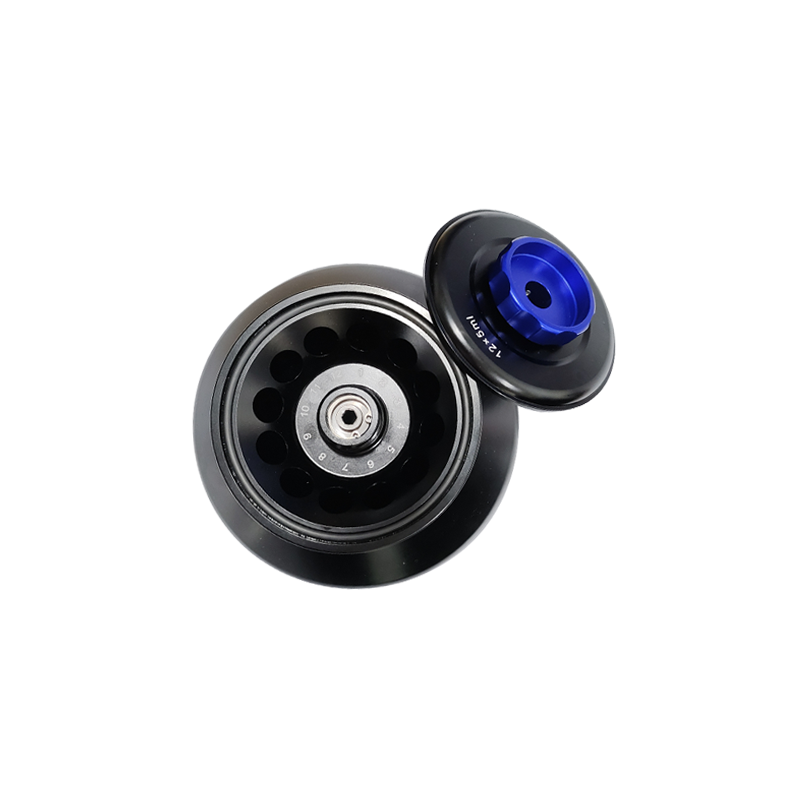

	2	2	12×5ml	16000rpm	17344×g
	3	3	24×1.5/2.0ml	15000rpm	21615×g
	4	4	4×8×0.2ml PCR Row	15000rpm	14866×g
	5	5	8×8×0.2ml PCR Row	14000rpm	15032×g
	6	6	Capillary rotor 24 hole	12000rpm	13845×g

Rotor Parameters for T216C：

Rotor Name	Rotor NO.	NO.	Capacity	Max Speed（r/min)	Max RCF(×g)
Angle rotor	1	1	24×1.5/2.0ml	16500rpm	26145×g
	2	2	12×5ml	16000rpm	17344×g
	3	3	32×1.5/2.0ml	14000rpm	19940×g
	4	4	8×8×0.2ml PCR Row	14000rpm	15032×g
	5	5	6×30ml(Round bottom)	13500rpm	17482×g
	6	6	12×10ml	13000rpm	15228×g
	7	7	48×1.5/2.0ml	13000rpm	18327×g
	8	8	6×50ml(Round bottom)	12000rpm	14610×g

Rotor Parameters for T318C：

Rotor Name	Rotor No.	NO.	Rotor Capacity	Max Speed（r/min)	Max RCF(×g)
Angle rotor	1	1	24×1.5/2.0ml	18000rpm	31115×g
	2	2	12×5ml	16000rpm	17344×g
	3	3	32×1.5/2.0ml	14000rpm	19940×g
	4	4	8×8×0.2ml PCR	14000rpm	15032×g
	5	5	48×1.5/2.0ml	13000rpm	18327×g
	6	6	12×10ml	13000rpm	15228×g
	7	7	6×50ml(Round bottom)	13000rpm	17146×g
	8	8	6×50ml( Conical/round bottom)	12000rpm	16227×g
	9	9	12×15ml (Conical bottom)	11000rpm	13730×g
	10	10	4×100ml	11000rpm	14298×g
Swing-out rotor	11	11	24×1.5/2.0ml	13000rpm	16816×g
	12	12	4×100ml	4500rpm	3010×g
	13	13	Micro-plate 2×2×96 hole	4000rpm	2057×g
	14	14	8×50ml(Conical bottom)	4000rpm	2680×g

Rotor parameters for T320C：

Rotor Name	Rotor NO.	NO.	Capacity	Max Speed （r/min)	Max RCF(×g)
Angle rotor	1	1	16×1.5/2.0ml	20000rpm	30677×g
	2	2	24×1.5/2.0ml	17500rpm	29410×g
	3	3	12x5ml	16000rpm	17344×g
	4	4	12×10ml	14000rpm	17660×g
	5	5	32×1.5/2.0ml	14000rpm	19940×g
	6	6	48×1.5/2.0ml	14000rpm	21255×g
	7	7	6×50ml/round bottom	13000rpm	17145×g
	8	8	6×50ml ( Conical/round bottom)	12000rpm	16227×g
	9	9	12×15ml/ Conical bottom	12000rpm	16340×g
	10	10	4x100ml	12000rpm	17016×g
	11	11	6×100ml	11000rpm	14757×g
	12	12	8×50ml ( Conical/round bottom)	10000rpm	12610×g
	13	13	60×1.5ml(swing-out rotor)	14000rpm	16400×g
	14	14	40×15ml(W)	5000rpm	4919×g
Swing-out rotor	15	15	4×100ml	4500rpm	3010×g
	16	16	4×250ml(Round bucket)	4200rpm	3352×g
	16	16	4×250ml(Square bucket)	4200rpm	3352×g
	17	17	Micro-plate 2x2x96 hole	4200rpm	2267×g

Rotor parameters for T420C：

Rotor Name	Rotor NO.	NO.	Capacity	Max Speed（r/min)	Max RCF(×g)
Angle rotor	1	1	12×1.5/2.0ml	21000rpm	31061×g
	2	2	12×5ml	18000rpm	21950×g
	3	3	24×1.5/2.0ml	16000rpm	24585×g
	4	4	12×10ml	15000rpm	20274×g
	5	5	48×1.5/2.0ml	15000rpm	24440×g
	6	6	4×100ml	14000rpm	23160×g
	7	7	6×50ml(Round bottom)	13000rpm	19177×g
	8	8	8×8×0.2ml PCR	13000rpm	19045×g
	9	9	12×15ml(Conical bottom)	14000rpm	15032×g
	10	10	6×50ml(Conical/round bottom)	13000rpm	19045×g
	11	11	8×50ml(Round bottom)	12000rpm	15215×g
	12	12	8×50ml(Conical/round bottom)	11000rpm	14088×g
	13	13	6×100ml	11000rpm	14745×g
Swing-out rotor	14	14	4×250ml(Round bucket)	4200rpm	3352×g
		15	4×250ml(Round bucket)/ （with biosafety lid）	4200rpm	3352×g
		16	4×250ml(Square bucket)	4200rpm	3352×g
		17	Auto uncap 64×2-7ml(blood collection tube)	4200rpm	3352×g
	15	18	Auto uncap 104×2-7ml(blood collection tube)	4200rpm	3510×g
		19	4×500ml(Round bucket)	4200rpm	3510×g
		20	4×500ml(Round bucket)/ （with biosafety lid）	4200rpm	3510×g
		21	4×500ml(Square bucket)	4200rpm	3510×g
	16	22	4×750ml(Round bottom)	4200rpm	3648×g
		23	4×750ml(Round bottom)/ （with biosafety lid）	4200rpm	3648×g
		24	4×750ml(Square bucket)	4200rpm	3648×g
Swing-out rotor	17	25	4×750ml swing out rotor body	Need to used with as below optional bucket(2-in-1 rotor combination)
Bucket		26	4×750ml(Round bottom)	4200rpm	3648×g
Bucket		27	Micro-plate 4×2×96 hole	4200rpm	3648×g
