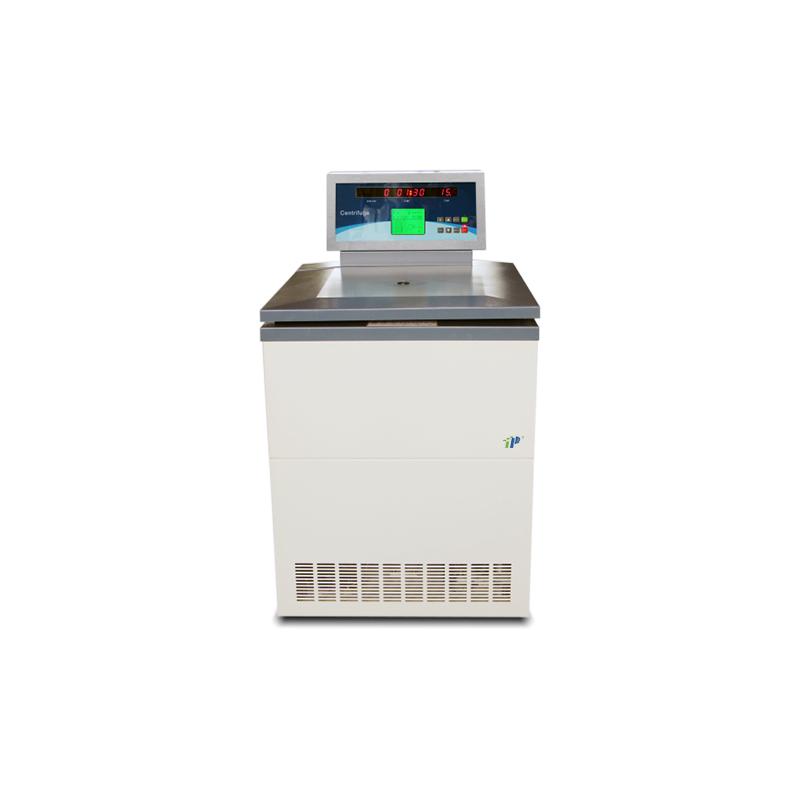

High Speed Refrigerated Floor Standing Centrifuge | Up to 25,000 rpm, 64,800×g, Large Capacity Lab Centrifuge

Max Speed / RCF: up to 25,000 rpm, 64,800×g (model-dependent)
Max Capacity: up to 6×1000ml or 4×1000ml swing-out rotor
Temperature Control: -20℃ to 40℃, accuracy ±1.0℃
Drive System: Brushless frequency conversion motor, rotor auto-recognition
Programs: 99 storage groups, parameters editable during operation
Safety: Overspeed, overheat, imbalance protection, auto lid lock
Noise Level: ≤65 dB(A), with advanced noise reduction system

Quantity:
Availability:





Inquire Add to Basket

Model:
TDR521C / TDR525C / TDR610C
Brand:
TOP

Product Features:

Intelligent control system

◆ High compatibility with multiple rotors.

◆ RCF and speed separately and switching free,automatically calculate RCF.

◆ Up to 99 program groups and parameters can be revised during operation without stopping.

◆ The electric door lock can choose whether to open the chamber door automatically after the centrifugal operation

Excellent kernel performance

◆ HD large LCD display and the parameters can be revised during operation without shutdown.

◆ Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.

◆ 10 gears acceleration /deceleration with linear drive.

◆ Two modes can be set: start timing/arrival revolution timing.

◆ Energy-efficient ECO friendly refrigeration system with special thermal insulation inside the machine .

Careful and safe

◆ With rotor automatic identification system .

◆ Over speed,over heat,unbalance protections with auto lid lock.

◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.

Intimate detail design

◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.

◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.

◆ It is equipped with a rotor cover that can be quickly locked for easy use.

◆ Ergonomic, low opening height, close the centrifuge cover with one press.

◆ Special noise reduction system.

Technical Parameter：

Model	TDR521C	TDR525C	TDR610C
Max Speed	21000rpm	25000rpm	10000rpm
Max RCF	47580×g	64800×g	18300×g
Max Capacity	4×750ml	4×1000ml	6×1000ml
Timer	1s～99h59min59s	1s～99h59min59s	1s～99h59min59s
Revolutions/min	±10r/min	±10r/min	±10r/min
Temp Range	-20℃～40℃	-20℃～40℃	-20℃～40℃
Temp Accuracy	±1.0℃	±1.0℃	±1.0℃
Voltage	AC 220±22V 50Hz 35A	AC 220±22V 50Hz 35A	AC 220±22V 50Hz 35A
Power	3500W	4500W	4500W
Noise Level	≤ 65dB（A）	≤ 65dB（A）	≤ 65dB（A）
Size	815×735×1060 (mm)	815×735×1060 (mm)	730×835×1230 (mm)
Net Weight	260kg	260kg	332kg
Rotor automatic recognition	Yes	Yes	Yes

Rotor parameters for TDR521C:

Rotor Name	Rotor NO.	NO.	Rotor Capacity	Max Speed（r/min)	Max RCF(×g)

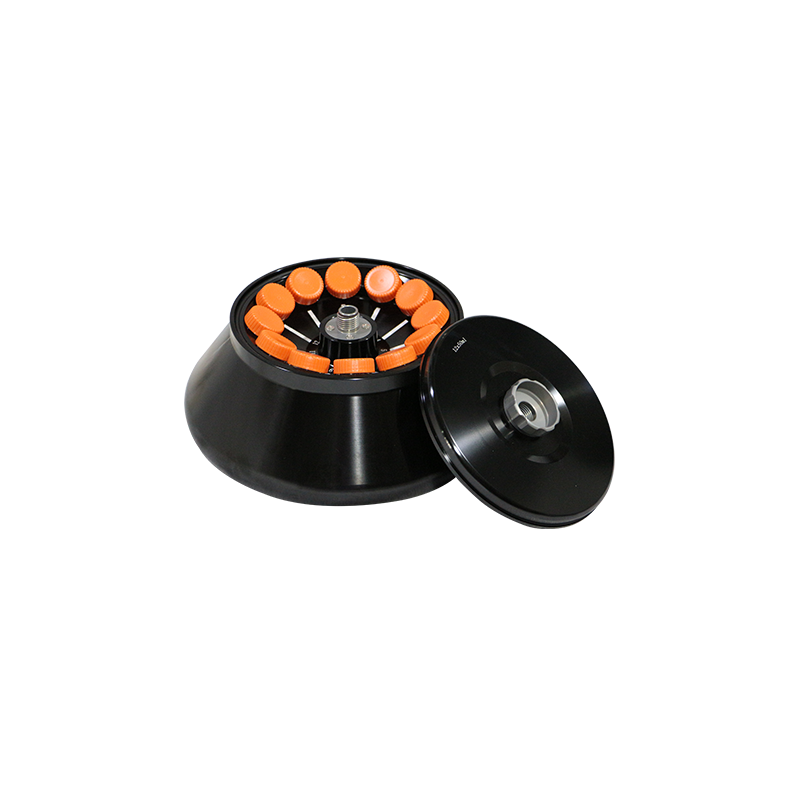

Angle rotor	1	1	16×10ml	21000rpm	47580×g
	2	2	24*1.5/2ml	21000rpm	45723xg
	3	3	6×50ml(Round bottom)	20000rpm	43000×g
	4	4	6×50ml (Conical bottom)	18000rpm	33506×g
	5	5	12×15ml (Conical bottom)	16000rpm	29050×g
	6	6	8×50ml(Round bottom)	15000rpm	27720×g
	7	7	4×250ml	14000rpm	29440×g
	8	8	8×100ml	13000rpm	19830×g
	9	9	12×50ml (Conical/round bottom)	12000rpm	22135×g

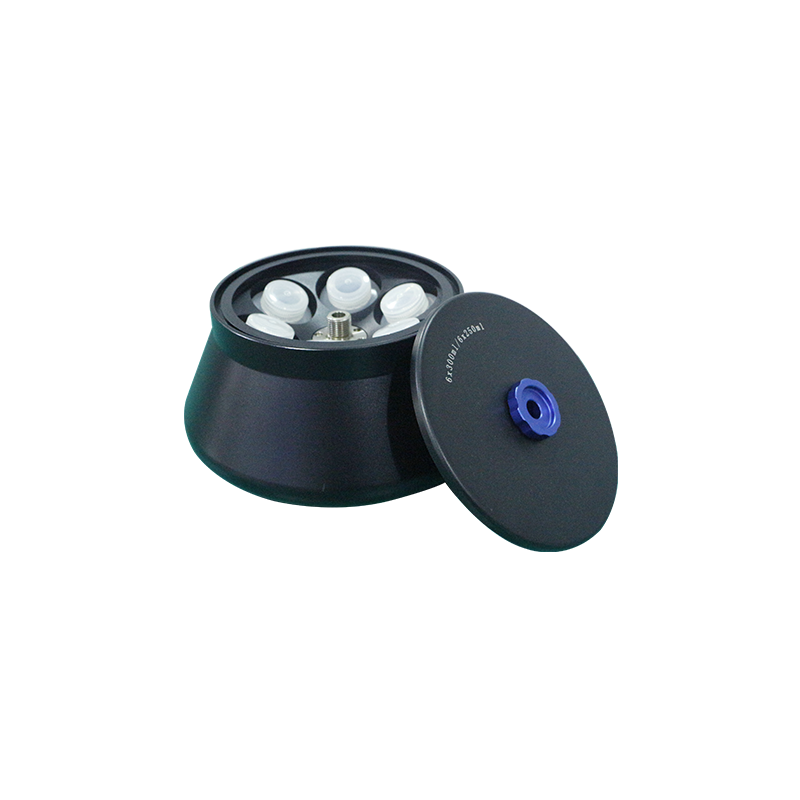

	10	10	6×250ml	12000rpm	22470×g
	11	11	6×300ml	10000rpm	18500×g
	12	12	6×500ml	9000rpm	14400×g
Swing-out rotor	13	10	4x750ml	4000rpm	3580xg

Rotor parameters for TDR525C：

Rotor Name	Rotor NO.	NO.	Rotor Capacity	Max Speed（r/min)	Max RCF(×g)
Angle rotor	1	1	24×1.5/2.0ml(titanium alloy)	25000rpm	64800×g
	2	2	18×10ml	23000rpm	60460×g
	3	3	8×50ml Round bottom（titanium alloy）	21000rpm	52356×g
	4	4	8×50ml(Round bottom)	20000rpm	46420×g
	4	5	Carbon Fiber 8×50ml(Conical/Round bottom)	20000rpm	46420×g
	5	6	6×50ml(Conical/Round bottom）	18000rpm	33506×g
	5	7	Carbon Fiber 6×50ml(Conical/Round bottom）	18000rpm	33506×g
	6	8	12×15ml Conical bottom	16000rpm	29050×g
	7	9	6×250ml	14000rpm	30074×g
	7	10	Carbon Fiber 6×250ml	14000rpm	30074×g
	8	11	8×100ml	13000rpm	19830×g
	9	12	12×50ml (Conical/Round bottom）	12000rpm	22135×g
	10	13	6×500ml	10000rpm	17700×g
	10	14	Carbon Fiber 6×500ml	10000rpm	17700×g
	11	15	4×1000ml	8000rpm	12040×g
	11	16	Carbon Fiber 4×1000ml	8000rpm	12040×g

Rotor parameters for TDR610C:

Rotor Name	Rotor NO.	NO.	Capacity	Max Speed（r/min)	Max RCF(×g)
Angle rotor	1	1	6×250ml(titanium alloy)	10000rpm	18300×g
	1	2	6×300ml(titanium alloy)	10000rpm	18300×g
	2	3	6×500ml	8000rpm	11620×g
	3	4	6×1000ml	8000rpm	15526×g
	3	5	6×1000ml carbon fiber	8000rpm	15526×g
Swing-out rotor	4	6	4×1000ml	4200rpm	4430×g
Swing-out rotor	5	7	6×1000ml	4200rpm	5100×g
