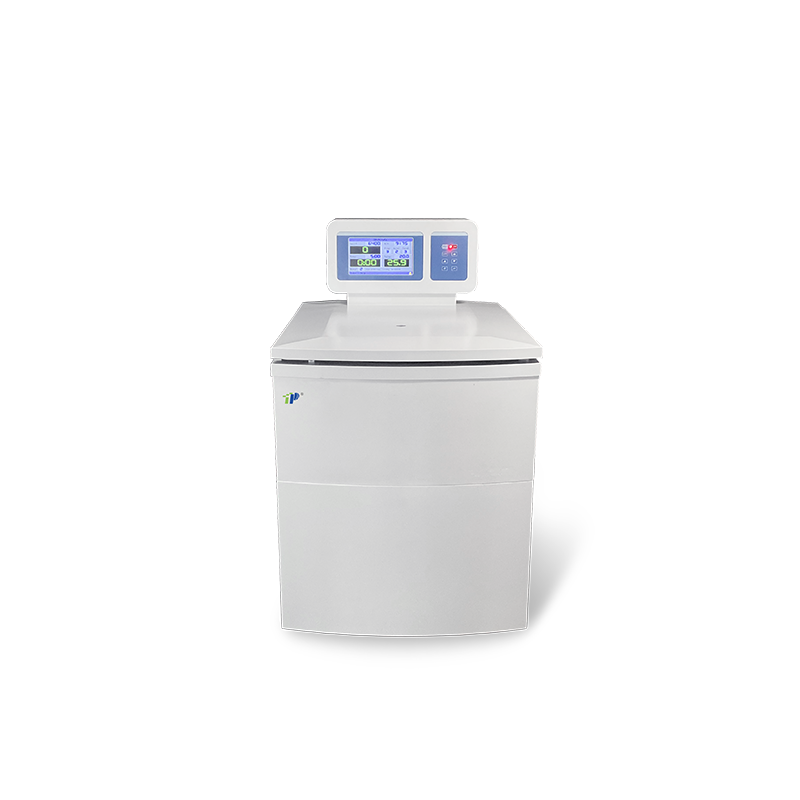

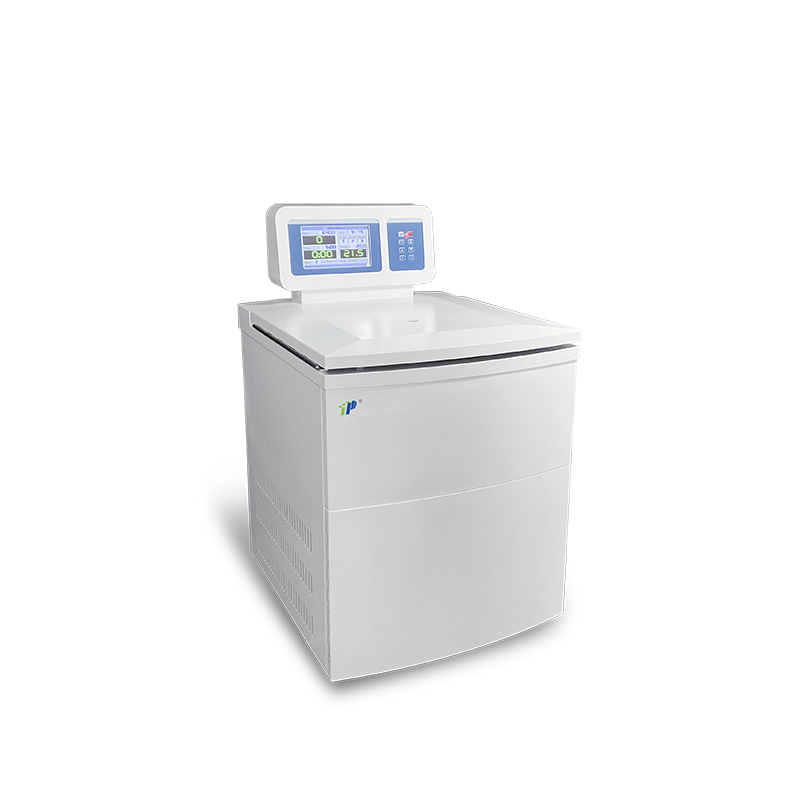

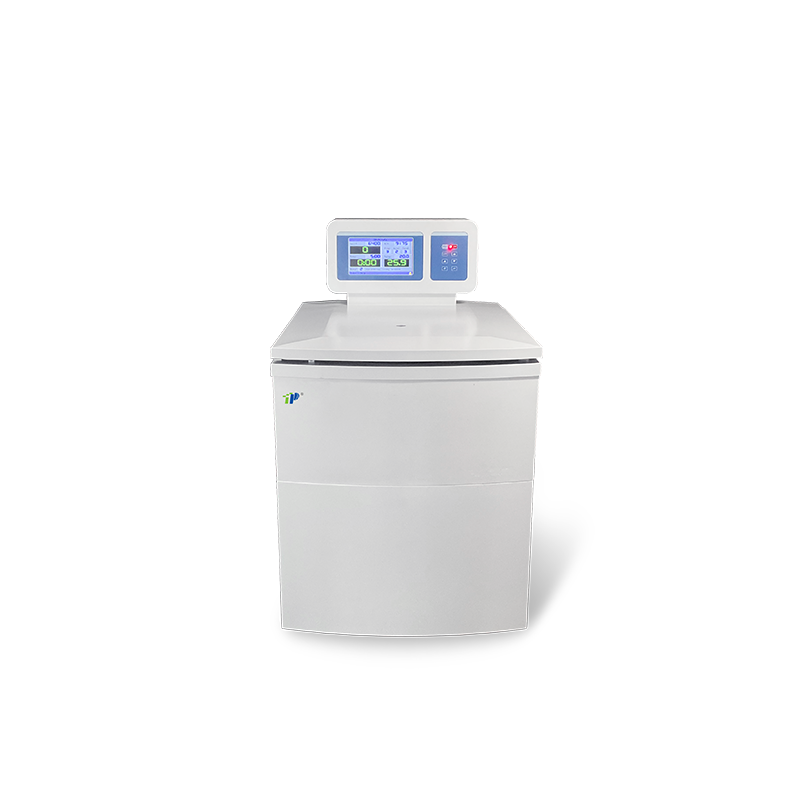

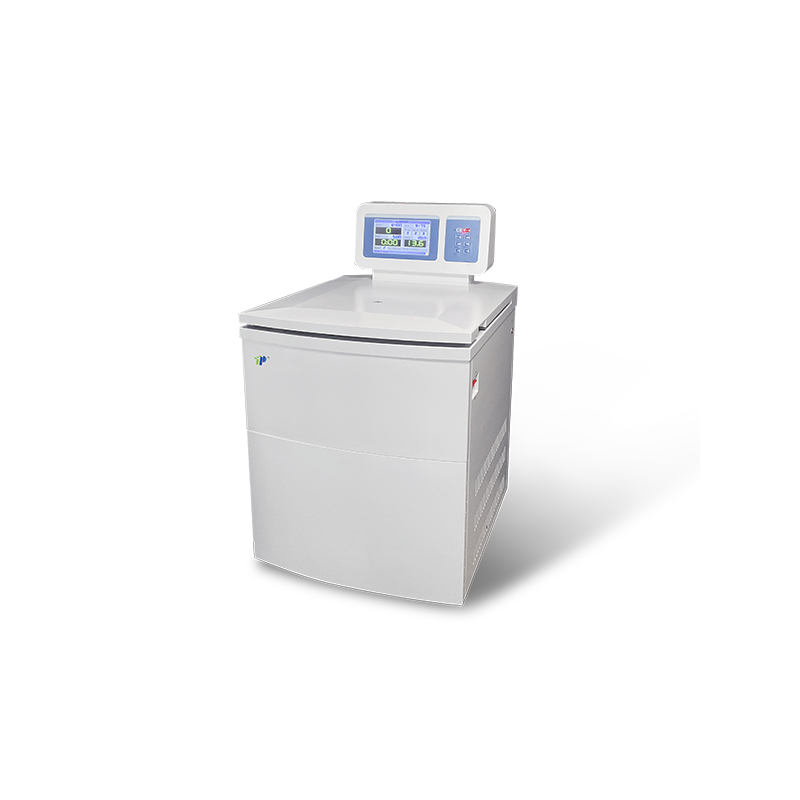

High-Speed Refrigerated Centrifuge TZ-8M with 12,000 RPM, 6x1000ml Capacity, Precise Temperature Control

Max Speed: 12,000 rpm / Max RCF: 24,187 × g
Max Capacity: 6 × 1000 ml (angle rotor)
Temperature Range: -20℃ to +40℃ with ±2℃ accuracy
Speed Increment: 10 rpm, Speed Accuracy: ±20 rpm
Power: AC 220V, 6.2 KW; Noise Level: <58 dB
Dimensions (L×W×H): 730 × 830 × 1230 mm; Net Weight: 318 kg

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TZ-8M

  • TOP

It is widely used in bioengineering, biological engineering, Genetic engineering, immunology. It is suitable for the separation and purification of radioimmunoassay, water analysis, biochemistry, pharmaceutical and blood products.


Feature:

1. Power coated housing. Universal castors.

2. Reliable drive system. Converter motor maintenance free.

3. Motorized lid locks prevent cover opening during centrifugation.

4. Pneumatic spring supports prevent falling of lid.

5. Manually lid open in case of failure or emergency.

6. Pre-cooling during standstill. CFC free refrigeration system.

7. Microprocessor controls all functions: speed, time, temperature, acceleration/deceleration, RCF, program memory, error display.

8. RPM/RCF adjustable along with the run and value calculating automatically.

9. The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.

10. Produced according to national and international safety standards (ISO9001, ISO13485, ISO14001, EN IEC 61010, EN IEC 61326).

11. Optional: Automatic lid opening at the end of run.

12. Optional: Short spin.

13. Optional: Rotor identification.


Technical data:

Model

TZ-8M

Max. RPM/RCF for angle rotor

12000rpm / 24187×g

Max. Capacity for angle rotor

6×1000ml

Speed Increment

10rpm

Speed accuracy

±20 rpm

Temp. range

-20℃~+40℃

Temp accuracy

±2℃

Timer range

0~99min50s / 23h59min

Acc / Dec rates

12/12

Program memory

99

Power supply

AC220V 50/60Hz

Power requirement

6.2KW

Noise

<58db

Display

LCD screen

Motor

Converter Motor, direct drive

Net weight (without rotor)

318kg

Machine Dimension(L×W×H)

730×830×1230mm


Rotor List

Angle Rotor

AA1000

AF1000

AAH500

AF6500

AA6250

Max.Capacity

6×1000ml

6×1000ml fibre

6×500ml

6×500ml fibre

6×250ml

Max. Speed

8000rpm

9000rpm

10000rpm

10000rpm

12000rpm

Max. RCF

14280×g

18073×g

18519×g

18519×g

24187×g

Angle

67°

67°

66°

66°

60°

ØxL(mm)

99×150mm

99×150mm

70.5×145mm

70.5×145mm

63×116mm
