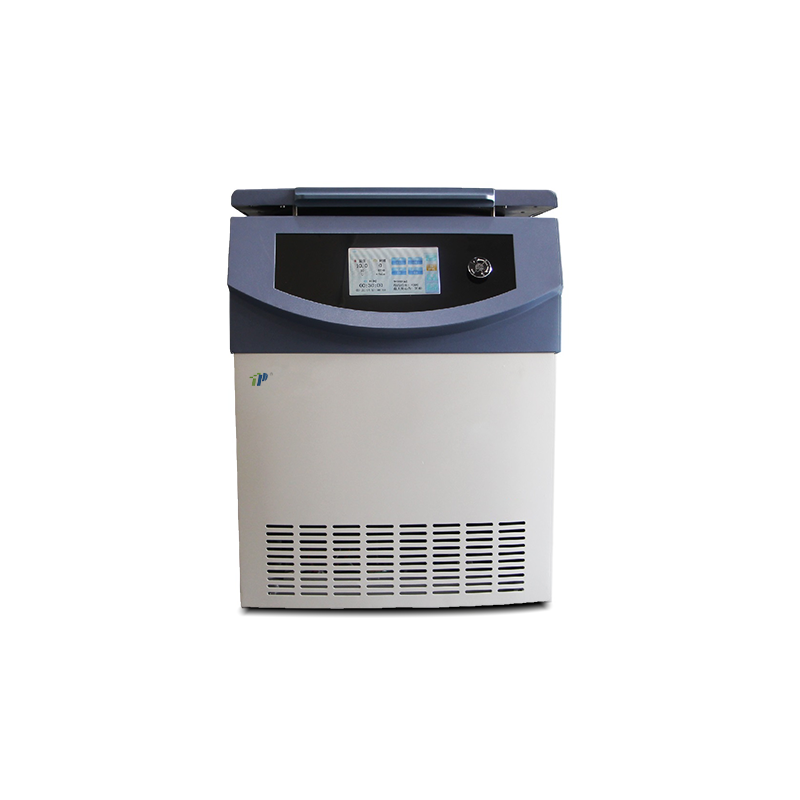

High-Speed Refrigerated Centrifuge TR16D | 16000 rpm, 4×1000ml, Automatic Rotor Recognition

You are here: home » Products » Centrifuges » High Speed Centrifuges » High-Speed Refrigerated Centrifuge TR16D | 16000 rpm, 4×1000ml, Automatic Rotor Recognition

Product Category

Floor High Speed Refrigerated Centrifuge

High-Speed Refrigerated Centrifuge TR16D | 16000 rpm, 4×1000ml, Automatic Rotor Recognition

Max Speed: 16,000 rpm / Max RCF: 27,762 × g
Max Capacity: 4 × 1000 ml (Swing-out rotor)
Temperature Range: -20℃ ~ 40℃, accuracy ±1.0℃
Noise Level: ≤ 65 dB(A) with unique noise reduction system
Motor Type: High torque variable frequency, maintenance-free
Rotor Recognition: Fully automatic rotor identification
Timer Range: 1 sec ~ 99 h 59 min 59 sec

Quantity:
Availability:





Inquire Add to Basket

Model:
TR16D
Brand:
TOP

Product Features：

◎ 3D HD LCD full touch screen plus multi-function knob Home key .

◎ 15 kinds of accelerate and decelerate control.

◎ The user can set the password to lock the host or parameters to prevent misoperation.

◎ One key precooling and instantaneous centrifugation functions are provided.

◎ Can store 99 groups of program , 99 use records and fault records can be traced.

◎ Two timing modes are available, starting timing and reaching speed timing.

◎ High torque variable frequency motor, free of maintenance.

◎ Ultra quiet refrigeration compressor unit, the temperature can be controlled below - 5 ℃ under the upper limit speed.

◎ With Food grade integrated silicone sealing ring and high quality hydraulic rod.

◎ Full automatic identification system and electronic self-priming door lock.

◎ The humanized design is convenient and quick to operate, the parameter setting is directly digital input, and the intelligent status prompt is accurate to one digit.

◎ Over speed, over temperature, over current, over voltage, and over temperature etc protection functions.

◎ Unique noise reduction system.

Floor High Speed Refrigerated Centrifuge 10000 RPM refrigerated floor centrifuge Industrial refrigerated centrifuge Large volume high speed centrifuge 16000 RPM refrigerated floor centrifuge -20°C to +40°C refrigerated centrifuge 5000ml capacity high speed centrifuge Low noise floor standing centrifuge Floor centrifuge vs benchtop refrigerated centrifuge How to choose a floor refrigerated centrifuge

Related Products

High-Speed Refrigerated Laboratory Centrifuge | 6000–20000 rpm, -60℃ to 40℃, Multiple Rotor Options

High-Speed PRP Centrifuge TF-1 for Fat Purification and Orthopedic Applications | 5000 rpm, Multiple Rotor Options

Non-refrigerated Benchtop Capillary Centrifuge

High-Speed Clinical Centrifuge TG12 – 12000 rpm, 24-Sample Capacity, LCD Display

TB-12 Mini Centrifuge | 12000rpm High-Speed Laboratory Micro Centrifuge for PCR Tubes and Micro Samples

TG16W Non-refrigerated Benchtop High Speed Centrifuge

High Speed Microcentrifuge TG16W, 16000 rpm, 12 × 2 mL / 5 mL Tube Capacity

Non-refrigerated Benchtop Low Speed Centrifuge

High-Speed Laboratory Centrifuge 4000 rpm with Microprocessor Control for Biochemical and Pharmaceutical Applications

High-Speed Refrigerated Laboratory Centrifuge 5000 rpm, 4×400 ml Swing Rotor, Microprocessor Control, ISO Certified

Refrigerated Benchtop Low Speed Centrifuge

High-Speed Refrigerated Laboratory Centrifuge TZ-5MT / TDL5M – 5500rpm, LCD Touch Screen, Large Capacity

High Speed Refrigerated Centrifuge with Angle & Swing Rotors, 6000 rpm, 50 ml × 6, LCD Display, Low Noise

High Speed Laboratory Centrifuge TD6 Series – 6000 rpm, Angle & Swing Rotors, 4×500 ml Max Capacity

T3H16R1 Refrigerated Benchtop High Speed Centrifuge

High-Speed Refrigerated Microcentrifuge 16000rpm for PCR & Molecular Biology | Compact Lab Centrifuge for 1.5ml, 2.2ml, 5ml Tubes

TG16000 Non-refrigerated Benchtop High Speed Centrifuge

High Speed Refrigerated Laboratory Centrifuge 16000rpm with Touch Screen and Rotor Recognition for Biotech & Clinical Use

TGL-1600R Bench-Top High-Speed Freezing Centrifuge

TGL-R Series Refrigerated High Speed Microcentrifuge with LCD Display and Multiple Rotor Options

Compact Microcentrifuge with Brushless Motor | 12,000 rpm | Low Noise & High Precision

Capillary Tube Blood Centrifuge TGL-12M – 12000rpm Hematocrit Microcentrifuge for Lab Use

High-Speed Refrigerated Desktop Centrifuge | 10000–18500 rpm | Lab & Clinical Use

Non-refrigerated Benchtop High Speed Centrifuge

High-Speed Laboratory Centrifuge TG21000 with 21,000 RPM, 32,898×g RCF, Touchscreen Control & Safety Features

TGL16MB Bench-Top Refrigerated Centrifuge for Molecular Diagnostics & Biological Research, 16000 RPM High-Speed Microcentrifuge

High Speed Refrigerated Microcentrifuge TGL-20MB with Touchscreen, 20,000 RPM, -20°C to 40°C Temperature Control, 4×100ml Capacity for Medical & Biological Research

Refrigerated Benchtop High Speed Centrifuge

High-Speed Refrigerated Centrifuge 21000 RPM with Touch Screen & Large Capacity for Medical and Biotech Labs

Model	TR16D
Max Speed	16000rpm	Voltage	AC 220±22V 50Hz 20A or custom
Max RCF	27762×g	Power	2300W
Max Capacity	4×1000ml	Noise Level	65dB（A）
Timer	1s~99h59min59s	Size	585×765×820mm
Revolutions/min	±10r/min	Net Weight	155Kg
Temp Range	-20℃~40℃	Rotor automatic recognition	Yes
Temp Accuracy	±1.0℃	/	/

Rotor Name	Rotor NO.	NO.	Capacity	Max Speed（r/min)	Max RCF(×g)
Angle rotor	1	1	48×1.5/2.0ml（Double row）	16000rpm	27762×g
	2	2	30×1.5/2.0ml（Single row）	15500rpm	26859×g
	3	3	18×5ml（Single row）	15000rpm	22010×g
	4	4	8×50ml(Conical/round bottom)	12000rpm	18160×g
	5	5	6×100ml	11000rpm	14745×g
	6	6	12×50ml(Conical/round bottom)	10000rpm	15383×g
	7	7	6×250ml	10000rpm	15093×g
Swing-out rotor	8	8	4×1000ml	4200rpm	3940×g
Adapter	8	a	Micro-plate basket 4×2×96 hole	4200rpm	3940×g
		b	4×10×50ml(Conical/round bottom)
		c	4×24×15ml(Conical/round bottom)
		d	4×750ml (Round bottom)
		e	4×500ml (Round bottom)
		f	4×500ml (Conical bottom)
		g	4×250ml (Conical bottom)
		h	8×250ml (round bottom)
		i	140×10ml(blood collection tube）
		j	196×2-7ml(blood collection tube）

Model	TR16D
Max Speed	16000rpm	Voltage	AC 220±22V 50Hz 20A or custom
Max RCF	27762×g	Power	2300W
Max Capacity	4×1000ml	Noise Level	65dB（A）
Timer	1s~99h59min59s	Size	585×765×820mm
Revolutions/min	±10r/min	Net Weight	155Kg
Temp Range	-20℃~40℃	Rotor automatic recognition	Yes
Temp Accuracy	±1.0℃	/	/

Rotor Name	Rotor NO.	NO.	Capacity	Max Speed（r/min)	Max RCF(×g)
Angle rotor	1	1	48×1.5/2.0ml（Double row）	16000rpm	27762×g
	2	2	30×1.5/2.0ml（Single row）	15500rpm	26859×g
	3	3	18×5ml（Single row）	15000rpm	22010×g
	4	4	8×50ml(Conical/round bottom)	12000rpm	18160×g
	5	5	6×100ml	11000rpm	14745×g
	6	6	12×50ml(Conical/round bottom)	10000rpm	15383×g
	7	7	6×250ml	10000rpm	15093×g
Swing-out rotor	8	8	4×1000ml	4200rpm	3940×g
Adapter	8	a	Micro-plate basket 4×2×96 hole	4200rpm	3940×g
		b	4×10×50ml(Conical/round bottom)
		c	4×24×15ml(Conical/round bottom)
		d	4×750ml (Round bottom)
		e	4×500ml (Round bottom)
		f	4×500ml (Conical bottom)
		g	4×250ml (Conical bottom)
		h	8×250ml (round bottom)
		i	140×10ml(blood collection tube）
		j	196×2-7ml(blood collection tube）
