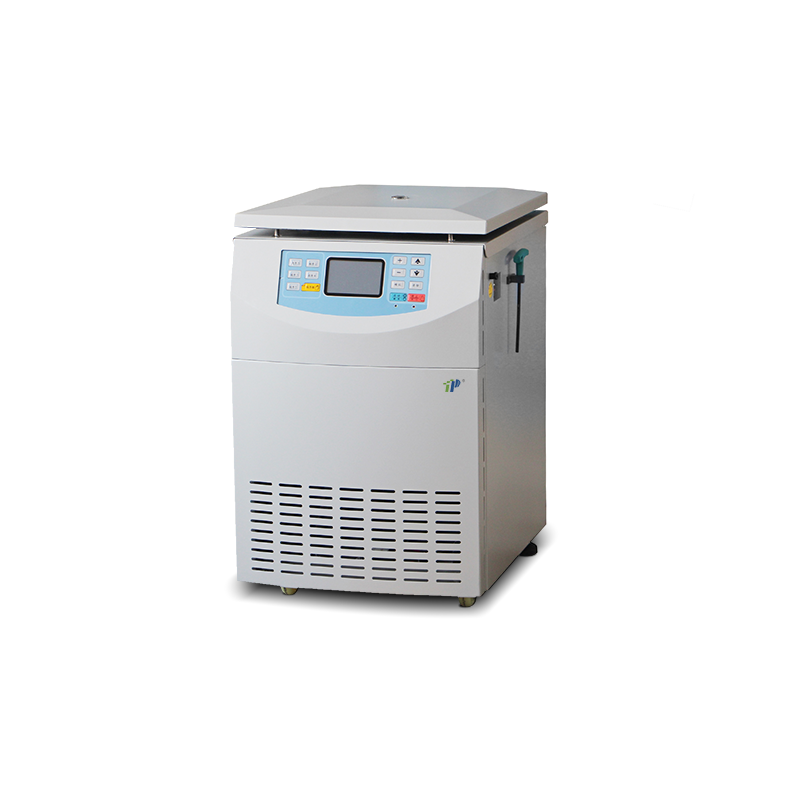

High-Speed Refrigerated Centrifuge TDR421C – 23,000 rpm, 35,500×g, 4×750ml Capacity, Low Noise, Intelligent Rotor Recognition

You are here: home » Products » Centrifuges » High Speed Centrifuges » High-Speed Refrigerated Centrifuge TDR421C – 23,000 rpm, 35,500×g, 4×750ml Capacity, Low Noise, Intelligent Rotor Recognition

Product Category

Large Capacity High Speed Refrigerated Centrifuge

High-Speed Refrigerated Centrifuge TDR421C – 23,000 rpm, 35,500×g, 4×750ml Capacity, Low Noise, Intelligent Rotor Recognition

Max Speed: 23,000 rpm
Max Relative Centrifugal Force (RCF): 35,500 ×g
Max Capacity: 4 × 750 ml
Temperature Range: -20℃ to 40℃ with ±1.0℃ accuracy
Noise Level: ≤ 62 dB(A)
Intelligent rotor automatic recognition system
Timer range: 1 s to 99h59min59s

Quantity:
Availability:





Inquire Add to Basket

Model:
TDR421C
Brand:
TOP

Product Features：

Intelligent control system

◆ RCF and speed separately and switching free,automatically calculate RCF.

◆ Up to 99 program groups and parameters can be revised during operation without stopping.

◆ The electric door lock can choose whether to open the chamber door automatically after the centrifugal operation

Excellent kernel performance

◆ HD large LCD display and the parameters can be revised during operation without shutdown.

◆ Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.

◆ 10 gears acceleration /deceleration with linear drive.

◆ Two modes can be set: start timing/arrival revolution timing.

◆ Energy-efficient ECO friendly refrigeration system with special thermal insulation inside the machine.

Careful and safe

◆ With rotor automatic identification system .

◆ Over speed,over heat,unbalance protections with auto lid lock.

◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.

Intimate detail design

◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.

◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.

◆ It is equipped with a rotor cover that can be quickly locked for easy use.

◆ Ergonomic, low opening height, close the centrifuge cover with one press.

◆ Special noise reduction system.

Large Capacity High Speed Refrigerated Centrifuge High speed cooling centrifuge Refrigerated lab centrifuge Large volume refrigerated centrifuge 10000 rpm refrigerated centrifuge 6L capacity refrigerated centrifuge -20°C to +40°C lab centrifuge Cell culture refrigerated centrifuge Best high speed refrigerated centrifuge for research How to choose a large capacity lab centrifuge

Related Products

High-Speed Refrigerated Laboratory Centrifuge | 6000–20000 rpm, -60℃ to 40℃, Multiple Rotor Options

High-Speed PRP Centrifuge TF-1 for Fat Purification and Orthopedic Applications | 5000 rpm, Multiple Rotor Options

Non-refrigerated Benchtop Capillary Centrifuge

High-Speed Clinical Centrifuge TG12 – 12000 rpm, 24-Sample Capacity, LCD Display

TB-12 Mini Centrifuge | 12000rpm High-Speed Laboratory Micro Centrifuge for PCR Tubes and Micro Samples

TG16W Non-refrigerated Benchtop High Speed Centrifuge

High Speed Microcentrifuge TG16W, 16000 rpm, 12 × 2 mL / 5 mL Tube Capacity

Non-refrigerated Benchtop Low Speed Centrifuge

High-Speed Laboratory Centrifuge 4000 rpm with Microprocessor Control for Biochemical and Pharmaceutical Applications

High-Speed Refrigerated Laboratory Centrifuge 5000 rpm, 4×400 ml Swing Rotor, Microprocessor Control, ISO Certified

Refrigerated Benchtop Low Speed Centrifuge

High-Speed Refrigerated Laboratory Centrifuge TZ-5MT / TDL5M – 5500rpm, LCD Touch Screen, Large Capacity

High Speed Refrigerated Centrifuge with Angle & Swing Rotors, 6000 rpm, 50 ml × 6, LCD Display, Low Noise

High Speed Laboratory Centrifuge TD6 Series – 6000 rpm, Angle & Swing Rotors, 4×500 ml Max Capacity

T3H16R1 Refrigerated Benchtop High Speed Centrifuge

High-Speed Refrigerated Microcentrifuge 16000rpm for PCR & Molecular Biology | Compact Lab Centrifuge for 1.5ml, 2.2ml, 5ml Tubes

TG16000 Non-refrigerated Benchtop High Speed Centrifuge

High Speed Refrigerated Laboratory Centrifuge 16000rpm with Touch Screen and Rotor Recognition for Biotech & Clinical Use

TGL-1600R Bench-Top High-Speed Freezing Centrifuge

TGL-R Series Refrigerated High Speed Microcentrifuge with LCD Display and Multiple Rotor Options

Compact Microcentrifuge with Brushless Motor | 12,000 rpm | Low Noise & High Precision

Capillary Tube Blood Centrifuge TGL-12M – 12000rpm Hematocrit Microcentrifuge for Lab Use

High-Speed Refrigerated Desktop Centrifuge | 10000–18500 rpm | Lab & Clinical Use

Non-refrigerated Benchtop High Speed Centrifuge

High-Speed Laboratory Centrifuge TG21000 with 21,000 RPM, 32,898×g RCF, Touchscreen Control & Safety Features

TGL16MB Bench-Top Refrigerated Centrifuge for Molecular Diagnostics & Biological Research, 16000 RPM High-Speed Microcentrifuge

High Speed Refrigerated Microcentrifuge TGL-20MB with Touchscreen, 20,000 RPM, -20°C to 40°C Temperature Control, 4×100ml Capacity for Medical & Biological Research

Refrigerated Benchtop High Speed Centrifuge

High-Speed Refrigerated Centrifuge 21000 RPM with Touch Screen & Large Capacity for Medical and Biotech Labs

Model	TDR421C
Max Speed	23000rpm	Voltage	AC 220±22V 50Hz 15A
Max RCF	35500×g	Power	1300W
Max Capacity	4×750ml	Noise Level	≤ 62dB（A）
Timer	1s～99h59min59s	Size	540×660×865 (mm)
Revolutions/min	±10r/min	Net Weight	167kg
Temp Range	-20℃～40℃	Rotor automatic recognition	Yes
Temp Accuracy	±1.0℃	/	/

Rotor Name	Rotor NO.	NO.	Capacity	Max Speed（r/min)	Max RCF(×g)
Angle rotor	1	1	12×1.5ml	23000rpm	35500×g
	2	2	16×1.5ml	21000rpm	30230×g
	3	3	12×5ml	18500rpm	23000×g
	4	4	24×1.5/2.0ml	18000rpm	29650×g
	5	5	12×10ml	17000rpm	29700×g
	6	6	48×1.5/2.0ml	16000rpm	26760×g
	7	7	6×50ml(Round bottom)	16000rpm	23430×g
	8	8	6×50ml(Conical/round bottom)	14000rpm	20800×g
	9	9	4×100ml	13000rpm	18160×g
	10	10	12×15ml (Conical bottom)	13000rpm	19177×g
	11	11	6×100ml	12500rpm	18550×g
	12	12	8×50ml (Conical/round bottom)	12000rpm	16000×g
	13	13	4×250ml	12000rpm	21630×g
	14	14	4×500ml	8000rpm	10375×g
Swing-out rotor	15	15	120×2~7ml（Blood collection tube）	4000rpm	3309×g
		16	4×750ml （with biosafety lid）	4000rpm	3309×g
		17	4×750ml (Round bucket)	4000rpm	3309×g
	16	18	Auto uncap 104×2~7ml（Blood collection tube）	4000rpm	3184xg
		19	4×500ml （with biosafety lid）	4000rpm	3184×g
		20	4×500ml Round bucket	4000rpm	3184×g
	17	21	4×250ml (with biosafety lid)	4000rpm	3040×g
		22	4×250ml Round bucket	4000rpm	3040×g
		23	4×250ml Square bucket(Match with adaptors)	4000rpm	3040xg
		24	6×250ml Round bucket	4000rpm	3040xg
Swing-out rotor body	18	25	Multifunctional 4*750ml swing out rotor need match with （Hanging bottle/Hanging basket）
Hanging Basket	18	26	750ml hanging bottle include： Adapter 4×14×15ml(Conical bottom) Adapter 4×7×50ml(Conical bottom)	4000rpm	3309×g
Hanging Basket		27	Micro-plate 4×2×96 hole	4000rpm	3309×g

Model	TDR421C
Max Speed	23000rpm	Voltage	AC 220±22V 50Hz 15A
Max RCF	35500×g	Power	1300W
Max Capacity	4×750ml	Noise Level	≤ 62dB（A）
Timer	1s～99h59min59s	Size	540×660×865 (mm)
Revolutions/min	±10r/min	Net Weight	167kg
Temp Range	-20℃～40℃	Rotor automatic recognition	Yes
Temp Accuracy	±1.0℃	/	/

Rotor Name	Rotor NO.	NO.	Capacity	Max Speed（r/min)	Max RCF(×g)
Angle rotor	1	1	12×1.5ml	23000rpm	35500×g
	2	2	16×1.5ml	21000rpm	30230×g
	3	3	12×5ml	18500rpm	23000×g
	4	4	24×1.5/2.0ml	18000rpm	29650×g
	5	5	12×10ml	17000rpm	29700×g
	6	6	48×1.5/2.0ml	16000rpm	26760×g
	7	7	6×50ml(Round bottom)	16000rpm	23430×g
	8	8	6×50ml(Conical/round bottom)	14000rpm	20800×g
	9	9	4×100ml	13000rpm	18160×g
	10	10	12×15ml (Conical bottom)	13000rpm	19177×g
	11	11	6×100ml	12500rpm	18550×g
	12	12	8×50ml (Conical/round bottom)	12000rpm	16000×g
	13	13	4×250ml	12000rpm	21630×g
	14	14	4×500ml	8000rpm	10375×g
Swing-out rotor	15	15	120×2~7ml（Blood collection tube）	4000rpm	3309×g
		16	4×750ml （with biosafety lid）	4000rpm	3309×g
		17	4×750ml (Round bucket)	4000rpm	3309×g
	16	18	Auto uncap 104×2~7ml（Blood collection tube）	4000rpm	3184xg
		19	4×500ml （with biosafety lid）	4000rpm	3184×g
		20	4×500ml Round bucket	4000rpm	3184×g
	17	21	4×250ml (with biosafety lid)	4000rpm	3040×g
		22	4×250ml Round bucket	4000rpm	3040×g
		23	4×250ml Square bucket(Match with adaptors)	4000rpm	3040xg
		24	6×250ml Round bucket	4000rpm	3040xg
Swing-out rotor body	18	25	Multifunctional 4*750ml swing out rotor need match with （Hanging bottle/Hanging basket）
Hanging Basket	18	26	750ml hanging bottle include： Adapter 4×14×15ml(Conical bottom) Adapter 4×7×50ml(Conical bottom)	4000rpm	3309×g
Hanging Basket		27	Micro-plate 4×2×96 hole	4000rpm	3309×g
