High Speed Refrigerated Centrifuge T3-16R – 16,500rpm, 19,175×g, 4×100ml Capacity, Adjustable Temperature

You are here: home » Products » Centrifuges » High Speed Centrifuges » High Speed Refrigerated Centrifuge T3-16R – 16,500rpm, 19,175×g, 4×100ml Capacity, Adjustable Temperature

Product Category

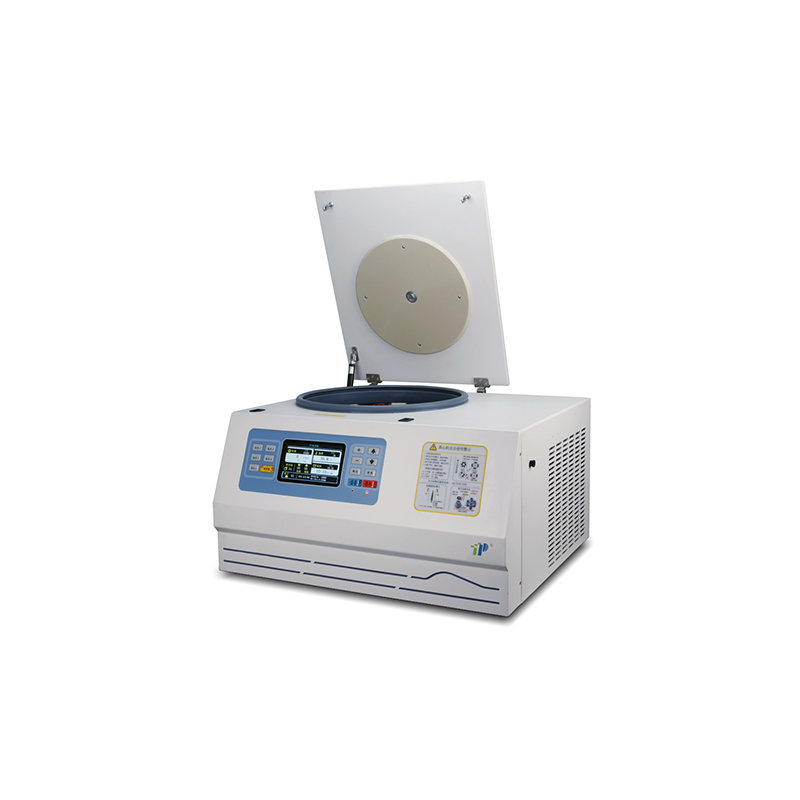

T3-16R High Speed Table Refrigerated Centrifuge

High Speed Refrigerated Centrifuge T3-16R – 16,500rpm, 19,175×g, 4×100ml Capacity, Adjustable Temperature

Max Speed: 16,500 rpm
Max RCF: 19,175 × g
Max Capacity: 4 × 100 ml
Temperature Range: -20℃ to 40℃, Accuracy ±1.0℃
Timer: 1 second to 99 hours 59 minutes 59 seconds
Noise Level: ≤ 60 dB(A)
Rotor Automatic Recognition and Multiple Rotor Options

Quantity:
Availability:





Inquire Add to Basket

Model:
T3-16R
Brand:
TOP

Product Features：

Intelligent control system

◆ With five groups of user-defined preset programs and can store 99 program groups .

◆ Electric door lock can to open the lid automatically after the centrifugal operation.

◆ Long press the start/instantaneous key to realize instantaneous centrifugation.

◆ Up to 10 level acceleration/ deceleration with Linear drive.

Excellent kernel performance

◆ HD large LCD display and the parameters can be revised during operation without shutdown.

◆ Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.

◆ Two modes can be set: start timing/arrival revolution timing.

◆ ECO friendly refrigeration system with Special thermal insulation process.

Careful and safe

◆ With rotor automatic identification system .

◆ Over speed,over heat,unbalance protections with auto lid lock.

◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.

Intimate detail design

◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.

◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.

◆ It is equipped with a rotor cover that can be quickly locked for easy use.

◆ Ergonomic, low opening height, close the centrifuge cover with one press.

◆ Special noise reduction system ;

High Speed Table Refrigerated Centrifuge Benchtop Refrigerated Centrifuge Lab Refrigerated High-Speed Centrifuge Compact Refrigerated Centrifuge Machine Tabletop Cooling Centrifuge 16500 RPM Refrigerated Centrifuge -20°C to +40°C Cooling Centrifuge High-Capacity Refrigerated Centrifuge Low Noise Refrigerated Lab Centrifuge Programmable Speed Refrigerated Centrifuge

Related Products

High-Speed Refrigerated Laboratory Centrifuge | 6000–20000 rpm, -60℃ to 40℃, Multiple Rotor Options

High-Speed PRP Centrifuge TF-1 for Fat Purification and Orthopedic Applications | 5000 rpm, Multiple Rotor Options

Non-refrigerated Benchtop Capillary Centrifuge

High-Speed Clinical Centrifuge TG12 – 12000 rpm, 24-Sample Capacity, LCD Display

TB-12 Mini Centrifuge | 12000rpm High-Speed Laboratory Micro Centrifuge for PCR Tubes and Micro Samples

TG16W Non-refrigerated Benchtop High Speed Centrifuge

High Speed Microcentrifuge TG16W, 16000 rpm, 12 × 2 mL / 5 mL Tube Capacity

Non-refrigerated Benchtop Low Speed Centrifuge

High-Speed Laboratory Centrifuge 4000 rpm with Microprocessor Control for Biochemical and Pharmaceutical Applications

High-Speed Refrigerated Laboratory Centrifuge 5000 rpm, 4×400 ml Swing Rotor, Microprocessor Control, ISO Certified

Refrigerated Benchtop Low Speed Centrifuge

High-Speed Refrigerated Laboratory Centrifuge TZ-5MT / TDL5M – 5500rpm, LCD Touch Screen, Large Capacity

High Speed Refrigerated Centrifuge with Angle & Swing Rotors, 6000 rpm, 50 ml × 6, LCD Display, Low Noise

High Speed Laboratory Centrifuge TD6 Series – 6000 rpm, Angle & Swing Rotors, 4×500 ml Max Capacity

T3H16R1 Refrigerated Benchtop High Speed Centrifuge

High-Speed Refrigerated Microcentrifuge 16000rpm for PCR & Molecular Biology | Compact Lab Centrifuge for 1.5ml, 2.2ml, 5ml Tubes

TG16000 Non-refrigerated Benchtop High Speed Centrifuge

High Speed Refrigerated Laboratory Centrifuge 16000rpm with Touch Screen and Rotor Recognition for Biotech & Clinical Use

TGL-1600R Bench-Top High-Speed Freezing Centrifuge

TGL-R Series Refrigerated High Speed Microcentrifuge with LCD Display and Multiple Rotor Options

Compact Microcentrifuge with Brushless Motor | 12,000 rpm | Low Noise & High Precision

Capillary Tube Blood Centrifuge TGL-12M – 12000rpm Hematocrit Microcentrifuge for Lab Use

High-Speed Refrigerated Desktop Centrifuge | 10000–18500 rpm | Lab & Clinical Use

Non-refrigerated Benchtop High Speed Centrifuge

High-Speed Laboratory Centrifuge TG21000 with 21,000 RPM, 32,898×g RCF, Touchscreen Control & Safety Features

TGL16MB Bench-Top Refrigerated Centrifuge for Molecular Diagnostics & Biological Research, 16000 RPM High-Speed Microcentrifuge

High Speed Refrigerated Microcentrifuge TGL-20MB with Touchscreen, 20,000 RPM, -20°C to 40°C Temperature Control, 4×100ml Capacity for Medical & Biological Research

Refrigerated Benchtop High Speed Centrifuge

High-Speed Refrigerated Centrifuge 21000 RPM with Touch Screen & Large Capacity for Medical and Biotech Labs

Model	T3-16R
Max Speed	16500rpm	Voltage	AC 220±22V 50Hz 15A
Max RCF	19175×g	Power	800W
Max Capacity	4×100ml	Noise Level	≤ 60dB（A）
Timer	1s～99h59min59s	Size	610×560×370 (mm)
Revolutions/min	±10r/min	Net Weight	73kg
Temp Range	-20℃～40℃	Rotor automatic recognition	Yes
Temp Accuracy	±1.0℃	/	/

Rotor Name	Rotor NO.	NO.	Capacity	Max Speed（r/min)	Max RCF(×g)
Angle rotor	1	1	12×1.5/2.0ml	16500rpm	19175×g
	2	2	12×5ml	16000rpm	17344×g
	3	3	24×1.5/2.0ml	14000rpm	18823×g
	4	4	8×8×0.2ml PCR	14000rpm	15032×g
	5	5	12×10ml	13000rpm	15228×g
	6	6	6×50ml(Round bottom)	12000rpm	14610×g
	7	7	6×50ml (Conical/round bottom)	12000rpm	16227×g
	8	8	12×15ml(Conical bottom)	11000rpm	13730×g
	9	9	4×100ml	11000rpm	14298×g

Model	T3-16R
Max Speed	16500rpm	Voltage	AC 220±22V 50Hz 15A
Max RCF	19175×g	Power	800W
Max Capacity	4×100ml	Noise Level	≤ 60dB（A）
Timer	1s～99h59min59s	Size	610×560×370 (mm)
Revolutions/min	±10r/min	Net Weight	73kg
Temp Range	-20℃～40℃	Rotor automatic recognition	Yes
Temp Accuracy	±1.0℃	/	/

Rotor Name	Rotor NO.	NO.	Capacity	Max Speed（r/min)	Max RCF(×g)
Angle rotor	1	1	12×1.5/2.0ml	16500rpm	19175×g
	2	2	12×5ml	16000rpm	17344×g
	3	3	24×1.5/2.0ml	14000rpm	18823×g
	4	4	8×8×0.2ml PCR	14000rpm	15032×g
	5	5	12×10ml	13000rpm	15228×g
	6	6	6×50ml(Round bottom)	12000rpm	14610×g
	7	7	6×50ml (Conical/round bottom)	12000rpm	16227×g
	8	8	12×15ml(Conical bottom)	11000rpm	13730×g
	9	9	4×100ml	11000rpm	14298×g
