High Speed Benchtop Centrifuge T2-6C, 6000 rpm, 4×100ml, Brushless Motor, LCD Display, Rotor Options
You are here: home » Products » Centrifuges » High Speed Centrifuges » High Speed Benchtop Centrifuge T2-6C, 6000 rpm, 4×100ml, Brushless Motor, LCD Display, Rotor Options

Product Category

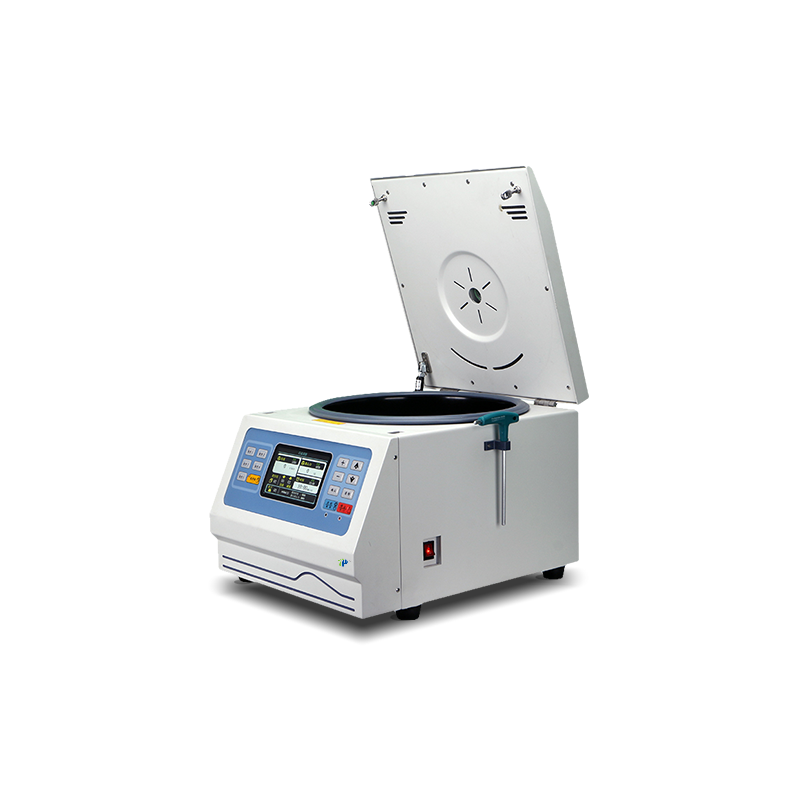

High Speed Benchtop Centrifuge T2-6C, 6000 rpm, 4×100ml, Brushless Motor, LCD Display, Rotor Options

Max Speed: 6000 rpm, Max RCF: 4338 ×g Max Capacity: 4 × 100 ml Rotor Types: Angle rotor & Swing-out rotor options with automatic rotor identification Timer Range: 1 second to 99h59m59s Noise Level: ≤ 62 dB(A) with special noise reduction system Motor: AC frequency conversion brushless motor Dimensions / Weight: 360 × 500 × 325 mm / 31 kg
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • T2-6C

  • TOP

Product Features:


Intelligent control system

◆ Equipped with five groups of  user-defined preset programs.

◆ Program group shortcut key, large storage space, can store 99 program groups.

◆ Automatic electronic door lock.

◆ One key short-time centrifuge button.


Excellent kernel performance

◆  HD large LCD display and the parameters can be revised during operation without shutdown.

◆  Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.

◆ 10 gear acceleration /deceleration with linear drive.

◆ Two modes can be set: start timing/arrival revolution timing.


Careful and safe care

◆ With rotor automatic identification system .

◆ Over speed,over heat,unbalance protections with auto lid lock.

◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.


Intimate detail design

◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.

◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.

◆ It is equipped with a rotor cover that can be quickly locked for easy use.

◆ Ergonomic, low opening height, close the centrifuge cover with one press.

◆ Special noise reduction system.


Technical Parameter:


Model

T2-6C

Max Speed

6000rpm

Power

300W

Max RCF

4338×g

Noise Level

≤ 62dB(A)

Max Capacity

4×100ml

Dimensions (L x W x H)

360×500×325 (mm)

Timer

1s~99h59min59s

Net Weight

31kg

Revolutions/min

±10r/min

Automatic rotor

identification

Yes

Voltage

AC 220±22V 50/60Hz 10A

/

/


Rotor Parameter

Rotor Capacity

Rotor NO.

NO.

Rotor Capacity

Max Capacity(r/min)

Max RCF(×g)

Angle rotor(W)

1

1

12×15ml

6000rpm

4226×g

2

2

6×50ml

6000rpm

4338×g

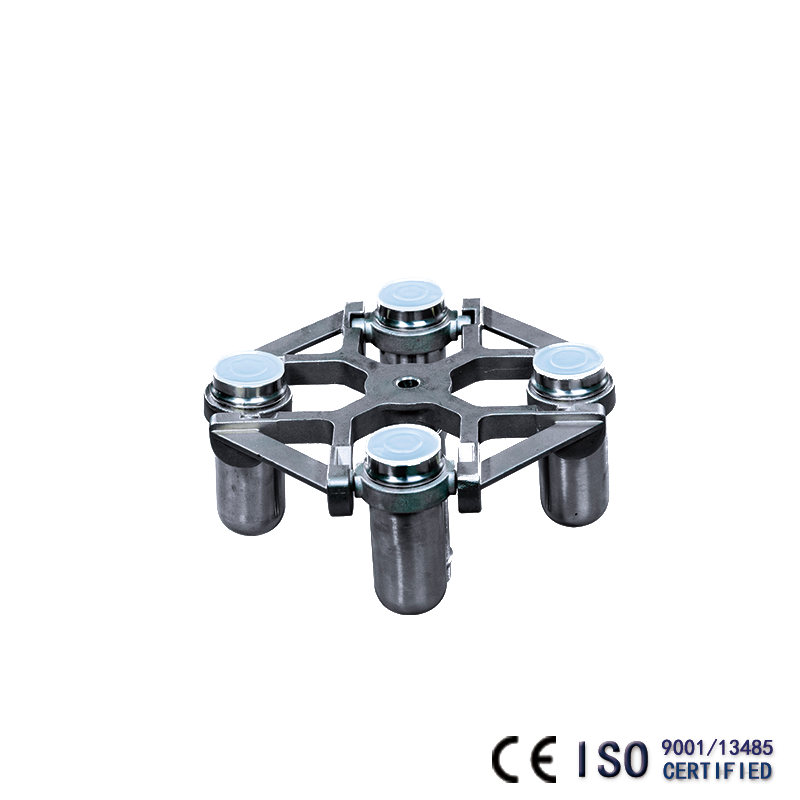

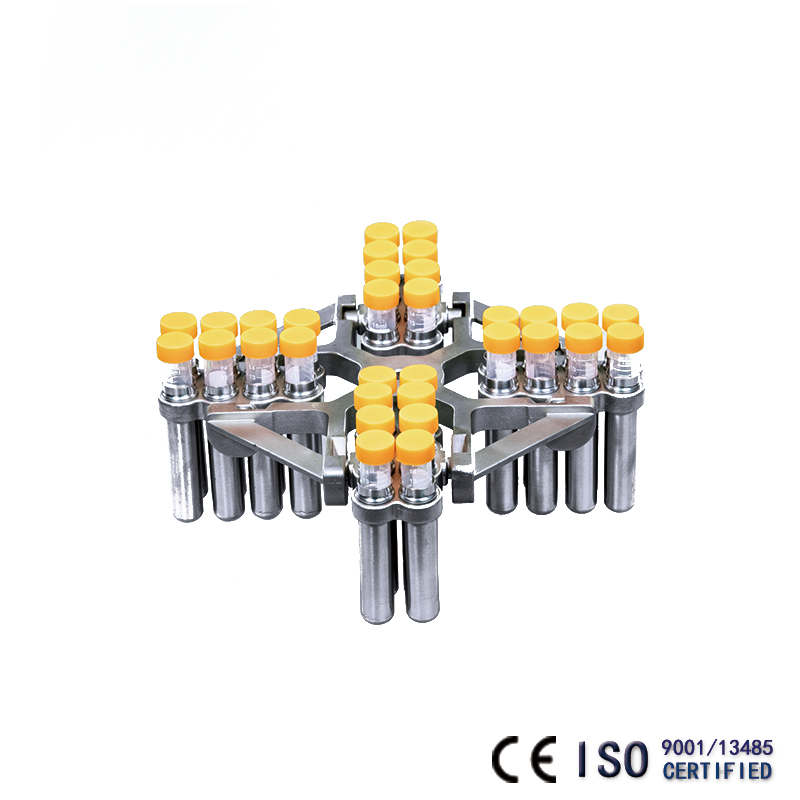

Swing-out rotor body

3

3

Swing-out rotor body shall be used with as below pipe rack

Pipe rack

4

4

4×50ml

4200rpm

2760×g

5

4×100ml

4200rpm

2760×g

6

16×15ml

4200rpm

2760×g

7

24×10ml

4200rpm

2760×g


* All products can be customized, designed and produced according to customer requirements.
