Automatic Blood Bank Tube Sealer, Microprocessor Control, Adjustable Voltage, 2-6mm Tube, Compact Design

Sealing Voltage: adjust automatically
Control: microprocessor control
Sealing Time: 0.1s~9.9s adjustable / 2.5s depend on models
Sealing Method: High frequency tube automatic heat sealing / Crystal valve automatic heat sealing depend on models
Size of Tube: Φ2mm to Φ6mm ; thickness ≤ 1mm

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • TR2023/TR2002

  • TOP

The tube sealer is used for heat sealing medical PVC blood collection bag catheters. Mainly applicable to all levels of hospitals’ transfusion departments, blood collection and component departments, blood banks, and medical research institutions.


Feature:

1. Single chip microcontroller control, microprocessor control, automatically adjusts voltage.

2. Using imported components to ensure instrument reliability.

3. User-friendly design: small size, light weight, easy to move, simple operation.


Technical data

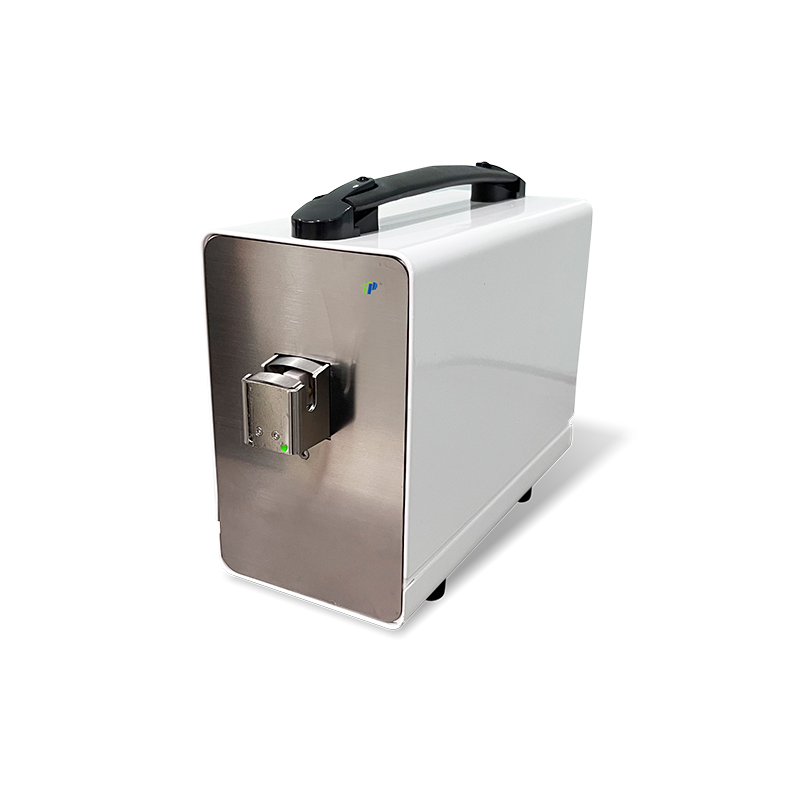

TR2002

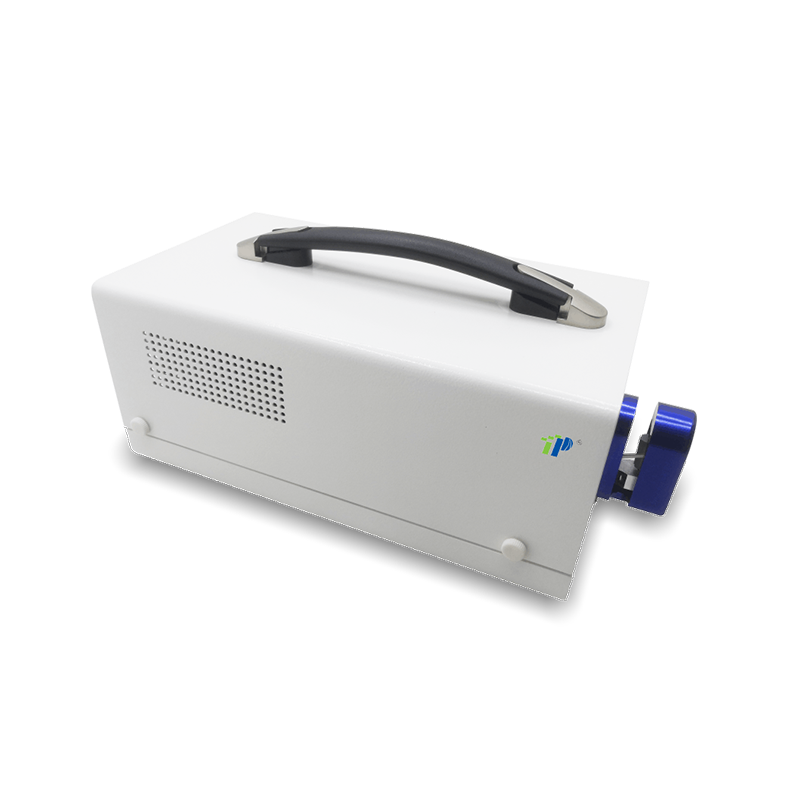

TR2023

Sealing Voltage

adjust automatically

adjust automatically

Control

microprocessor control

microprocessor control

Sealing Time

0.1s~9.9s adjustable

2.5s

Sealing Method

High frequency tube automatic heat sealing

Crystal valve automatic heat sealing

Size of Tube

Φ2mm to Φ6mm

thickness ≤ 1mm

Φ2mm to Φ6mm

thickness ≤ 1mm

Power Supply

AC 110/220V 50/60Hz 10A

AC 110/220V 50/60Hz 10A

NW

7 kg

6.5kg

GW

8 kg

7kg

Dimension

280 x 115 x 220 mm

320 x 180 x 130 mm

Packing Size

450 x 170 x 280 mm

470 x 260 x 270 mm



Previous:
Next:
Automatic Blood Bank Tube Sealer Blood Tube Sealing Machine Medical Tube Sealer for Blood Banks Automatic Tube Sealer for Laboratories Blood Collection Tube Sealing Device Heat Sealing Blood Tube Sealer Induction Sealing Machine for Blood Tubes High-Speed Automatic Tube Sealer Programmable Blood Tube Sealing System Touchscreen Tube Sealer for Labs

Related Products

Heated Gerber Milk Centrifuge
Milk Fat Determination Centrifuge TZ10, Gerber Method, 8-Sample Capacity, LCD Display, for Dairy and Food Labs
Refrigerated Vehicle Low Speed Centrifuge
High-Capacity Refrigerated Blood Bank Centrifuge TDL4M – 4000 rpm, 24×5 mL / 12×15 mL, LCD Touch Control
PRP Centrifuge
High-Speed PRP Centrifuge TF-1 for Fat Purification and Orthopedic Applications | 5000 rpm, Multiple Rotor Options
Non-refrigerated Benchtop Cytocentrifuge
Cytology Centrifuge for Thin Layer Cell Preparation – Models TJ-8 & TJ-12, 12-Sample Capacity, 2200 rpm
Non-refrigerated Benchtop Capillary Centrifuge
High-Speed Clinical Centrifuge TG12 – 12000 rpm, 24-Sample Capacity, LCD Display
Non-refrigerated Cell Washing Centrifuge
TD4-1 Blood Cell Washing Centrifuge for RBC/WBC Washing, Blood Typing, and Cross Matching
TD Series Non-refrigerated Benchtop Low Speed Centrifuge
Portable Low-Speed Laboratory Centrifuge TD4A/TD4 – 4000 rpm, Brushless Motor, Multiple Rotor Options
Low Speed Multi Tube Urine Sediment Centrifuge
TD4NC Low-Speed Urine Sediment Centrifuge | 4000 rpm | 15ml × 16 Capacity | Clinical Laboratory Centrifuge
Blood Centrifuge
TXK4-1 Blood Type Serum Centrifuge | 4000 rpm | 12-Card Capacity | Serology & Immunology Testing
Blood Bank Dedicated Automatic Balancing Centrifuge
TD-500 Blood Bank Centrifuge | 5500 rpm | 15ml × 12 | Automatic Balancing & Microcomputer Control

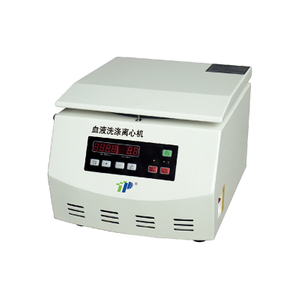

Blood Washing Centrifuge
