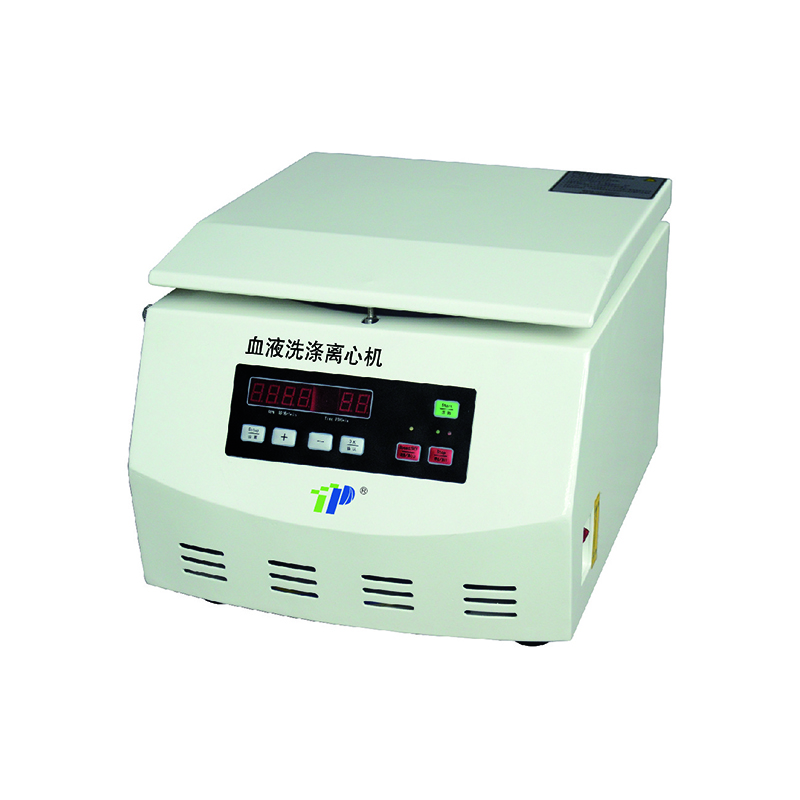

TD4XD Clinical Centrifuge for Blood Grouping & Cell Washing | 7ml × 12 | 1789 ×g | Low Noise & Brushless Motor

Max RCF: 1789 ×g
Capacity: 7 ml × 12 tubes
Motor: Brushless DC motor with microcomputer control
Applications: Blood typing, cross-matching, antibody screening, cell washing, serum/plasma separation
Speed Accuracy: ±10 r/min; Time Range: 1–99 min
Noise Level: ≤65 dB(A)
Design: Compact size, corrosion-resistant stainless steel inner chamber

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TD4XD

  • TOP

Application:

Mainly used for the separation and washing of lymphocytes in leukocyte antigen tests; separation and purification of cultured cells, coagulation treatment, blood type identification, observation of blood cell agglutination reactions, cross-matching tests, antiserum globulin tests, antibody screening, antibody performance determination, red blood cell washing, serum extraction, plasma, etc. It is an efficient operating equipment in the fields of transfusion science, hematology, bacteriology, forensic medicine, and clinical medicine.


Feature:

- Compact in size, exquisitely crafted, and aesthetically pleasing to save laboratory space.

- Equipped with various protections such as overspeed and imbalance, enhancing safety.

- Maintenance-free brushless motor driven by microcomputer control, stable operation, low noise, and high speed accuracy.

- Stainless steel inner cavity, corrosion-resistant, anti-crack, and robust construction.


Technical parameters:

ModelTD4XD
Speed accuracy±10 r/min
Maximum RCF1789×g
Maximum preparation capacity7ml×12
Time range1 min~99 min
Power sourceAC220V 50HZ 8A
Overall noise≦65dB(A)
MotorDC brushless motor
Total power250W
Weight20 kg
External dimensions (L×W×H)420×350×300 (mm)
Outer packaging dimensions (L × W × H)510×420×460 (mm)
