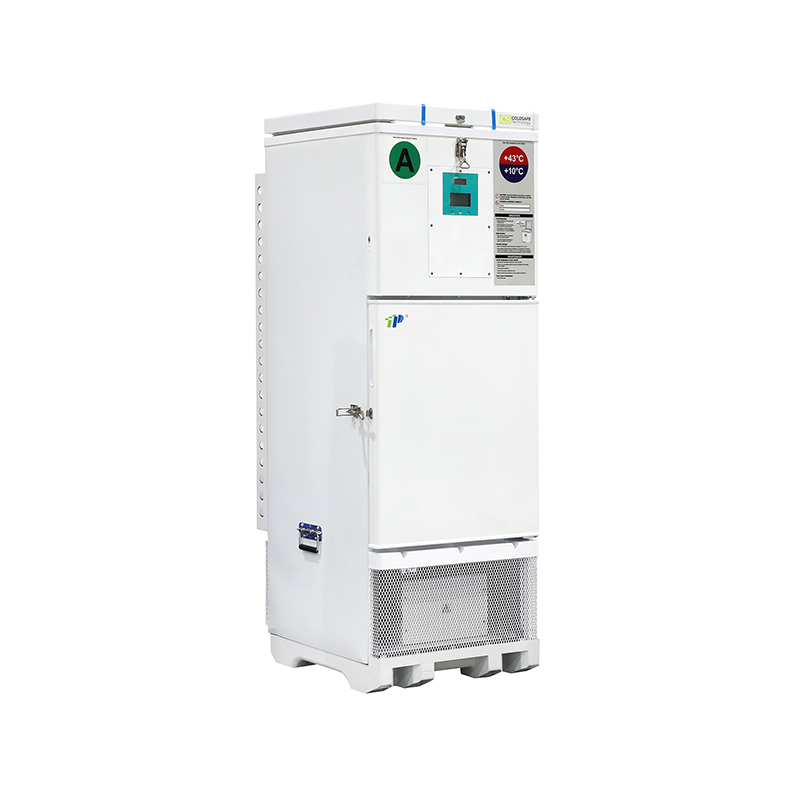

Solar Direct Drive Ice-Lined Vaccine Refrigerator, 50L | 2–8°C Cold Chain Storage for Remote Areas

Storage Volume: 50 L
Temperature Range: 2°C to 8°C (maintains ≥5 days after power-off at 43°C ambient)
Ambient Temperature Range: 10°C to 43°C
Power Supply: 82–290 V, 50–60 Hz, operates with only 3 hours/day power supply
Temperature Monitoring: 30-day record, remote monitoring & setting, audible/visual alarms
Dimensions (W×D×H): 642 × 720 × 1688 mm
Net/Gross Weight: 102 kg / 108 kg

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TFD-50

  • TOP

It is an ice-lined vaccine storage device that can solve the problem of vaccine storage in the areas where power supply is insufficient or unstable.With power supply for less than 4 hours a day,the device can realize safe and stable storage temperature and keep temperature in therangeof2-8°C for a long time after power-off(effective storage for over5 days under environmental temperature of 43°℃).


Product  advantages

●  Keep  the  temperature  2°C-8°C  for  over  5  days  after  power-off  under  environmental  temperature  of  43℃, and  2℃~8℃ for  over  8  days  after  power-off  under  environmental  temperature  of  25°℃

● Used in the voltage range of 82-290V,with wide voltage protection

●Run normally after power supply for 3h only in a day

●Grade A ant-freezing as rated by WHO

●Storage volume50L

●30-day temperature record,remote temperature monitoring and setting

●Audible and visual alarm in case of abnormal storage temperature


Technical data


Model

Volume(L)

Internal

temperature

(C)

Ambient

Temperature

(C)


Input voltage

(V)

Input frequency

Dimension

(mm)

Net/gross  weight  (Kg)

TFD-50

50

2-8

10-43

82-290

50-60

642x720x1688

102/108
