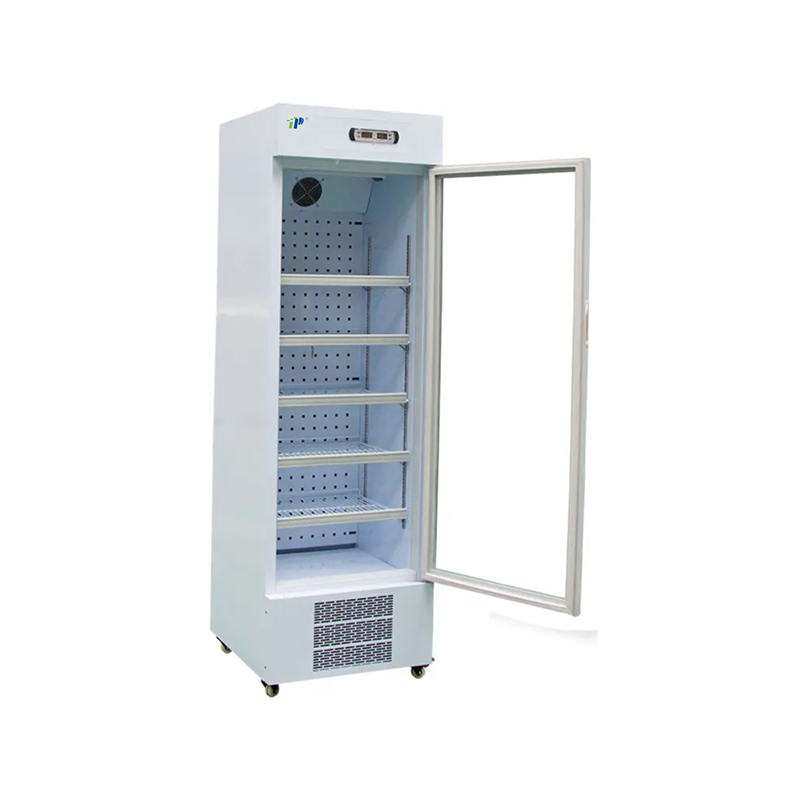

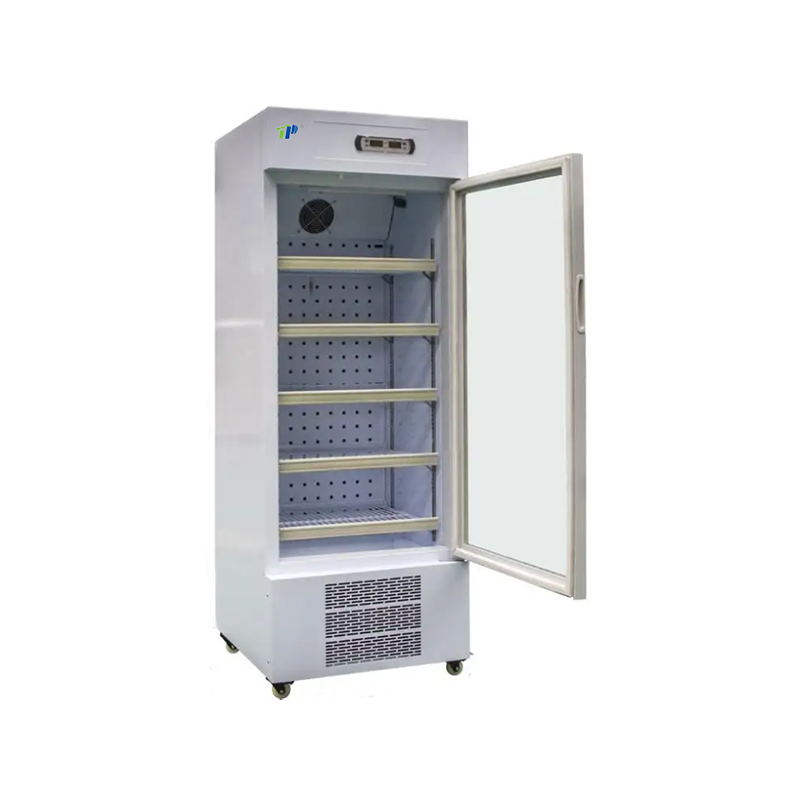

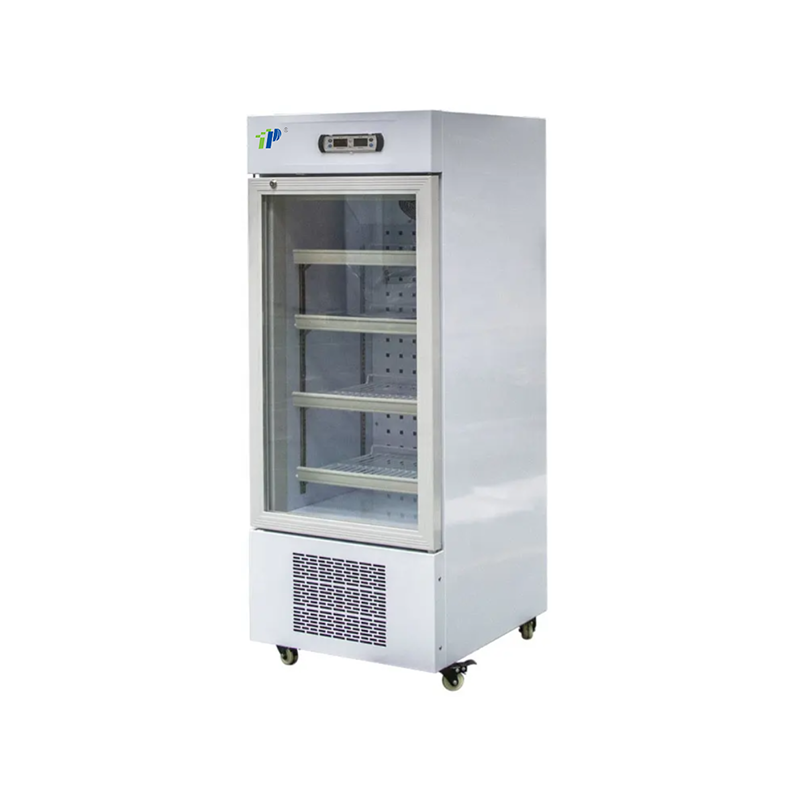

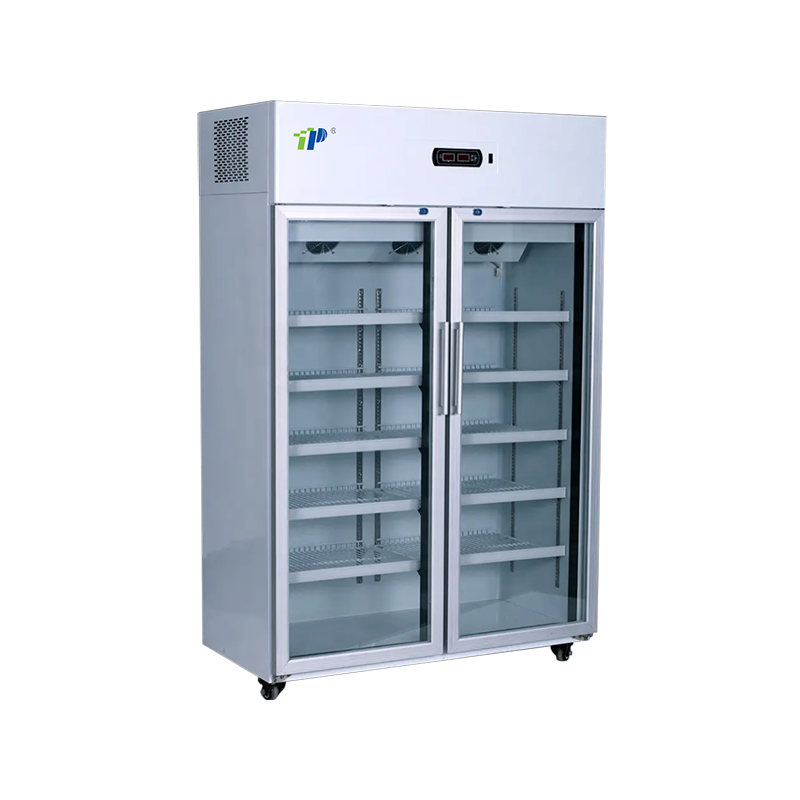

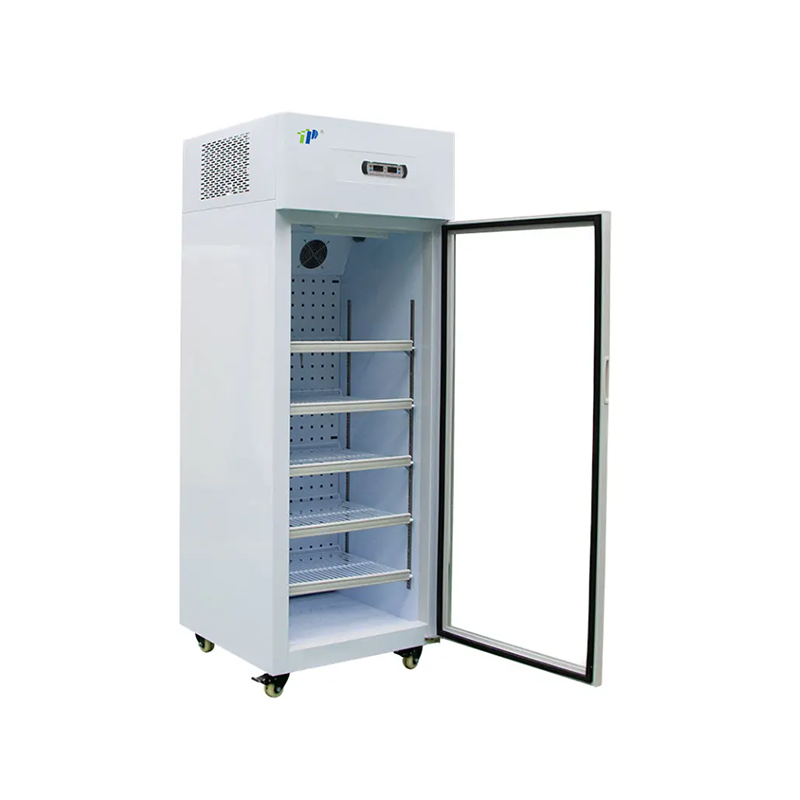

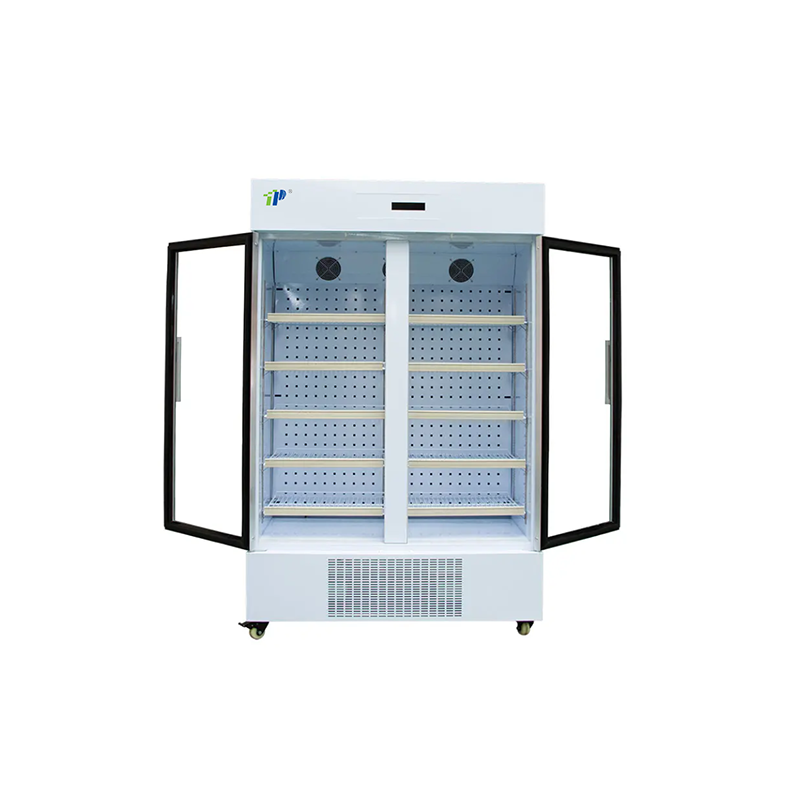

TLC Series
TOP
Features:
Microcomputer digital control: real-time display of temperature and humidity, display accuracy of 0.1 ℃ ℃.
The temperature inside the box is controlled within the range of 8 ° C to 20 ° C.
Multiple fault alarms: high and low temperature alarms, humidity alarms, sensor fault alarms, etc.
A shelf with label strips, convenient for users to identify and store drugs, reagents, etc.
Built in lighting, high brightness and energy-saving, making it easy to see the drugs and reagents inside the cabinet at a glance.
Features:
Microcomputer digital control: real-time display of temperature and humidity, display accuracy of 0.1 ℃ ℃.
The temperature inside the box is controlled within the range of 8 ° C to 20 ° C.
Multiple fault alarms: high and low temperature alarms, humidity alarms, sensor fault alarms, etc.
A shelf with label strips, convenient for users to identify and store drugs, reagents, etc.
Built in lighting, high brightness and energy-saving, making it easy to see the drugs and reagents inside the cabinet at a glance.
Technical data
Model | TLC-L160 | TLC-L260 | TLC-L360 | TLC-L460 |
Volume (L) | 160 | 260 | 360 | 460 |
Temperature range (℃) | 8～20 | |||
Rated voltage/frequency (V/Hz) | 220/50 | |||
Rated power (W) | 220 | 250 | 290 | 330 |
Power consumption (KWh/24h) | 2.6 | 2.9 | 3.4 | 3.9 |
Types of electric shock protection | I | |||
Climate types | N | |||
Net weight (kg) | 60 | 69 | 80 | 111 |
Noise (dBA) | 52 | 52 | 52 | 54 |
Insulation layer Thickness (mm) | 45 | 40 | 40 | 60 |
Set aside the net/panel (layer) | 4 | 5 | 5 | 5 |
Product size (mm) | 522*595*1365 | 595*605*1620 | 595*605*1940 | 680*745*1870 |
Inner box dimensions (mm) | 432*500*843 | 515*510*1085 | 515*510*1405 | 560*610*1380 |
Packaging material 1 | Wooden tray + carton | |||
Packaging size 1 | 590*670*1470 | 670*680*1730 | 670*680*2050 | 750*800*1930 |
Packing material 2 | Plywood | |||
Package size 2 | 610*695*1515 | 690*705*1770 | 690*705*2090 | 770*810*2020 |
Structure | Bottom-mounted unit | Bottom-mounted unit | Downward-mounted unit | Top-mounted unit |
Certificate | CELAB | CELAB | ||
Product configuration
Style | Vertical | Cooling fan | Yes | Roller form | Self-locking universal rubber roller |
Color | Milky white | Cabinet interior lighting lamp | LED | Put on the net | Plastic coating |
Cooling method | Cool breeze | Thermostat | Microcomputer LED Digital Display Thermostat | door | Plastic profile frame glass door |
Compressor | Yes | Insulation material | Cyclopentane polyurethane foam insulation layer | Pulling hands or Holding hands | Recessed pull handle |
Evaporator | Blow-up evaporator | Refrigerant | R134a | Door seal strip | Rubber band airbag door seal |
Condenser | Silicone tube condenser | Outer box, inner box materials | Cold-rolled steel plate, electrostatic spraying | Alarm method | Bee sound and display flashing alarm |
Evaporative fan | Yes | Lock | Alloy industrial cabinet lock | Alarm function | High and low temperature alarm, sensor fault alarm |
Optional configuration | Remote monitoring / USB data interface / temperature recorder | ||||
Model | TLC-L660 | TLC-L960 | TLC-L1360 |
Volume (L) | 660 | 960 | 1360 |
Temperature range (℃) | 8 to 20 | ||
Rated voltage / Frequency (V/Hz) | 220/50 | ||
Rated power (W) | 380 | 450 | 560 |
Power consumption (KWh/24h) | 4.5 | 5.4 | 6.7 |
Electric shock protection Type | I | ||
Climate type | N | ||
Net weight (kg) | 129 | 141 | 158 |
Noise (dB A) | 54 | 54 | 54 |
Insulation layer Thickness (mm) | 45 | 60 | 60 |
Placed on the net/board (layer) | 5 | 5 | 5 |
Product size (mm) | 1200*650*1895 | 1200*745*1870 | 1800*745*1870 |
Internal box dimensions (mm) | 1112*560*1232 | 1080 * 610 * 1380 | 1680*610*1380 |
Packaging material 1 | Wooden pallet + cardboard box | ||
Packaging size 1 | 1270*720*1950 | 1270*800*1930 | 1880*800*1930 |
Packaging material 2 | Plywood | ||
Packaging size 2 | 1290*740*2045 | 1290*810*2020 | 1890 times 810 times 2020 |
Structure | Low-mounted unit | Top-mounted unit | Top-mounted unit |
Certificate | CELAB | CELAB is likely an acronym, no translation available | CELAB is likely an abbreviation or acronym, and without more context, it can be translated as is, but it may stand for "China Environmental Label" or other meanings depending on the context. |
Product configuration
Style | Vertical | Condensing fan | Yes | Roller type | Self-locking universal rubber roller |
Color | Milk white | Cabinet lighting lamp | LED | Put on the net | Plating with plastic |
Cooling method | Wind and cold | Thermostat | Microcomputer LED digital display temperature controller | Door | Plastic profile frame glass door |
Compressor | Yes | Insulation materials | Cyclopentane polyurethane foam insulation layer | Hold hands | Embedded pull handle |
Evaporator | Blow-up evaporator | Refrigerant | R134a | Door seal strip | Rubber belt airbag door seal |
Condenser | Silicone tube condenser | Outer box, inner box materials | Cold-rolled steel plate, electrostatic spraying | Alarm method | Buzzer sound and display flashing alarm |
Evaporative fan | Dragon flies | Lock | Alloy industrial cabinet lock | Alarm function | High and low temperature alarm, sensor failure alarm |
Optional configuration | Remote monitoring / USB data interface / temperature logger | ||||
