TYC-L Series
TOP
Features:
Temperature control
Display accuracy of 0.1 ℃ ℃;
Microcomputer digital control, real-time display of temperature and humidity;
The temperature inside the box is controlled within the range of 4 ± 1 ℃;
Configure temperature and humidity display, recording, and data transmission functions as required to meet GSP requirements;
The optional electronic printing temperature record only tracks and monitors temperature changes throughout the entire process, making it easy to trace;
Safety system
Multiple fault alarms;
High and low temperature alarm, power outage alarm, door opening alarm, sensor failure alarm;
Multiple alarm methods;
Sound buzzing alarm, flashing light alarm;
Refrigeration system
Using well-known brand compressors, with stable and reliable performance and long service life;
Using branded fans, the performance is stable and long-lasting, with low noise;
Unique fluorine free and environmentally friendly refrigerant;
User-friendly design
Convenient access: shelves with label strips for easy identification and storage of drugs by users;
High security: The door is equipped with a safety lock, ensuring high security;
Energy saving: Built in lighting, high brightness and energy-saving, making the reagents inside the cabinet clear at a glance;
Strong applicability: Designed with a wide voltage range of 187V~242V, suitable for environments with unstable voltage
Features:
Temperature control
Display accuracy of 0.1 ℃ ℃;
Microcomputer digital control, real-time display of temperature and humidity;
The temperature inside the box is controlled within the range of 4 ± 1 ℃;
Configure temperature and humidity display, recording, and data transmission functions as required to meet GSP requirements;
The optional electronic printing temperature record only tracks and monitors temperature changes throughout the entire process, making it easy to trace;
Safety system
Multiple fault alarms;
High and low temperature alarm, power outage alarm, door opening alarm, sensor failure alarm;
Multiple alarm methods;
Sound buzzing alarm, flashing light alarm;
Refrigeration system
Using well-known brand compressors, with stable and reliable performance and long service life;
Using branded fans, the performance is stable and long-lasting, with low noise;
Unique fluorine free and environmentally friendly refrigerant;
User-friendly design
Convenient access: shelves with label strips for easy identification and storage of drugs by users;
High security: The door is equipped with a safety lock, ensuring high security;
Energy saving: Built in lighting, high brightness and energy-saving, making the reagents inside the cabinet clear at a glance;
Strong applicability: Designed with a wide voltage range of 187V~242V, suitable for environments with unstable voltage
Technical data

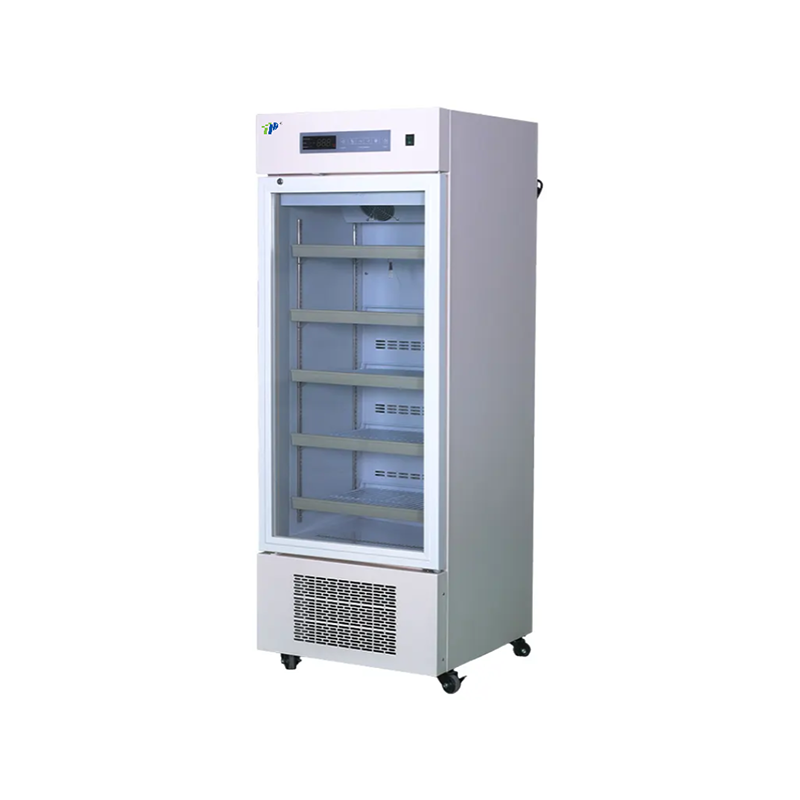

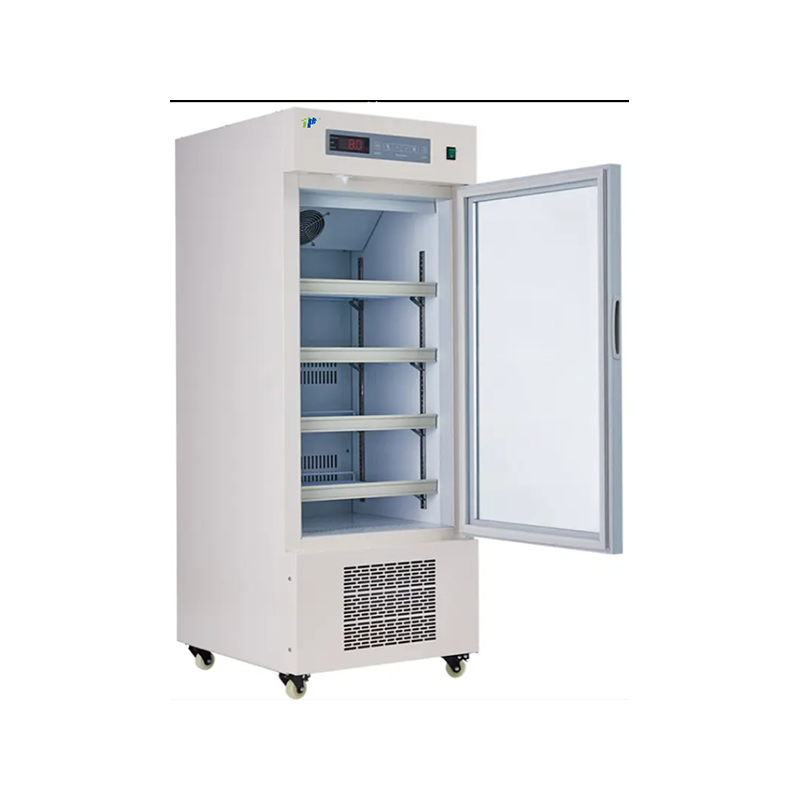

Model | TYC-L130 | TYC-L230 | TYC-L300 | TYC-L360 |
Volume (L) | 130 | 230 | 300 | 360 |
Temperature range (℃) | 4±1 | |||
Rated voltage/frequency (V/Hz) | 220/50 | |||
Rated power (W) | 240 | 280 | 300 | 320 |
Power consumption (KWh/24h) | 2.8 | 3.4 | 3.6 | 4.8 |
Electric shock protection types | I | |||
Climate type | N | |||
Net weight (kg) | 62 | 73 | 83 | 105 |
Noise (dbA) | 52 | 52 | 52 | 52 |
Insulation layer Thickness (mm) | 45 | 40 | 40 | 50 |
Set aside network/board (layer) | 4 | 5 | 5 | 5 |
Product dimensions (mm) | 522*596*1365 | 595*605*1620 | 595*605*1940 | 680*650*1975 |
Inner box dimensions (mm) | 432*500*843 | 515*510*1085 | 515*510*1405 | 580*550*1520 |
Packaging Material 1 | Wooden pallet + carton | |||
Packaging size | 590*670*1470 | 670*680*1730 | 670*680*2050 | 750*730*2085 |
Structure | Bottom-mounted unit | Bottom-mounted unit | Bottom-mounted unit | Bottom-mounted unit |
Certificate |
产品参数

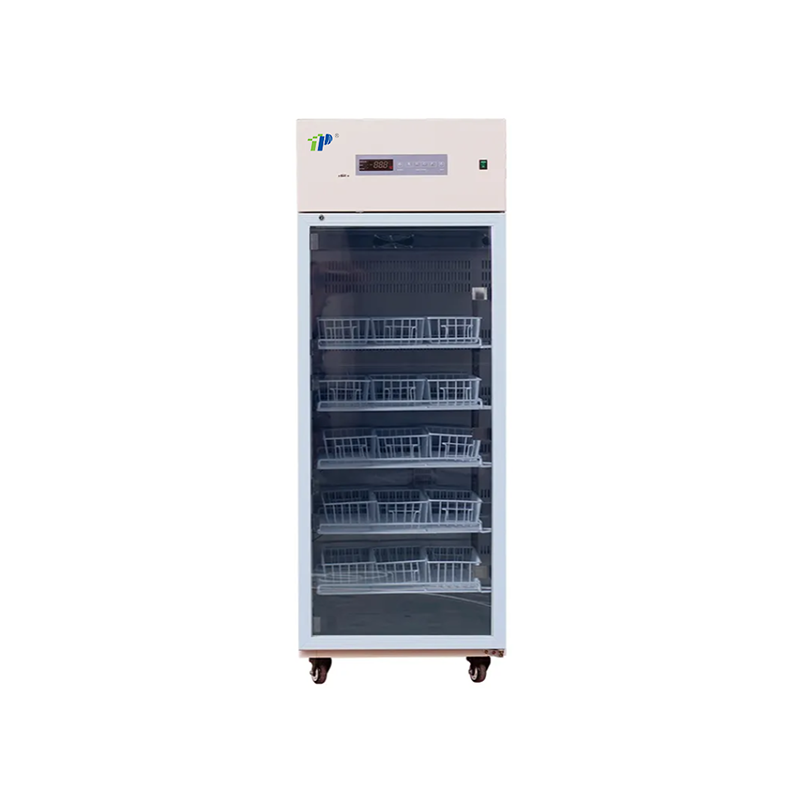

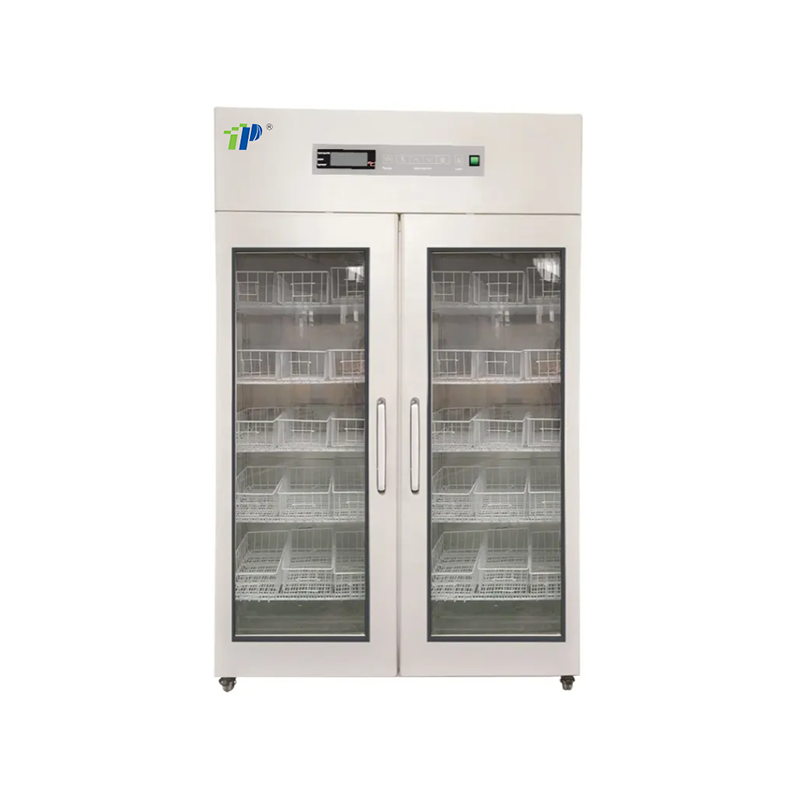

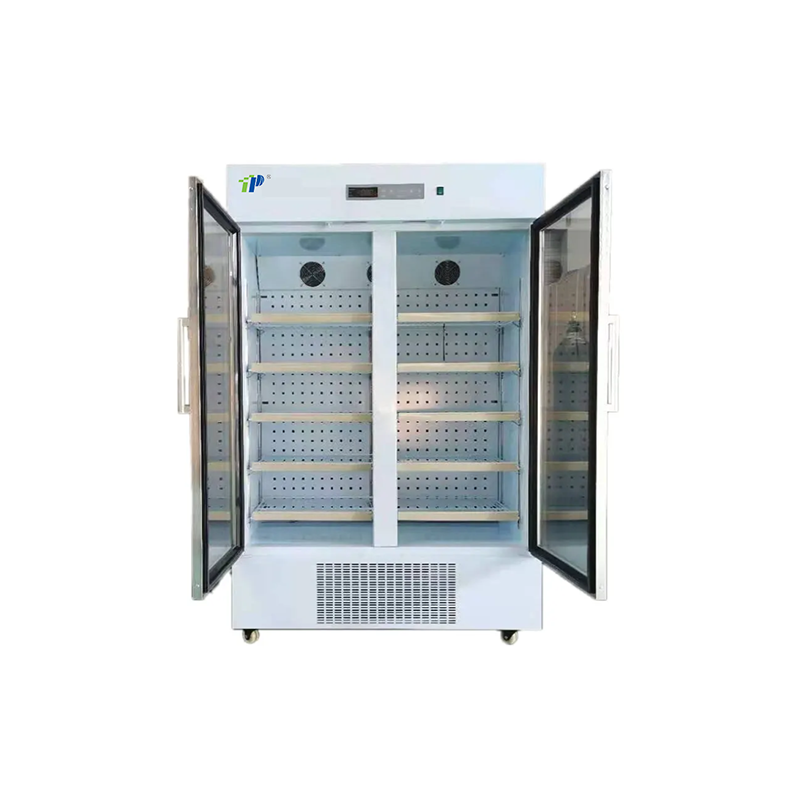

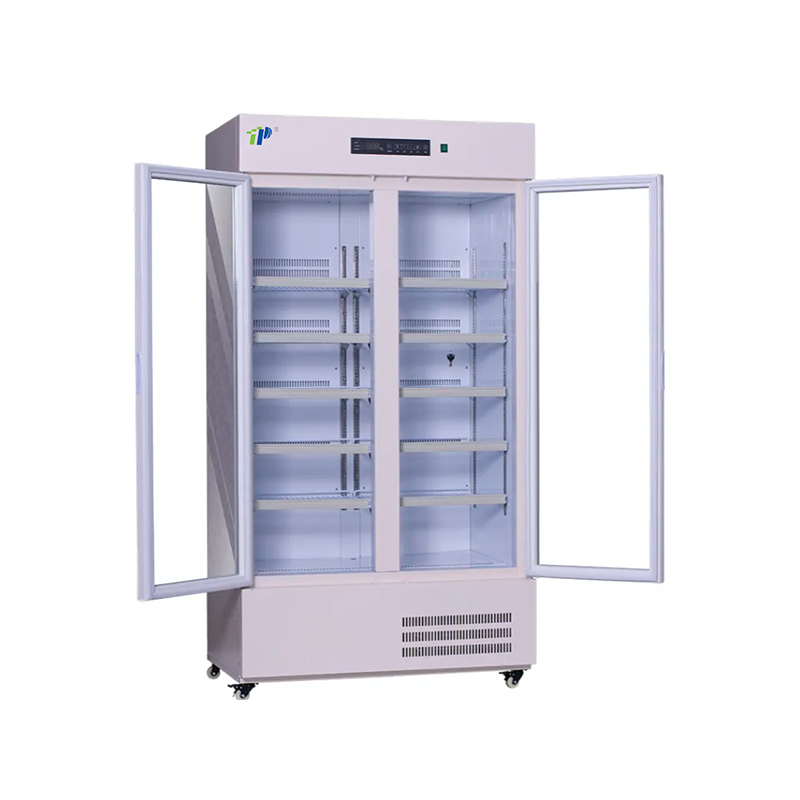

Model | TYC-L400 | TYC-L560 | TYC-L660 | TYC-L760 | TYC-L1160 | TYC-L1360 |
Volume (L) | 400 | 560 | 660 | 760 | 1160 | 1360 |
Temperature range (℃) | 4±1 | |||||
Rated voltage/frequency (V/Hz) | 220/50 | |||||
Rated power (W) | 430 | 490 | 550 | 580 | 650 | 850 |
Power consumption (KWh/24h) | 5.2 | 5.9 | 6.5 | 7.2 | 7.8 | 8.6 |
Electric shock protection types | I | |||||
Climate type | N | |||||
Net weight (kg) | 115 | 131 | 175 | 158 | 171 | 195 |
Noise (dbA) | 55 | 55 | 55 | 55 | 55 | 55 |
Insulation layer Thickness (mm) | 60 | 45 | 60 | 60 | 60 | 45 |
Set aside network/board (layer) | 5 | 5 | 5 | 5 | 5 | 5 |
Product dimensions (mm) | 680*745*1870 | 1200*650*1890 | 1100*685*2080 | 1200*685*1870 | 1800*745*1870 | 1880*745*2070 |
Inner box dimensions (mm) | 570*610*1380 | 560*560*1230 | 985*565*1595 | 1080*610*1380 | 1680*610*1380 | 1790*590*1570 |
Packaging Material 1 | Wooden pallet + carton | |||||
Packaging size | 750*790*1930 | 1270*720*1950 | 1170*755*2190 | 1270*790*1930 | 1880*790*1930 | 1960*790*2130 |
Structure | TOP-mounted unit | Bottom-mounted unit | Bottom-mounted unit | TOP-mounted unit | TOP-mounted unit | Bottom-mounted unit |
Certificate |
Product configuration
style | vertical | Cabinet lighting fixtures | LED | Roller form | Self locking universal rubber roller |
Color | white orange pattern | thermostat | Microcomputer LED digital display temperature controller | Outer door | Electric heating tempered glass door |
Cooling method | Air cooling | Thermal insulation material | Cyclopentane polyurethane foam insulation layer | Inner door | Acrylic board material |
compressor | SECOP | cryogen | R134a | Handle | Embedded handle/aluminum alloy handle |
evaporator | Copper tube finned evaporator | Outer box material | Cold rolled steel plate, electrostatic spraying | Door sealing strip | Rubber strip airbag door seal |
condenser | Copper tube finned condenser | Inner box material | 304 stainless steel | Alarm method | Beep sound and flashing display alarm |
Evaporative fan | Yes | lock | Alloy industrial cabinet lock | Alarm function | High and low temperature alarm, sensor fault alarm, door opening alarm, power outage alarm |
Condenser fan | EBM | Net basket | Immersion mesh basket | ||
Optional configuration | 304 stainless steel liner/foam door/window door/remote monitoring/USB data interface/temperature recorder/printer |
