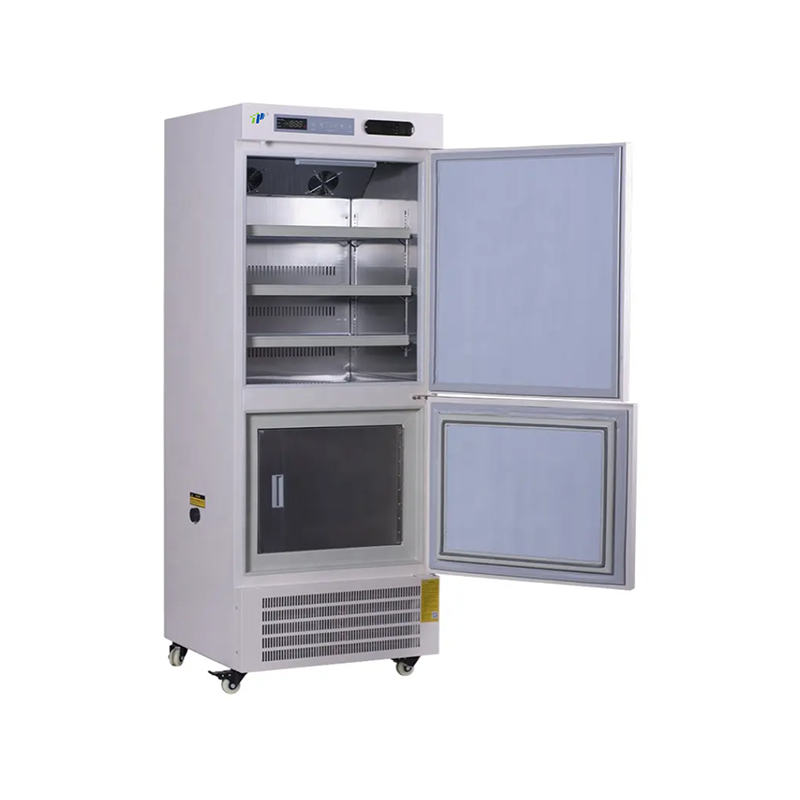

TCD Series
TOP
Features:
Temperature control
Microcomputer digital control, real-time temperature display, adjustment unit is 0.1 ℃;
The temperature inside the box can be adjusted, and the temperature difference between the start and stop can be set;
The alarm temperature value can be set as needed,
Safety system
Equipped with a comprehensive alarm system, with buzzer sound and flashing light alarm Functions.
It can achieve functions such as high and low temperature alarm, sensor fault alarm, etc;
Multiple protection functions (password protection, frequent start protection, keeping the refrigeration system running in case of sensor failure)
Refrigeration system
Ultra thick foam layer, dual sealing design of the door body, effectively protecting the internal temperature;
Optimize the self stacking refrigeration system, import compressors, with strong and efficient refrigeration capacity;
Reasonable evaporator design ensures effective flow of refrigerant and good temperature uniformity inside the box;
Unique fluorine free environmentally friendly mixed refrigerant;
Single compressor system, with few components, low failure rate, and low energy consumption;
Adopting German EBM silent fan, with stable and long-lasting performance, low noise
Humanized Design
Built in adjustable stainless steel shelf, adjustable as needed, flexible and convenient to use, easy to clean;
Food grade 304 stainless steel inner liner, ensuring safety and security;
Universal caster design, easy to move;
Safe door lock design to prevent unauthorized opening;
The pressure balance design inside the box also serves as a testing hole, making it convenient to use;
LED temperature display, easy to observe, clear and intuitive;
Suitable for use in environments ranging from 10C to 32 ℃;
Dual system independent control, precise and reliable;
Wide voltage band design, suitable for use at 187V~242VAC voltage
Features:
Temperature control
Microcomputer digital control, real-time temperature display, adjustment unit is 0.1 ℃;
The temperature inside the box can be adjusted, and the temperature difference between the start and stop can be set;
The alarm temperature value can be set as needed,
Safety system
Equipped with a comprehensive alarm system, with buzzer sound and flashing light alarm Functions.
It can achieve functions such as high and low temperature alarm, sensor fault alarm, etc;
Multiple protection functions (password protection, frequent start protection, keeping the refrigeration system running in case of sensor failure)
Refrigeration system
Ultra thick foam layer, dual sealing design of the door body, effectively protecting the internal temperature;
Optimize the self stacking refrigeration system, import compressors, with strong and efficient refrigeration capacity;
Reasonable evaporator design ensures effective flow of refrigerant and good temperature uniformity inside the box;
Unique fluorine free environmentally friendly mixed refrigerant;
Single compressor system, with few components, low failure rate, and low energy consumption;
Adopting German EBM silent fan, with stable and long-lasting performance, low noise
Humanized Design
Built in adjustable stainless steel shelf, adjustable as needed, flexible and convenient to use, easy to clean;
Food grade 304 stainless steel inner liner, ensuring safety and security;
Universal caster design, easy to move;
Safe door lock design to prevent unauthorized opening;
The pressure balance design inside the box also serves as a testing hole, making it convenient to use;
LED temperature display, easy to observe, clear and intuitive;
Suitable for use in environments ranging from 10C to 32 ℃;
Dual system independent control, precise and reliable;
Wide voltage band design, suitable for use at 187V~242VAC voltage
Technical data
Model | TCD-L400 | Type | Upright | |
Net volume(litre) | UP 280L,Down 120L | Temperature Range (Deg Centigrade) | UP 2-8℃,Down -25℃/-40℃/-60℃ | |
Cooling method | UP:fan cooling/Down:static | Power supply(V) /Frequency(Hz) | 220V/50Hz | |
Rated Power(W) | 600W | Power consumption(KWH/24H) | 8.5kw.h/24h | |
Protection class | I | Climate | N | |
Refrigerant | UP:R404,DOWN:R404 | Compressors | Secop | |
Colour | Orange beige | Thermostat | Up:C306 /Down :keld | |
Temperature Display | Digital display LED | Shelves(PCS) | UP:Wire 2 pcs Down:Sus304 1pcs | |
Condensate fan | EBM | Evaporator | Copper pipe Fin | |
External material | Epoxy polyester powder coated steel plate | Inner liner material | SUS304 | |
Caster | 2Inch Universal wheel | N.W | 132kg | |
Dimensions interior L*W*H(mm) | UP:660*610*800 DOWN:553*524*425 | Dimensions Exterior L*W*H(mm) | 750*715*1980 | |
Plywood packing | 820*805*2130 |
Model | TCD-L200 | Type | Upright |
Net volume(litre) | UP 125L,Down 75L | Temperature Range (Deg Centigrade) | UP 2-8℃,Down -25℃/-40℃/-60℃ |
Cooling method | UP:fan cooling/Down:static | Power supply(V) /Frequency(Hz) | 220V/50Hz |
Rated Power(W) | 420W | Power consumption | 450W |
Protection class | I | Climate | N |
Refrigerant | UP:R404,DOWN:R404 | Compressors | Secop |
Colour | Orange beige | Thermostat | Up:C306 /Down :keld |
Temperature Display | Digital display LED | Shelves(PCS) | UP:Wire 2 pcs Down:Sus304 1pcs |
Condensate fan | EBM | Evaporator | Copper pipe Fin |
External material | Epoxy polyester powder coated steel plate | Inner liner material | SUS304 |
Caster | 2Inch Universal wheel | N.W | 108kg |
Dimensions interior L*W*H(mm) | UP:530*490*540 DOWN:425*435*410 | Dimensions Exterior L*W*H(mm) | 620*650*1680 |
Technical data
Model | TCD-L400 | Type | Upright | |
Net volume(litre) | UP 280L,Down 120L | Temperature Range (Deg Centigrade) | UP 2-8℃,Down -25℃/-40℃/-60℃ | |
Cooling method | UP:fan cooling/Down:static | Power supply(V) /Frequency(Hz) | 220V/50Hz | |
Rated Power(W) | 600W | Power consumption(KWH/24H) | 8.5kw.h/24h | |
Protection class | I | Climate | N | |
Refrigerant | UP:R404,DOWN:R404 | Compressors | Secop | |
Colour | Orange beige | Thermostat | Up:C306 /Down :keld | |
Temperature Display | Digital display LED | Shelves(PCS) | UP:Wire 2 pcs Down:Sus304 1pcs | |
Condensate fan | EBM | Evaporator | Copper pipe Fin | |
External material | Epoxy polyester powder coated steel plate | Inner liner material | SUS304 | |
Caster | 2Inch Universal wheel | N.W | 132kg | |
Dimensions interior L*W*H(mm) | UP:660*610*800 DOWN:553*524*425 | Dimensions Exterior L*W*H(mm) | 750*715*1980 | |
Plywood packing | 820*805*2130 |
Model | TCD-L200 | Type | Upright |
Net volume(litre) | UP 125L,Down 75L | Temperature Range (Deg Centigrade) | UP 2-8℃,Down -25℃/-40℃/-60℃ |
Cooling method | UP:fan cooling/Down:static | Power supply(V) /Frequency(Hz) | 220V/50Hz |
Rated Power(W) | 420W | Power consumption | 450W |
Protection class | I | Climate | N |
Refrigerant | UP:R404,DOWN:R404 | Compressors | Secop |
Colour | Orange beige | Thermostat | Up:C306 /Down :keld |
Temperature Display | Digital display LED | Shelves(PCS) | UP:Wire 2 pcs Down:Sus304 1pcs |
Condensate fan | EBM | Evaporator | Copper pipe Fin |
External material | Epoxy polyester powder coated steel plate | Inner liner material | SUS304 |
Caster | 2Inch Universal wheel | N.W | 108kg |
Dimensions interior L*W*H(mm) | UP:530*490*540 DOWN:425*435*410 | Dimensions Exterior L*W*H(mm) | 620*650*1680 |
