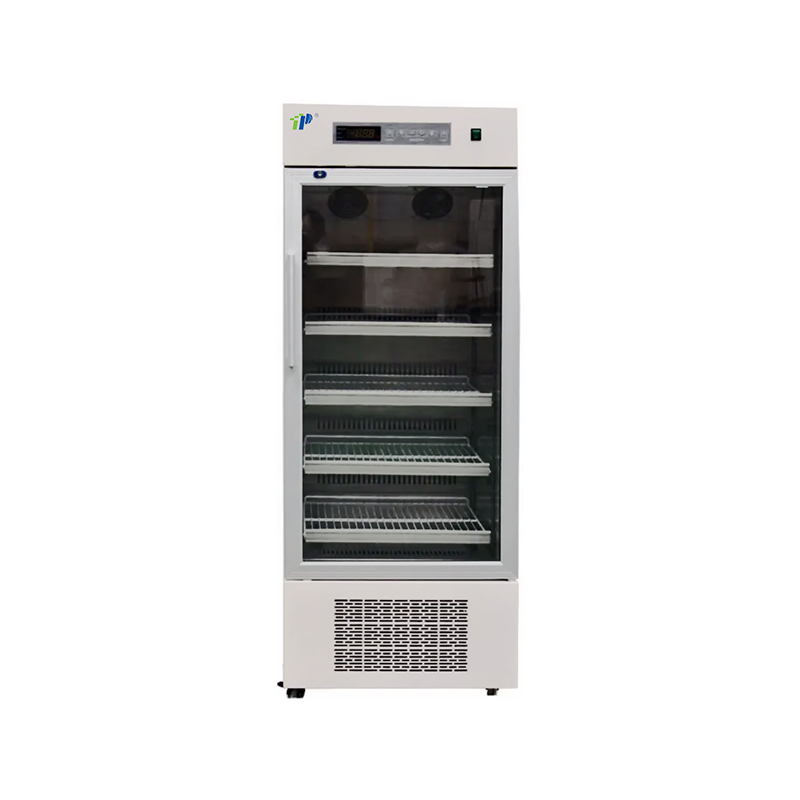

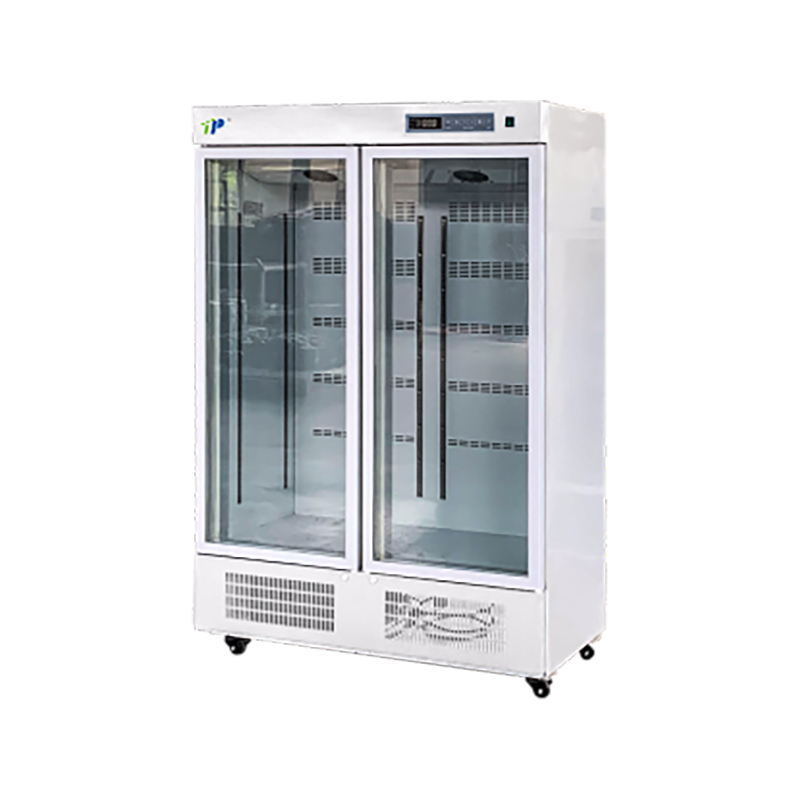

TLC Series
TOP
Features:
Temperature control:
Microcomputer digital control, real-time display of temperature and humidity,
Display accuracy 0.1~℃;
The temperature inside the box is controlled within the range of 2 ℃~8C;
Configure temperature and humidity display, recording, and data transmission functions as required to meet GSP requirements.
Safety system:
Multiple fault alarms
High and low temperature alarm, power outage alarm, door opening alarm, sensor failure alarm:
Multiple alarm methods
Sound buzzing alarm, flashing light alarm
Refrigeration system:
Using well-known brand compressors, with stable and reliable performance and long service life;
Using German EBM silent fan, with stable and long-lasting performance and low noise;
Unique fluorine free and environmentally friendly refrigerant;
User-friendly design:
Convenient access: shelves with label strips for easy identification and storage of drugs by users;
High safety: The door body is equipped with a safety lock, and the inner liner is made of 304 stainless steel material;
Energy saving: Built in lighting, high brightness and energy-saving, making the reagents inside the cabinet clear at a glance; Strong applicability: Designed with a wide voltage range of 187V~242V, suitable for environments with unstable voltage,
Features:
Temperature control:
Microcomputer digital control, real-time display of temperature and humidity,
Display accuracy 0.1~℃;
The temperature inside the box is controlled within the range of 2 ℃~8C;
Configure temperature and humidity display, recording, and data transmission functions as required to meet GSP requirements.
Safety system:
Multiple fault alarms
High and low temperature alarm, power outage alarm, door opening alarm, sensor failure alarm:
Multiple alarm methods
Sound buzzing alarm, flashing light alarm
Refrigeration system:
Using well-known brand compressors, with stable and reliable performance and long service life;
Using German EBM silent fan, with stable and long-lasting performance and low noise;
Unique fluorine free and environmentally friendly refrigerant;
User-friendly design:
Convenient access: shelves with label strips for easy identification and storage of drugs by users;
High safety: The door body is equipped with a safety lock, and the inner liner is made of 304 stainless steel material;
Energy saving: Built in lighting, high brightness and energy-saving, making the reagents inside the cabinet clear at a glance; Strong applicability: Designed with a wide voltage range of 187V~242V, suitable for environments with unstable voltage,
Technical data
Model | TLC-288 | TLC-388 | TLC-L668 | TLC-L868 | TLC-L1008 |
Volume (L) | 288 | 388 | 668 | 868 | 1008 |
Temperature range (℃) | 2~8 | ||||
Rated voltage/frequency (V/Hz) | 220 V 50Hz | ||||
Rated power (W) | 300 | 320 | 420 | 450 | 500 |
Power consumption (KWh/24h) | 3.9 | 4.3 | 5.5 | 6.1 | 6.5 |
Electric shock protection types | I | ||||
Climate type | N | ||||
Net weight (kg) | 94 | 107 | 155 | 178 | 194 |
Noise (dbA) | 52 | 52 | 55 | 55 | 52 |
Insulation layer Thickness (mm) | 40 | 40 | 60 | 60 | 60 |
Set aside network/board (layer) | 5 | 5 | 5 | 5 | 5 |
Product dimensions (mm) | 605*675*1610 | 605*675*1925 | 1220*625*1885 | 1220*755*1885 | 1220*855*1885 |
Inner box dimensions (mm) | 525*575*1050 | 525*575*1366 | 1100*504*1325 | 1100*634*1325 | 1100*734*1325 |
Packaging Material 1 (Regular) | Wooden pallet + carton | ||||
Packaging size 1 (regular) | 685*765*1705 | 685*765*2025 | 1300*705*1985 | 1300*835*1985 | 1300*940*1985 |
Packaging material 2 | Plywood | ||||
Packaging size 2 (mm) | 695*775*1760 | 695*775*2075 | 1310*715*2035 | 1310*845*2035 | 1310*950*2035 |
Structure | Bottom-mounted uni | Bottom-mounted unit | Bottom-mounted unit | Bottom-mounted unit | Bottom-mounted unit |
Certificate |
Product configuration
Style | Vertical | Condenser fan | Yes | Roller form | Self-locking universal rubber wheels |
Color | milky white | Cabinet lighting | LED | Put on the net | Plastic dipping |
Cooling method | Air-cooled | Thermostat | Microcomputer LED digital display temperature controller | Door | Plastic profile frame double-layer hollow glass door |
Compressor | Yes | Insulation material | Cyclopentane polyurethane foam insulation layer | Pulling hands | Embedded handle |
Evaporator | Blowdown evaporator | Refrigerant | R134a | Door seal strip | Rubber belt airbag door seal |
Condenser | Silicone tube condenser | Outer box, inner box materials | Cold-rolled steel sheet, electrostatic spraying | Alarm method | Bee buzzing sound and display flashing alarm |
Evaporative fan | Yes | Lock | Alloy industrial cabinet lock | Alarm function | High and low temperature alarm, sensor failure alarm, door open alarm, power failure alarm |
Optional configuration | Remote monitoring / USB data interface / Temperature recorder / Printer |
