Water Quality Monitoring Devices
You are here: home » Products » Laboratory Water Purification » Water Quality Monitoring Devices

Product Category

Water Quality Monitoring Devices

Water quality monitoring devices provide real-time data on critical parameters such as resistivity, conductivity, TOC levels, temperature, and flow. These instruments help laboratories verify system performance, maintain documentation for compliance, and ensure water meets required specifications. Integrated or standalone sensors are commonly used with pure and ultrapure water systems to continuously monitor output quality. Accurate and reliable monitoring is essential for laboratories operating under GLP, GMP, or ISO standards.


  • Online UV COD TOC Turbidity Sensor | RS485 MODBUS Water Quality Analyzer with Automatic Cleaning
    COD Range: 0–600 mg/L (±5% F.S, 0.1 mg/L resolution)
    TOC Range: 0–240 mg/L (±5% F.S, 0.1 mg/L resolution)
    Turbidity Range: 0–300 NTU (±5% F.S, 0.1 NTU resolution)
    Light Source: 254nm UV-LED with 365nm turbidity compensation
    Interface: RS-485 MODBUS, 4–20mA output
    Operating Conditions: 5–40℃, max depth 10m, IP68 protection
    Installation: Flow cell or submersible mounting, 10m cable

    Model: TUV254
    Add to Basket

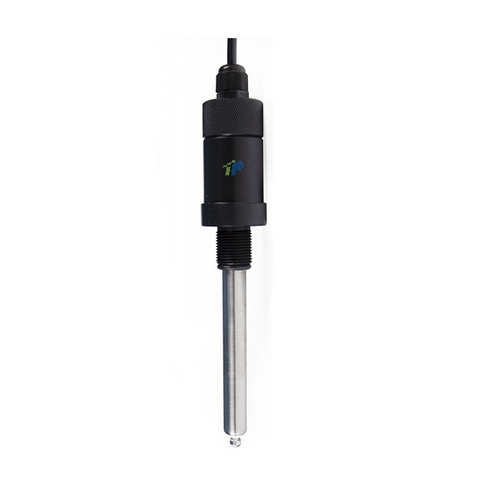

  • PT-DC908 Digital Ozone Sensor with RS485 MODBUS, 0–20 mg/L Measurement, Stainless Steel Housing, Temperature Compensation, Online Water Quality Monitoring
    Measuring Range: 0.00–20.00 mg/L Ozone, Resolution: 0.01 mg/L, Accuracy: ±5% F.S
    Temperature Range: -10.0–110.0℃, Accuracy: ±0.5℃, Auto/Manual Compensation
    Communication: RS-485, MODBUS-RTU protocol, bidirectional data transmission
    Power Supply: 9–27 VDC, Low power consumption <0.5 W, Isolation strength 2500 Vrms
    Housing Material: 316 Stainless Steel, Corrosion-resistant, IP-rated durability
    Installation: PG13.5 thread, Easy mounting, 5 m cable included
    Dimension: Φ64 mm × 271 mm, Compact design for industrial applications

    Model: PT-DC908
    Add to Basket
  • PT-DE26 Online Conductivity Sensor – RS485/MODBUS, Temperature Compensated, IP68 Waterproof, 0–200 mS/cm
    Measuring Range: 0–20 mS/cm, 0–200 mS/cm | Accuracy: ≤±1% | Response Time: ≤15 s
    Measured Variables: Conductivity, Resistivity, TDS, Salinity | Temperature Range: 0–60℃, Accuracy: ≤±0.3℃
    Built-in temperature sensor with automatic water temperature compensation
    Digital Output: RS-485, MODBUS-RTU; Two-way communication, low power consumption (0.5 W)
    Construction: Graphite electrode, ink/epoxy/ABS housing, 316L liquid connection, IP68 waterproof
    Installation: Flow-through tank, pipe, or sink mounting; Coaxial design ensures stability and anti-interference
    Power Supply: 12–24 VDC; Cable length: 5 m standard, customizable

    Model: PT-DE26
    Add to Basket
  • PT-DH320 Online Water Hardness Sensor – Digital ISE Ion Sensor, High Accuracy, RS485/MODBUS, IP68 Waterproof
    Measurement Range: 0.2–40000 ppm, Resolution: 0.001 mg/L, Accuracy: ±5% F.S
    Temperature Range: 0–50℃, Resolution: 0.1℃, Accuracy: ±0.5℃, Automatic Temperature Compensation
    Digital Output: RS485, MODBUS-RTU; Easy integration with PLCs, computers, and IoT systems
    Two-point calibration; Adjustable slave address, baud rate, range, and coefficients online
    Housing Material: PPS, ABS, PC+Stainless Steel; Protection Grade: IP68
    Installation: Flow cell, Submerged, 3/4″ NPT threads; Cable length: 5 m
    Low power consumption: <1 W; Compact dimensions: Φ39×205 mm

    Model: PT-DH320
    Add to Basket
  • PT-DpH07 Online pH Composite Electrode – High Accuracy, Fast Response, IP68 Waterproof, MODBUS/RS485, 0-14pH
    Measurement Range: 0.00–14.00 pH, Accuracy: ≤±0.02 pH, Resolution: 0.01 pH
    Response Time: 20 sec; Drift: ≤±0.1 pH/24h; Sensitive Membrane Impedance: ≤500 MΩ
    Stable reference system: Ag/AgCl with gel electrolyte, excellent anti-pollution performance
    PTFE diaphragm for long-term online monitoring without clogging
    Operating Temperature: 0–60℃, Waterproof Rating: IP68
    Output Mode: MODBUS / RS-485, Power Supply: 12–24 VDC, Rated Power: <0.5 W
    Installation: 3/4″ NPT Thread, suitable for online water quality monitoring

    Model: PT-DpH07
    Add to Basket
  • PT-DN85 Online Ammonia Nitrogen Sensor – Real-Time NH4-N Monitoring, Reagent-Free, Self-Cleaning, MODBUS/RS485, IP68
    Measurement Range: 0–100 mg/L NH4-N, Accuracy: ±10% or ±0.5 mg/L, Resolution: 0.01 mg/L
    pH Range: 0–10, Accuracy: ±0.1 pH, Resolution: 0.01
    Automatic compensation: pH, temperature, optional potassium ion
    Housing Material: POM, compact, corrosion-resistant; Protection Class: IP68, Maximum depth: 10 m
    Self-cleaning brush for low maintenance and long-term reliability
    Digital Output: RS-485, MODBUS protocol, strong anti-interference signal
    Power Supply: 12VDC±20%, Current <100 mA (<200 mA during cleaning), Cable Length: 10 m (customizable)

    Model: PT-DN85
    Add to Basket
  • Laboratory Ultrapure Water Systems – 10L/20L Capacity with Online TOC Monitoring for Pharmaceutical & Semiconductor Applications
    Water Production Capacity: 10L, 20L models (varies by series)
    Water Quality: Resistivity ≥ 18.25 MΩ·cm, TOC <1-3 ppb, Microorganisms ≤ 1 cfu/mL
    Inlet Water Source: Urban tap water; TDS ≤ 100-400 ppm depending on model
    Water Purification Process: Pre-treatment, RO (single or dual stage), EDI, polishing mixed bed, with optional boron removal
    Power Supply: AC220V, 50Hz, <1KW
    Host Size: 960×540×1420 mm (all models)
    Applications: Suitable for biochemical reagents, pharmaceutical preparations, molecular biology, semiconductor labs, HPLC, ICP-MS, PCR, cell culture, and high-precision instrument water supply

    Model: Pure series
    Add to Basket
  • High Capacity Laboratory Pure & Ultrapure Water Systems with TOC Online Monitoring – 150L to 400L per Hour
    Water production capacity: 150L, 250L, 400L per hour options
    Water source adaptability: Suitable for urban tap water with TDS ≥ 100 ppm (Pure-J, Pure-S) or < 100 ppm (Pure-Y)
    Multi-stage purification process: Pre-treatment + RO + EDI + polishing mixed bed + purification distribution
    Produced water quality: Resistivity ≥ 18.25 MΩ·cm, TOC < 1ppb (Pure-J & Pure-S) or < 3ppb (Pure-Y), Microorganisms ≤ 1 cfu/mL
    Equipped with real-time TOC online detection (range 0.05ppb - 2000ppb) and remote monitoring via APP
    Advanced safety and automation features: automatic flushing, water level interlock, pressure alarms, leakage protection
    Application scope: Biochemical, pharmaceutical, environmental monitoring, HPLC, PCR, molecular biology, and more

    Model: Pure series
    Add to Basket
  • Portable Microbial Online Detection Instrument for Real-Time Water Quality Monitoring with 10,000 CFU Range
    Continuous microbial detection with 0–10,000 CFU/100ml range and 1 CFU precision
    Real-time results with 15-second frame response time and 10-minute initial response
    Portable design with 10-inch high-precision touchscreen and 32-bit data processor
    Suitable for purified water, ultrapure water, and water for injection (WFI)
    Data output via USB and 4-20 mA configurable analog signal
    Operating temperature range: 5°C–60°C; noise level ≤ 40dB(A)
    Stainless steel housing (40×40×25 cm), weighing 11 kg

    Model: P-CFU-1000A
    Add to Basket
  • Portable TOC Online Detector for Pharmaceutical Purified Water – High Sensitivity Total Organic Carbon Analyzer with Touch Screen
    Measuring range: 0.05 ppb – 2000 ppb (μg/L)
    Detection limit: 0.03 ppb (μg/L) with 0.01 ppb resolution
    Accuracy: ±4%, repeatability ≤ 2%
    Sample temperature range: 1–50°C, flow rate 2–5 mL/min
    Initial response time: 60 seconds; single analysis time: 15 seconds
    Portable design with color touch screen and Chinese display
    Applications: Online & lab testing of pharmaceutical purified and injection water

    Model: P-TOC-50A
    Add to Basket
