PT-DC908
TOP

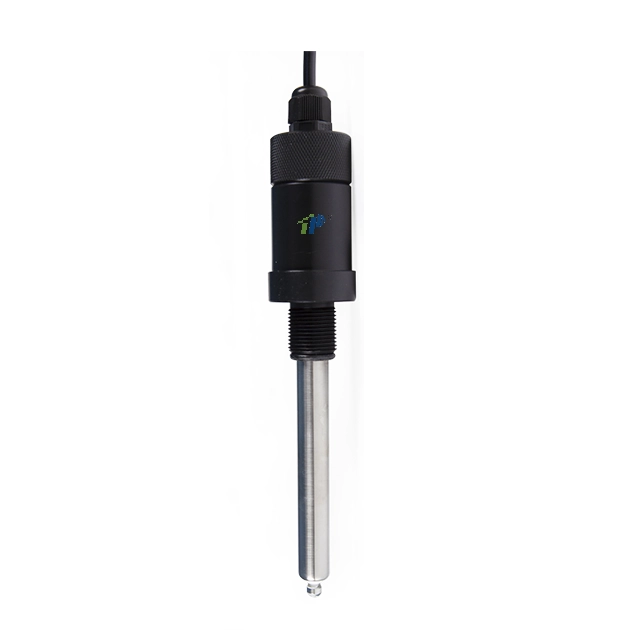

This product is a digital sensor with electronic circuit and microprocessor integrated inside the sensor, referred to as digital electrode.
This product is a digital sensor with electronic circuit and microprocessor integrated inside the sensor, referred to as digital electrode.
Product features
1. RS-485 transmission interface, MODBUS-RTU communication protocol, two-way communication.
2. Power supply and output isolation design to ensure electrical safety.
3. Built-in protection circuit to enhance anti-interference ability to adapt to the complex environment.
4. Simple and easy-to-use communication protocol, able to output more electrode diagnostic information, more intelligent.
5. Low power consumption design to cope with more occasions of use, internal memory can save calibration and setting information in case of power failure.
6. PPS shell, strong corrosion resistance, 1/2 thread, easy to install.
Product features
1. RS-485 transmission interface, MODBUS-RTU communication protocol, two-way communication.
2. Power supply and output isolation design to ensure electrical safety.
3. Built-in protection circuit to enhance anti-interference ability to adapt to the complex environment.
4. Simple and easy-to-use communication protocol, able to output more electrode diagnostic information, more intelligent.
5. Low power consumption design to cope with more occasions of use, internal memory can save calibration and setting information in case of power failure.
6. PPS shell, strong corrosion resistance, 1/2 thread, easy to install.
Item | Detailed parameters | |
Ozone | Measuring range | 00.00mg/L～20.00mg/L |
Resolution | 0.01 | |
Measurement accuracy | 5%F.S | |
Temperature
| Measuring range | －10.0～110.0℃ |
Resolution | 0.1℃ | |
Measurement accuracy | ±0.5℃ | |
Temperature type | Thermistor TH10K | |
Temperature compensation | Auto/Manual | |
Sensor Interface | Support RS-485, MODBUS-RTU communication protocols | |
Operating Power | 9~27VDC | |
Isolation strength | 2500Vrms | |
Product Power | Approx. 0.5W | |
Product material | 316 stainless steel housing | |
Installation | PG13.5 thread | |
Wire Length | 5 metres | |
Dimension | Φ64mm * 271mm | |
Item | Detailed parameters | |
Ozone | Measuring range | 00.00mg/L～20.00mg/L |
Resolution | 0.01 | |
Measurement accuracy | 5%F.S | |
Temperature
| Measuring range | －10.0～110.0℃ |
Resolution | 0.1℃ | |
Measurement accuracy | ±0.5℃ | |
Temperature type | Thermistor TH10K | |
Temperature compensation | Auto/Manual | |
Sensor Interface | Support RS-485, MODBUS-RTU communication protocols | |
Operating Power | 9~27VDC | |
Isolation strength | 2500Vrms | |
Product Power | Approx. 0.5W | |
Product material | 316 stainless steel housing | |
Installation | PG13.5 thread | |
Wire Length | 5 metres | |
Dimension | Φ64mm * 271mm | |
