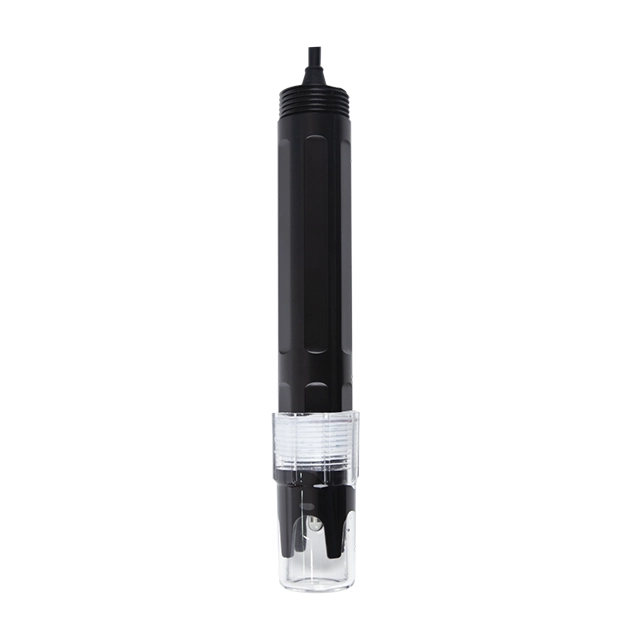

ORP Sensor Electrode PT-DR31 – Online Oxidation-Reduction Potential Measurement, MODBUS/RS485, IP68 Waterproof
Measurement Range: -2000 to 2000 mV, Accuracy: ±15%, Resolution: 1 mV
Electrode Material: PTFE anti-fouling, Platinum, PC housing
Gel electrolyte resists interference from external ions and pressure changes
Digital output: MODBUS/RS485; Calibration: One-point calibration
Installation: 3/4″ NPT Thread, Cable length: 5 m (customizable)
Operating Temperature: 0–60℃, Waterproof Rating: IP68
Low power consumption: <0.5 W
Electrode Material: PTFE anti-fouling, Platinum, PC housing
Gel electrolyte resists interference from external ions and pressure changes
Digital output: MODBUS/RS485; Calibration: One-point calibration
Installation: 3/4″ NPT Thread, Cable length: 5 m (customizable)
Operating Temperature: 0–60℃, Waterproof Rating: IP68
Low power consumption: <0.5 W
| Quantity: | |
|---|---|
-
PT-DR31
-
TOP
ORP (Oxidation Reduction Potential) is a qualitative test of the redox capacity of a body of water. Since the water body in nature is a mixed system of redox, the ORP electrode reflects a mixed potential. It responds to a description of a relative state, and the ORP value of a body of water near a certain numerical point indicates a state of reduction or oxidation of the body of water, or a certain property of the solution (degree of hygiene, etc.). In addition, the temperature has an effect on the ORP value, but it cannot be corrected, so the ORP electrode generally does not have a temperature compensation function.
ORP (Oxidation Reduction Potential) is a qualitative test of the redox capacity of a body of water. Since the water body in nature is a mixed system of redox, the ORP electrode reflects a mixed potential. It responds to a description of a relative state, and the ORP value of a body of water near a certain numerical point indicates a state of reduction or oxidation of the body of water, or a certain property of the solution (degree of hygiene, etc.). In addition, the temperature has an effect on the ORP value, but it cannot be corrected, so the ORP electrode generally does not have a temperature compensation function.
