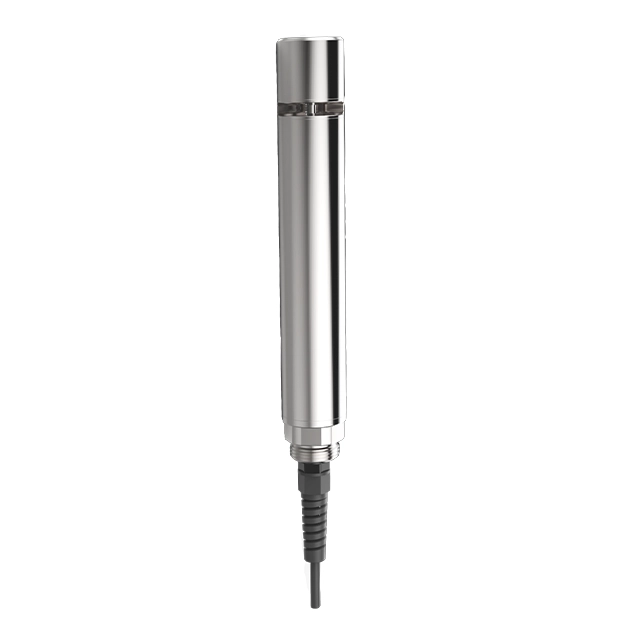

TUV254
TOP
This instrument adopts 254nm deep ultraviolet LED, small size, long life. 254nm deep ultraviolet beam in the transmission process is dissolved in the water of organic matter absorption, the degree of absorption is proportional to the concentration of organic matter, so that you can determine the deep ultraviolet beam absorbance to assess the content of organic pollutants in the sample. Built-in 365nm wavelength light source used in turbidity compensation, effectively eliminating turbidity interference.
This instrument adopts 254nm deep ultraviolet LED, small size, long life. 254nm deep ultraviolet beam in the transmission process is dissolved in the water of organic matter absorption, the degree of absorption is proportional to the concentration of organic matter, so that you can determine the deep ultraviolet beam absorbance to assess the content of organic pollutants in the sample. Built-in 365nm wavelength light source used in turbidity compensation, effectively eliminating turbidity interference.
Product Features
- Optical measurement
Optical measurement, no reagents, no pollution.
- Automatic compensation
Built-in 254nm and 365nm dual optical path, automatic compensation for turbidity interference.
- Automatic cleaning
With wiper, with automatic cleaning function, to prevent biological adhesion.
- Fast response
Imported LED light source, small drift, fast response, more reliable measurement.
- Compact and portable
Compact size, more convenient installation, can be online uninterrupted water quality monitoring.
Product Features
- Optical measurement
Optical measurement, no reagents, no pollution.
- Automatic compensation
Built-in 254nm and 365nm dual optical path, automatic compensation for turbidity interference.
- Automatic cleaning
With wiper, with automatic cleaning function, to prevent biological adhesion.
- Fast response
Imported LED light source, small drift, fast response, more reliable measurement.
- Compact and portable
Compact size, more convenient installation, can be online uninterrupted water quality monitoring.
COD Measurement Range | 0～600 mg/L equiv.KHP |
COD Accuracy | ±5%F.S |
COD Resolution | 0.1mg/L |
TOC Measurement Range | 0～240mg/L equiv.KHP |
TOC precision | ±5%F.S |
TOC Resolution | 0.1mg/L |
Turbidity Measurement Range | 0～300NTU |
Turbidity Accuracy | ±5%F.S |
Turbidity Resolution | 0.1NTU |
Operating Temperature | 5～40℃ |
Deepest Depth | 10 metres underwater |
Digital Interface | MODBUS/RS-485 |
Analogue interface | 4-20mA |
Power supply | 12～24VDC |
Calibration | One point/two point/three point calibration |
Protection class | IP68 |
Mounting type | Flow cell installation, submerged installation |
Dimension | φ34×232mm |
Cable Length | 10 metres, other lengths can be customised |
Electrode Material | 316 stainless steel |
