Eyepieces Available: WF10X/20, WF15X/15, WF20X/10
Objectives: 1x / 2x / 3x / 4x switchable
Total Magnification: 10x to 80x depending on eyepiece and objective combination
Field of View: Ranges from 20mm (WF10X/1x) to 2.5mm (WF20X/4x)
Working Distance: Long 100mm for wide sample compatibility
Viewing Head: Binocular observation head
Applications: Ideal for precision inspection, industrial quality control, and educational use


Viewing Head: Binocular observation head with wide angle eyepiece WF10X/18mm
Objectives: Infinity achromatic objectives 4X, 10X, 40X (optional: 20X, 80X)
Stage: Double-deck mechanical stage, 150×140mm, travel range 75×50mm
Focus: Coaxial coarse and fine focusing mechanism
Illumination: Vertical reflected light system, 6V/20W halogen lamp, adjustable brightness
Filters: Blue, green, yellow, frosted glass film included
Optional: Polarising device and WF10X eyepiece with scale


Viewing Head: Monocular or hinged binocular (55–75mm interpupillary)
Eyepieces: Wide-angle WF10X/18mm standard; optional WF16X, WF20X
Objectives: DIN achromatic objectives 4X–100X (including oil lens optional)
Stage: Double-layer mechanical stage or simple stage (varies by model)
Illumination: LED, halogen, or incandescent; dimmable options available
Converters: External 3-hole or 4-hole nosepiece
Accessories (optional): Moving ruler, spotting scope, carrying case, camera


Magnification Range: 50x – 1000x
Eyepiece: WF10× (wide field), high-eye point, adjustable diopter
Objective Lens: Infinity plan achromatic objectives (4×, 10×, 40×, 100× oil)
Illumination: LED transmitted light, adjustable brightness
Stage: Double-layer mechanical stage, 140×140mm, movement range 75×50mm
Focus System: Coaxial coarse & fine focusing, adjustable tension, focusing range 30mm


Viewing Head: Hinged Binocular Head
Goggles:
Flat Field Eyepiece PL10X-18mm
Flat Field Eyepiece PL10X-18mm with Cross Section
Converter: Four-hole converter for internal positioning
Objective Lens: Infinity Stressless Flat Field Objective ∞ 4X/0.1, 10X/0.25, 40X/0.65 (with spring), 60X/0.8 (with spring)
Polarisation Detectors: 360º rotatable deflector set (modular, lockable)
Borescope: Built-in centre-adjustable Borescope
Optical Range Compensator: λ test plate (Class I red), 1/4 λ test plate, quartz wedge test plate (Class I-IV)
Spotting scopes: N.A. 1.25 Abbe-type spotting scope (unstressed) with variable light bar and filter holder
Lighting System: Halogen lamp 6V/20W, AC85-230V. light adjustable


Viewing head: Monocular head 30° tilt, 360° rotation
Eyepiece: WF10X-18mm
Objective (optics)
DIN achromatic objective 4X/NA0.10
DIN achromatic objective 10X/NA0.25
DIN achromatic objective 40XR/NA0.65
Converter: Three-hole converter with positioning
Lightbar: Variable light bar
Spotting Lens: NA1.25 Abbe Spotting Lens
Illumination: LED illumination with rechargeable battery, adjustable brightness


Viewing head: Trinocular Viewing Head
Zoom body: 0.7x-4.5x continuous magnification
Eyepiece: WF10X/18mm wide angle eyepiece with eyecups
Objective lens: 1x
CCD eyepiece: 0.5x
AM35 camera: AV Output
8’ LCD display: AV input/VGA input with crosshair, multi-language
Lighting: LED ring light (24 LEDs), adjustable light

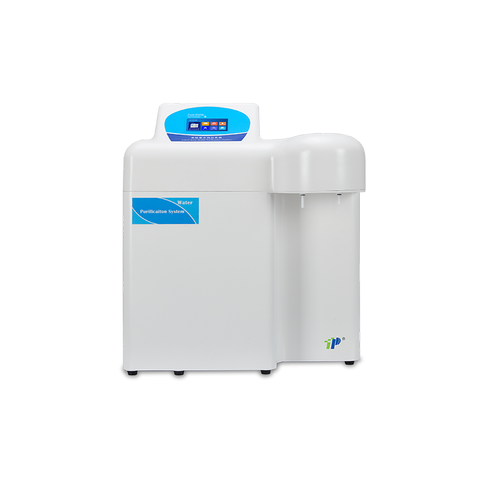

High-end pure & ultrapure water system for small to medium laboratories
Directly produces pure and ultrapure water from tap water, daily capacity <100L
Integrated consumables with quick cartridge replacement
Real-time online monitoring of feed, pure, and ultrapure water quality with alarms
Supports manual and volume-controlled water dispensing (10ml–999999ml)
Ultrapure water circulation and automatic sanitization system ensure stable water quality
Data logging and USB export for maintenance and quality traceability

Tpyes: Basic / Eliminating Endotoxin / Low TOC / Synthesizing
Output capacity: Up to 2.0L/Min
Feed water requirements: Distilled water,DI water or RO water,temperature5-45°(water pressure:1atm)
Resistivity (25℃): 18.25MΩ.cm


Output-RO water: 15L/30L/Hour (Depend on models)
Output-Deionized water: Up to 2.0L/Min(When tank is full)
Feed water requirements: Tap water: conductivity<400μs,5-45℃, 1.0-4.0Kgf/cm²(When TDS>400μs, optional pretreatment is suggested)
Resistivity (25℃): 16-18.25MΩ.cm
