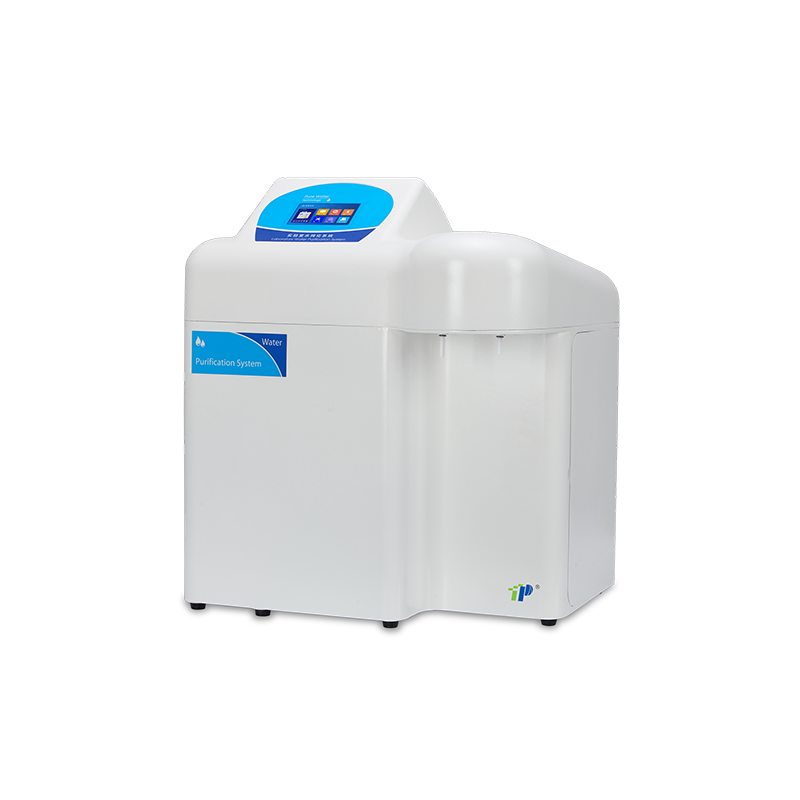

Laboratory Ultrapure Water Purification System | Multi-Mode TOC/Endotoxin-Free RO/DI Water Generator (20L/H)
Type: Basic / Eliminating Endotoxin / Low TOC / Synthesizing (Depend on models)
Output - RO water: 20L/Hour
Output-Deionized water: 2.0L/Min (When tank is full)
Feed water requirements: Tap water conductivity <400µs, 5-45°C, 1.0-4.0Kg/cm³ (When TDS>400µs, optional pretreatment is suggested)
Resistivity (25℃): 18.28 MΩ·cm
Output - RO water: 20L/Hour
Output-Deionized water: 2.0L/Min (When tank is full)
Feed water requirements: Tap water conductivity <400µs, 5-45°C, 1.0-4.0Kg/cm³ (When TDS>400µs, optional pretreatment is suggested)
Resistivity (25℃): 18.28 MΩ·cm
| Quantity: | |
|---|---|
-
Pure-R
-
TOP
| Category | Pure-R (Basic) | Pure-RUF (Eliminating Endotoxin) | Pure-RUV (Low TOC) | Pure-RFV (Synthesizing) |
| Output-RO Water | 20L/Hour | |||
| Output - Deionized Water | 2.0L/Min (When tank is full) | |||
| Feed Water Requirements | Tap water conductivity <400µs, 5-45°C, 1.0-4.0Kg/cm³ (When TDS>400µs, optional pretreatment is suggested) | |||
| Ultrapure Water Quality | ||||
| Resistivity (25°C) | 18.28 MΩ·cm | |||
| Heavy Metal Ion | <0.01 ppb | |||
| TOC | <10 ppb | <10 ppb | <3 ppb | <3 ppb |
| Bacteria | <0.01 cfu/ml | |||
| Particle (>0.22µm) | <1/ml | |||
| Pyrogen (Endotoxin) | N/A | <0.001 EU/ml | N/A | <0.001 EU/ml |
| RNases | N/A | <1 pg/ml | N/A | <1 pg/ml |
| DNases | N/A | <5 pg/ml | N/A | <5 pg/ml |
| RO Water Quality | ||||
| Conductivity | 1#RO water,conductivity=source water conducivity ×5%;2*staged RO water:1-5μs/cm(conductivity of source water×2%) | |||
| Organic Rejection Rate | >99% (MW >200 Dalton) | |||
| Particles/Bacteria Rejection Rate | >99% | |||
| Dimensions (W×D×H) | 540×390×640 mm | |||
| Weight | ~30 kg | |||
| Voltage/Frequency | 100-240V, 50/60Hz | |||
| Power | 72W/120W | |||
| Standard Configuration | Main system (including 1 full set of cartridges) + 2 built-in tanks (PE and Pressure tank) + accessories bag | |||
| Category | Pure-R (Basic) | Pure-RUF (Eliminating Endotoxin) | Pure-RUV (Low TOC) | Pure-RFV (Synthesizing) |
| Output-RO Water | 20L/Hour | |||
| Output - Deionized Water | 2.0L/Min (When tank is full) | |||
| Feed Water Requirements | Tap water conductivity <400µs, 5-45°C, 1.0-4.0Kg/cm³ (When TDS>400µs, optional pretreatment is suggested) | |||
| Ultrapure Water Quality | ||||
| Resistivity (25°C) | 18.28 MΩ·cm | |||
| Heavy Metal Ion | <0.01 ppb | |||
| TOC | <10 ppb | <10 ppb | <3 ppb | <3 ppb |
| Bacteria | <0.01 cfu/ml | |||
| Particle (>0.22µm) | <1/ml | |||
| Pyrogen (Endotoxin) | N/A | <0.001 EU/ml | N/A | <0.001 EU/ml |
| RNases | N/A | <1 pg/ml | N/A | <1 pg/ml |
| DNases | N/A | <5 pg/ml | N/A | <5 pg/ml |
| RO Water Quality | ||||
| Conductivity | 1#RO water,conductivity=source water conducivity ×5%;2*staged RO water:1-5μs/cm(conductivity of source water×2%) | |||
| Organic Rejection Rate | >99% (MW >200 Dalton) | |||
| Particles/Bacteria Rejection Rate | >99% | |||
| Dimensions (W×D×H) | 540×390×640 mm | |||
| Weight | ~30 kg | |||
| Voltage/Frequency | 100-240V, 50/60Hz | |||
| Power | 72W/120W | |||
| Standard Configuration | Main system (including 1 full set of cartridges) + 2 built-in tanks (PE and Pressure tank) + accessories bag | |||
