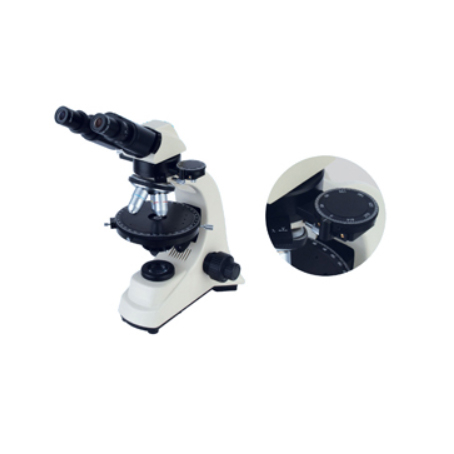

TM-500P
TOP
Polarising microscope is one of the most commonly used professional experimental instruments in geology, minerals, metallurgy and other departments and related colleges and universities. In recent years, with the continuous progress of optical technology, polarising microscope, as an optical instrument, has become more and more widely used.
Polarized microscope is a very suitable product for users to do single polarized light observation, orthogonal polarized light observation, cone light observation and micrography, equipped with gypsum λ, mica 1/4 specimen, quartz wedge and moving ruler and other attachments, is a group of new products with more complete functions and good quality.
Polarising microscope is one of the most commonly used professional experimental instruments in geology, minerals, metallurgy and other departments and related colleges and universities. In recent years, with the continuous progress of optical technology, polarising microscope, as an optical instrument, has become more and more widely used.
Polarized microscope is a very suitable product for users to do single polarized light observation, orthogonal polarized light observation, cone light observation and micrography, equipped with gypsum λ, mica 1/4 specimen, quartz wedge and moving ruler and other attachments, is a group of new products with more complete functions and good quality.
Parts | Specification | TM-500P |
Viewing Head | Hinged Binocular Head Hinged Tee Head | ● |
Goggles | Flat Field Eyepiece PL10X-18mm Flat Field Eyepiece PL10X-20mm Flat Field Eyepiece PL10X-18mm with Cross Section Flat Field Eyepiece PL10X-20mm with Cross Scoring | ● |
Converter | Four-hole converter for internal positioning | ● |
Objective Lens | Infinity Stressless Flat Field Objective ∞ 4X/0.1, 10X/0.25, 40X/0.65 (with spring), 60X/0.8 (with spring) Infinity Stressless Flat Field Objective ∞ 20X/0.4 | ● |
Polarisation Detectors | 360º rotatable deflector set (modular, lockable) | ● |
Borescope | Built-in centre-adjustable Borescope | ● |
Optical Range Compensator | λ test plate (Class I red), 1/4 λ test plate, quartz wedge test plate (Class I-IV) | ● |
Round Rotary Carrier | Diameter ф156mm, scale grid value 1°, vernier grid value 6′, centre adjustable | ● |
Spotting scopes | N.A. 1.25 Abbe-type spotting scope (unstressed) with variable light bar and filter holder | ● |
Deflection device | Rotatable, graduated | ● |
Lighting System | Halogen lamp 6V/20W, AC85-230V. light adjustable | ● |
Attachment | 2.5mm Allen key Orchid Colour Filter | ● |
Optional Accessories | Polarised moving scale | ○ |
Annotate: ●: essential component ○: option
