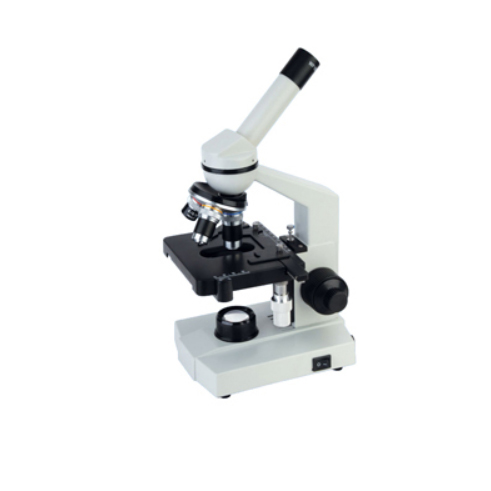

TP/BP Series
TOP
Parts | Specification | TP-20 | TP-20A |
| Monocular head | ● | ● |
Eyepiece | wide-angle eyepiece:WF10X-18mm | ● | ● |
Achromatic objective (physics) | DIN achromatic objective 4X/NA0.10 | ● | ● |
Converter | External Positioning 3-Hole Converter External Positioning 4-Hole Converter | ● | ● |
Platform | Simple platform with press tabs. Platform dimensions:110mmX119mm | ● | ○ |
Light Bar | Five-hole disk light bar Variable light bar | ● | ○ |
Spotting scope | Single Lens Spotting Lens with NA0.65 | ● | ○ |
Illumination | Flat concave reflector Incandescent lighting 20W LED lighting (rechargeable dimmable) Halogen Lighting 12V/10W | ○ | ○ |
Options | Moving Ruler Camera | ○ | ○ |
Wrap | Each microscope is packed into one foam box, then one small cardboard box, 4 small cardboard boxes then one large cardboard box. Dimensions of outer box: 54.5X39.5X40.5 cm Carrying wooden box Aluminum alloy box | ● | ● |
Annotate: ●: essential component ○: option
Parts | Specification | TP-20 | TP-20A |
| Monocular head | ● | ● |
Eyepiece | wide-angle eyepiece:WF10X-18mm | ● | ● |
Achromatic objective (physics) | DIN achromatic objective 4X/NA0.10 | ● | ● |
Converter | External Positioning 3-Hole Converter External Positioning 4-Hole Converter | ● | ● |
Platform | Simple platform with press tabs. Platform dimensions:110mmX119mm | ● | ○ |
Light Bar | Five-hole disk light bar Variable light bar | ● | ○ |
Spotting scope | Single Lens Spotting Lens with NA0.65 | ● | ○ |
Illumination | Flat concave reflector Incandescent lighting 20W LED lighting (rechargeable dimmable) Halogen Lighting 12V/10W | ○ | ○ |
Options | Moving Ruler Camera | ○ | ○ |
Wrap | Each microscope is packed into one foam box, then one small cardboard box, 4 small cardboard boxes then one large cardboard box. Dimensions of outer box: 54.5X39.5X40.5 cm Carrying wooden box Aluminum alloy box | ● | ● |
Annotate: ●: essential component ○: option
| Specification | TP-30 | TP-30D | TP-30B |
| Monocular head Instructor head Binocular head | ● | ○ | ○ |
Eyepiece | Wide-angle eyepieces:WF10X-18mm | ● | ● | ● |
Achromatic objective (physics) | DIN achromatic objective 4X/NA0.10 | ● | ● | ● |
Converter | External Positioning 3-Hole Converter External Positioning 4-Hole Converter | ● | ● | ○ |
Platform | Simple platform with pressure plate. Platform size: 110mmX119mm Double-layer mechanical platform. Platform size: 115mmX125mm | ● | ● | ○ |
Light Bar | Five-hole disk light bar Variable light bar | ● | ● | ○ |
Spotting Lens | Single Lens Spotting Scope NA0.65 Abbe concentrator NA1.25 | ● | ● | ○ |
Illumination | Flat concave reflector Incandescent lighting 20W LED lighting (rechargeable dimmable) Halogen lighting 12V/10W | ○ | ○ | ○ |
Options | Moving Ruler Camera | ○ | ○ | ○ |
Packing | Each microscope is packed into a foam box, then into a small carton, 4 small cartons and then into a large carton. Dimension of outer box: 62X39X47.5 cm Carrying wooden case Aluminum alloy case | ● | ● | ● |
Annotate: ●: essential component ○: option
| Specification | TP-30 | TP-30D | TP-30B |
| Monocular head Instructor head Binocular head | ● | ○ | ○ |
Eyepiece | Wide-angle eyepieces:WF10X-18mm | ● | ● | ● |
Achromatic objective (physics) | DIN achromatic objective 4X/NA0.10 | ● | ● | ● |
Converter | External Positioning 3-Hole Converter External Positioning 4-Hole Converter | ● | ● | ○ |
Platform | Simple platform with pressure plate. Platform size: 110mmX119mm Double-layer mechanical platform. Platform size: 115mmX125mm | ● | ● | ○ |
Light Bar | Five-hole disk light bar Variable light bar | ● | ● | ○ |
Spotting Lens | Single Lens Spotting Scope NA0.65 Abbe concentrator NA1.25 | ● | ● | ○ |
Illumination | Flat concave reflector Incandescent lighting 20W LED lighting (rechargeable dimmable) Halogen lighting 12V/10W | ○ | ○ | ○ |
Options | Moving Ruler Camera | ○ | ○ | ○ |
Packing | Each microscope is packed into a foam box, then into a small carton, 4 small cartons and then into a large carton. Dimension of outer box: 62X39X47.5 cm Carrying wooden case Aluminum alloy case | ● | ● | ● |
Annotate: ●: essential component ○: option
Parts | Specification | BP-51 | BP-52 | BP-52P |
Viewing Head | Monocular head Hinged binocular head, pupil distance 55-75mm. | ● | ○ | ● |
Eyepiece | Wide-angle eyepieces:WF10X-18mm | ● | ● | ● |
Achromatic objective (physics) | DIN achromatic objective 4X/NA0.10 | ● | ● | ● |
Converter | External Positioning 3-Hole Converter External four-hole converter | ● | ○ | ● |
Deflection detector | Built-in bias detector set | ○ | ○ | ● |
Platform | Simple platform with press tabs. Platform size: 127mmX132mm. Double mechanical platform. Platform size: 125mmX130mm. φ135 round loading table 360°rotation, scale grid value 1°, vernier grid value 6′, center adjustable | ● | ○ | ○ |
Spotting scope | Single Lens Spotting Scope with Variable Light Bar N1.25 Abbe Spotting Scope with Variable Light Bar N1.25 Abbey spotting scope with deflection device rotatable, with scale | ● | ○ | ○ |
Focusing systems | Separate focusing system (mechanism) with limiting device Coaxial focusing system (mechanism) with limiters | ● | ○ | ○ |
Illumination | Fluorescent Lighting 5W LED lighting (rechargeable dimmable) Halogen Lamp 6V/20W. AC85-230V. | ● | ● | ○ |
Options | Moving Ruler Camera | ○ | ○ | ○ |
Wrap | Each microscope is packed into a foam box, then a small cardboard box, 2 small cardboard boxes and then a large cardboard box. Dimensions of outer box: 42X35X43 cm Carrying wooden case Aluminium alloy case | ● | ● | ● |
Annotate: ●: essential component ○: option
Parts | Specification | BP-51 | BP-52 | BP-52P |
Viewing Head | Monocular head Hinged binocular head, pupil distance 55-75mm. | ● | ○ | ● |
Eyepiece | Wide-angle eyepieces:WF10X-18mm | ● | ● | ● |
Achromatic objective (physics) | DIN achromatic objective 4X/NA0.10 | ● | ● | ● |
Converter | External Positioning 3-Hole Converter External four-hole converter | ● | ○ | ● |
Deflection detector | Built-in bias detector set | ○ | ○ | ● |
Platform | Simple platform with press tabs. Platform size: 127mmX132mm. Double mechanical platform. Platform size: 125mmX130mm. φ135 round loading table 360°rotation, scale grid value 1°, vernier grid value 6′, center adjustable | ● | ○ | ○ |
Spotting scope | Single Lens Spotting Scope with Variable Light Bar N1.25 Abbe Spotting Scope with Variable Light Bar N1.25 Abbey spotting scope with deflection device rotatable, with scale | ● | ○ | ○ |
Focusing systems | Separate focusing system (mechanism) with limiting device Coaxial focusing system (mechanism) with limiters | ● | ○ | ○ |
Illumination | Fluorescent Lighting 5W LED lighting (rechargeable dimmable) Halogen Lamp 6V/20W. AC85-230V. | ● | ● | ○ |
Options | Moving Ruler Camera | ○ | ○ | ○ |
Wrap | Each microscope is packed into a foam box, then a small cardboard box, 2 small cardboard boxes and then a large cardboard box. Dimensions of outer box: 42X35X43 cm Carrying wooden case Aluminium alloy case | ● | ● | ● |
Annotate: ●: essential component ○: option
