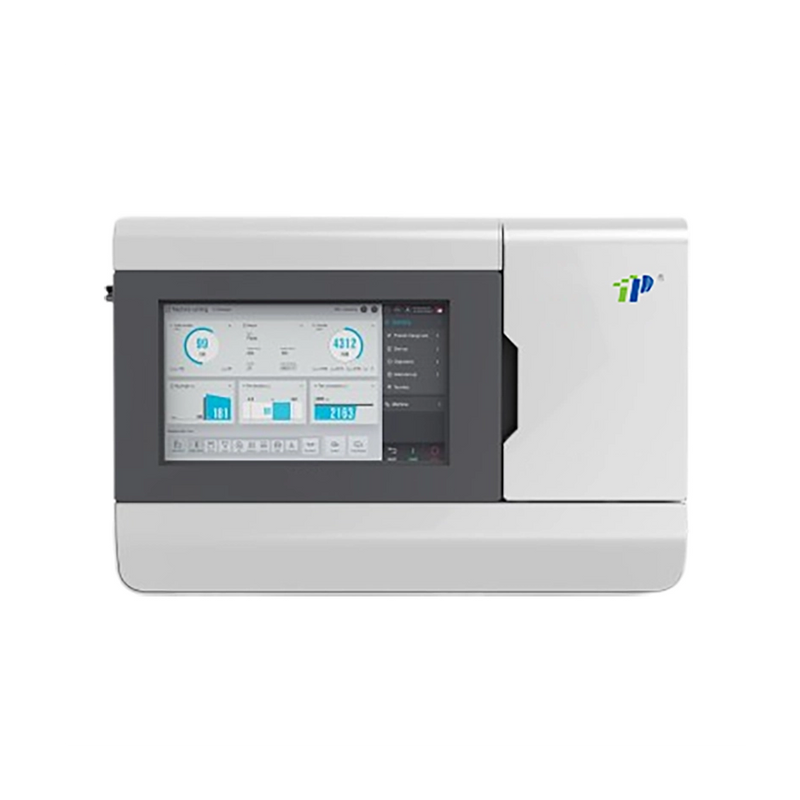

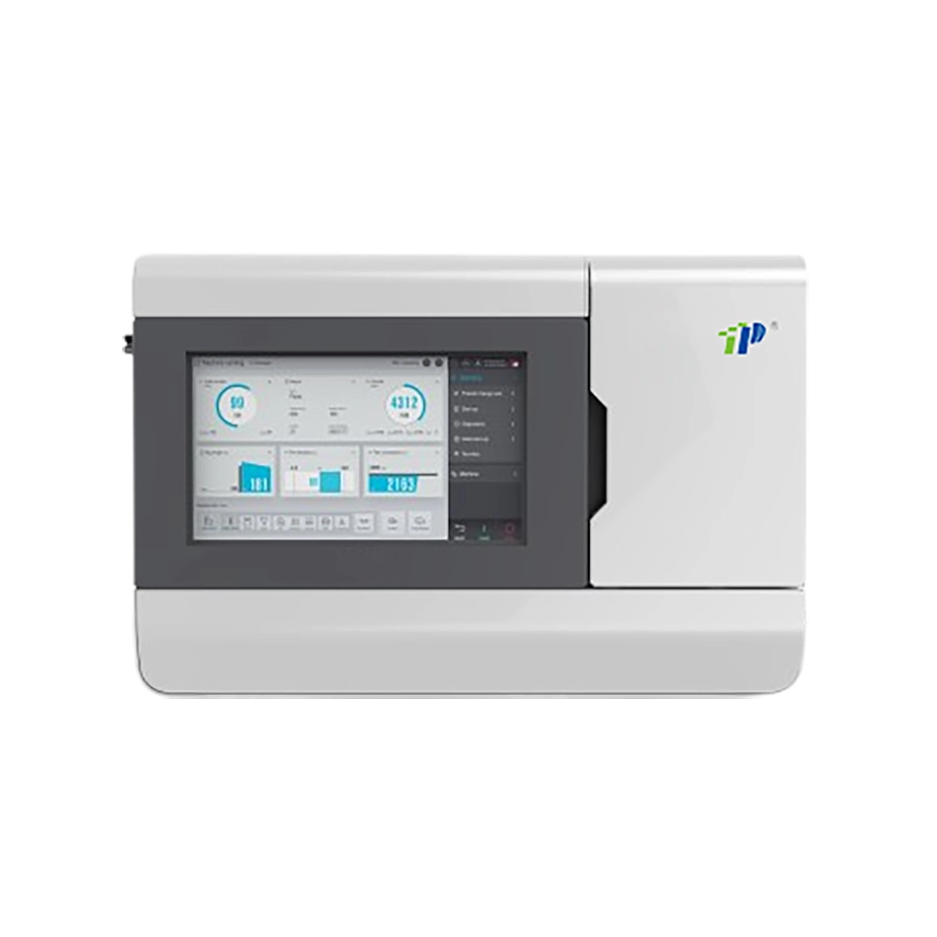

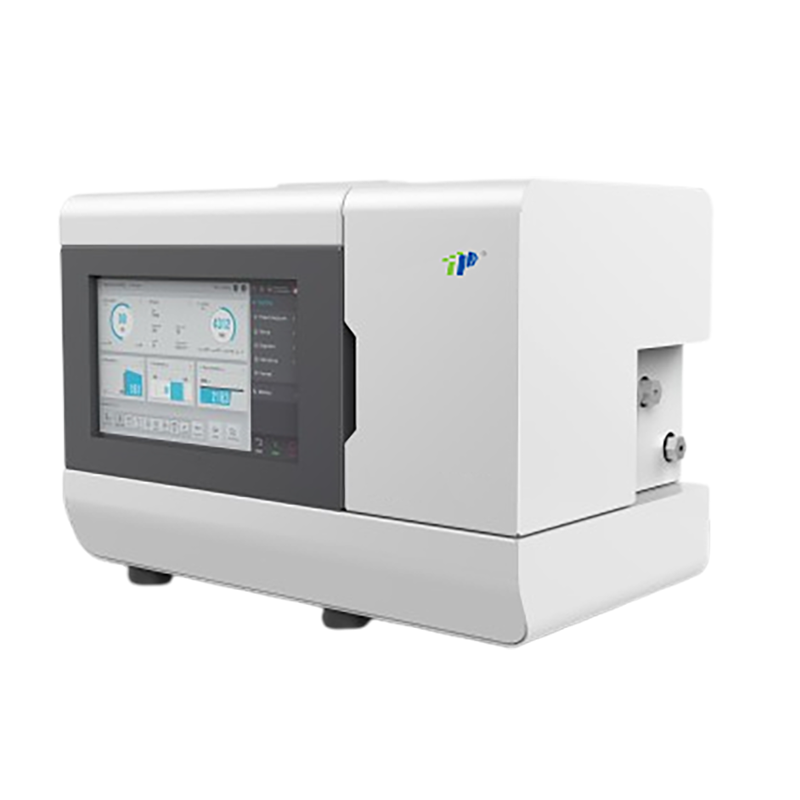

P-TOC-50B
TOP
TOC online detector can continuously detect the total organic carbon content within the purity range of purified water or ultrapure water. By using TOC real-time online detection results, users can immediately take preventive measures when exceeding the standard to eliminate potential pollution and ensure compliance with regulatory requirements. The TOC online detector adopts a simple and low maintenance sensor design, which can achieve reliable and stable TOC real-time online detection.
Feature
It adopts a portable design, which is lightweight and easy to move to the sampling point;
Adopting touch screen design;
Design and conduct testing for the total organic carbon content of pharmaceutical water;
Equipped with a large amount of storage space, capable of storing a large amount of test data;
Can output test parameters and test results;
No gas or reagents are required during use, storage, and replacement, and there are no moving parts, reducing maintenance and repair costs;
When the concentration of the test sample exceeds the specified limit, the instrument can automatically alarm and output control signals;
TOC online detector can continuously detect the total organic carbon content within the purity range of purified water or ultrapure water. By using TOC real-time online detection results, users can immediately take preventive measures when exceeding the standard to eliminate potential pollution and ensure compliance with regulatory requirements. The TOC online detector adopts a simple and low maintenance sensor design, which can achieve reliable and stable TOC real-time online detection.
Feature
It adopts a portable design, which is lightweight and easy to move to the sampling point;
Adopting touch screen design;
Design and conduct testing for the total organic carbon content of pharmaceutical water;
Equipped with a large amount of storage space, capable of storing a large amount of test data;
Can output test parameters and test results;
No gas or reagents are required during use, storage, and replacement, and there are no moving parts, reducing maintenance and repair costs;
When the concentration of the test sample exceeds the specified limit, the instrument can automatically alarm and output control signals;
| P-TOC-50B |
Measuring range | 0.05ppb( μg/L)~2000ppb( μg/L) |
Detection limit | 0.1ppb ( μg/L) |
Resolution | 0.1ppb ( μg/L) |
Accuracy | ±5% |
Velocity of flow | 2-5mL/min |
Pressure range | 300s |
Initial response time | Continuous operation, single detection for 10mins |
Analysis time | Portable |
Equipment form | 1~50℃ |
Sample temperature | ±0.25℃ |
Temperature accuracy | 0.02-20 μs/cm ±2%;20-200 μs/cm ±3% |
Conductivity accuracy | ≤3% |
Repetitive error | AC220V, 50Hz |
Power requirements/functions | Color touch screen, Chinese display |
Display | Stainless steel spray coating |
Shell material | 400*300*400(mm) |
Shell size | Offline testing and laboratory testing of pharmaceutical water (purified water, injection water), as well as cleaning validation; Environmental testing, electronics industry, food industry, etc. |
| P-TOC-50B |
Measuring range | 0.05ppb( μg/L)~2000ppb( μg/L) |
Detection limit | 0.1ppb ( μg/L) |
Resolution | 0.1ppb ( μg/L) |
Accuracy | ±5% |
Velocity of flow | 2-5mL/min |
Pressure range | 300s |
Initial response time | Continuous operation, single detection for 10mins |
Analysis time | Portable |
Equipment form | 1~50℃ |
Sample temperature | ±0.25℃ |
Temperature accuracy | 0.02-20 μs/cm ±2%;20-200 μs/cm ±3% |
Conductivity accuracy | ≤3% |
Repetitive error | AC220V, 50Hz |
Power requirements/functions | Color touch screen, Chinese display |
Display | Stainless steel spray coating |
Shell material | 400*300*400(mm) |
Shell size | Offline testing and laboratory testing of pharmaceutical water (purified water, injection water), as well as cleaning validation; Environmental testing, electronics industry, food industry, etc. |
