PY-G1300
TOP

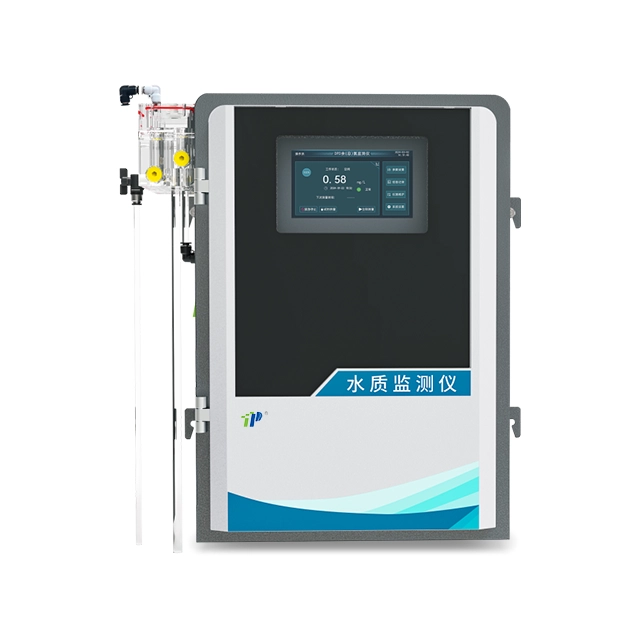

Online DPD residual (total) chlorine monitor adopts DPD spectrophotometric measurement system, equipped with independently designed flow-through tank and filtration system, with high detection sensitivity, stable and reliable performance, wall-mounted installation and simple maintenance.
Configured with data processing software, it has the functions of online detection, historical data trend analysis graph, storage and real-time query on remote platform.
Online DPD residual (total) chlorine monitor adopts DPD spectrophotometric measurement system, equipped with independently designed flow-through tank and filtration system, with high detection sensitivity, stable and reliable performance, wall-mounted installation and simple maintenance.
Configured with data processing software, it has the functions of online detection, historical data trend analysis graph, storage and real-time query on remote platform.
Product features:
- The equipment adopts the wall-mounted installation mode, combined with the supporting circulation tank, filtration system, compact structure, simple installation, occupies less space.
- The instrument has automatic diagnostic function, simplified replacement of pipe fittings, clear blending process, simple maintenance.
- Measuring cell observation window, interface status light, water shortage automatic stop, reagent shortage automatic alarm function, you can always know the operating status of the equipment to avoid reagent waste.
- Support optional external control box to control water pump and dosing pump to achieve automatic pumping and dosing.
- Support optional DTU networking function, you can view the data and equipment operation status remotely via mobile phone.
- Support optional automatic cleaning function, reduce the amount of daily maintenance.
Application Fields:
-Sewage treatment plant
-Secondary water supply
-Medical sewage
-Swimming pools
Product features:
- The equipment adopts the wall-mounted installation mode, combined with the supporting circulation tank, filtration system, compact structure, simple installation, occupies less space.
- The instrument has automatic diagnostic function, simplified replacement of pipe fittings, clear blending process, simple maintenance.
- Measuring cell observation window, interface status light, water shortage automatic stop, reagent shortage automatic alarm function, you can always know the operating status of the equipment to avoid reagent waste.
- Support optional external control box to control water pump and dosing pump to achieve automatic pumping and dosing.
- Support optional DTU networking function, you can view the data and equipment operation status remotely via mobile phone.
- Support optional automatic cleaning function, reduce the amount of daily maintenance.
Application Fields:
-Sewage treatment plant
-Secondary water supply
-Medical sewage
-Swimming pools
Technical Parameters:
Measurement Parameters | Residual (total) chlorine | Total chlorine |
Measuring method | N,N-Diethyl-1,4-phenylenediamine photometric method (DPD method) | |
Measuring range | 0~10mg/L | 0~25mg/L |
Accuracy | ±5 per cent or ±0.05 mg/L (whichever is greater) over the range 0-5 mg/L; | ±5% or ±0.25 mg/L, whichever is greater; |
±10% in the range of 5-10 mg/L. | ||
Detection limit | 0.02mg/L | 0.03mg/L |
Lower detection limit | 0.05mg/L | 0.1mg/L |
Repeatability | ≤3% | |
Resolution | 0.01mg/L | |
Measuring interval | ＜2.5min | |
Communication method | RS485 | |
Amount of reagent used | 0.5L indicator and 0.5L buffer solution, 30 days | |
Measurement method | Manual test, continuous measurement, periodic measurement | |
Filter | With 80 mesh screen filter set | |
Operating temperature | 5~40℃ | |
Operating humidity | <90%RH (non-condensing) | |
Storage temperature | -15~60℃ | |
Electrical installation category | Ⅰ (indoor installation) | |
Mounting type | Wall-mounted | |
Power Supply | AC220V±10%，50Hz±10%，<20W | |
Dimension | 580*400*240mm | |
Weight | ＜20KG(net weight) | |
*Self-cleaning function is included by default for measuring range 0~25mg/L;
