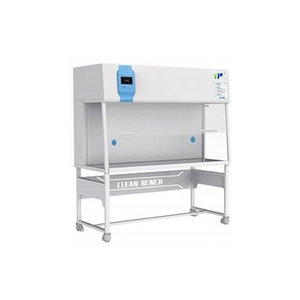

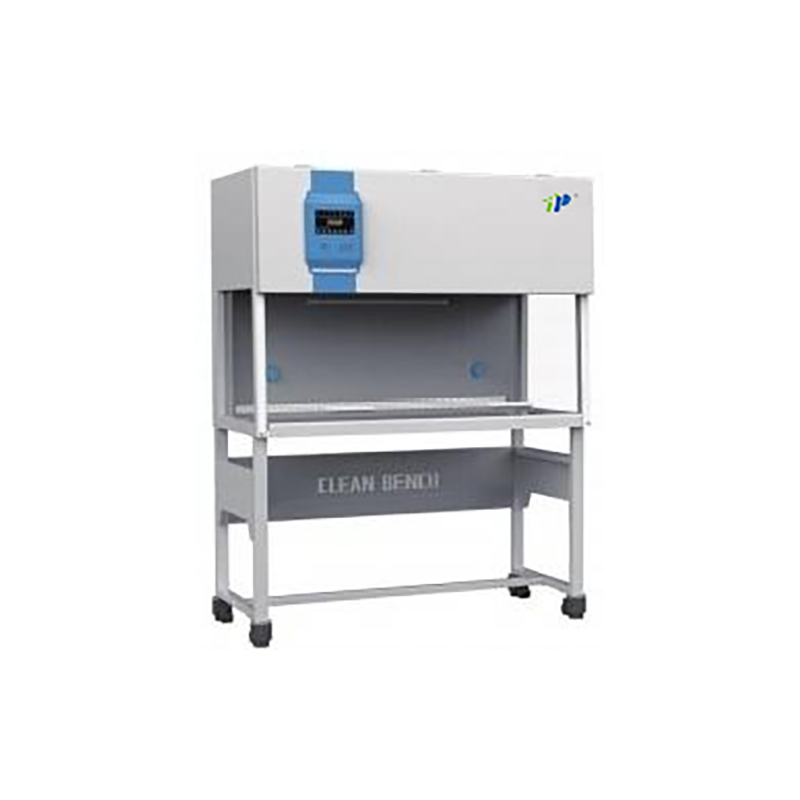

Vertical Laminar Flow Clean Bench with HEPA Filter – ISO Class 5 Air Cleanliness for Laboratory Use
Flow Type: Vertical laminar flow
Cleanliness Level: ISO Class 5 (Class 100, US Federal 209E)
HEPA Filter: ≥99.99% efficiency for ≥0.3 μm particles, damp-proof & flame-resistant glass fiber
Average Air Velocity: 0.2–0.4 m/s | Illumination: ≥300 Lx
Vibration Amplitude: ≤2 μm | Rated Power: 1200 W
Work Area (W×D×H): 1300×516×520 mm (TCB-1300V) / 900×516×520 mm (TCB-900V)
Overall Dimensions (W×D×H): 1370×655×1756 mm (TCB-1300V) / 970×655×1756 mm (TCB-900V)
Cleanliness Level: ISO Class 5 (Class 100, US Federal 209E)
HEPA Filter: ≥99.99% efficiency for ≥0.3 μm particles, damp-proof & flame-resistant glass fiber
Average Air Velocity: 0.2–0.4 m/s | Illumination: ≥300 Lx
Vibration Amplitude: ≤2 μm | Rated Power: 1200 W
Work Area (W×D×H): 1300×516×520 mm (TCB-1300V) / 900×516×520 mm (TCB-900V)
Overall Dimensions (W×D×H): 1370×655×1756 mm (TCB-1300V) / 970×655×1756 mm (TCB-900V)
| Quantity: | |
|---|---|
-
TCB SERIES
-
TOP
Features:
Efficient filter used to ensure air cleanliness
● Damp-proof and flame-resistant glass fiber high-efficiency filter (HEPA), interception efficiency of solid paricles over 0.3μm higher than 99.99%
● Cleanliness up to CLASS 5 standard of ISO 14644.1, higher than class 100
Split chassis,easy moving
● Base box may be separated to enable easy handling and installation
Radiation-proof tempered glass,safer
● Transparent radiation-proof tempered glass used to increase day lighting and keep away from UV radiation
Intelligent interlocking of sterilization, auto control
● Interlocked lighting lamp and UV lamp; UV lamp is turned on only when the lighting lamp is off,and turned off when lighting lamp is onto ensure safety
● Timed dosing of UV lamp, adjustable sterilization time in certain angel
Fan speed adjusted to meet user demand
● Adjustable fan speed,optimal speed to be chosen by user
● Delayed start of UV lamp for safety
Ergonomic design,comfortable work
● Front window inclined, elegant and conforming to ergonomic principle
● Workbench at proper height above the floor, you can work easily while standing or sitting down
One-touch sterilizing,more rest
● UV sterilization function enabled by one-touch,and completed automatically
Features:
Efficient filter used to ensure air cleanliness
● Damp-proof and flame-resistant glass fiber high-efficiency filter (HEPA), interception efficiency of solid paricles over 0.3μm higher than 99.99%
● Cleanliness up to CLASS 5 standard of ISO 14644.1, higher than class 100
Split chassis,easy moving
● Base box may be separated to enable easy handling and installation
Radiation-proof tempered glass,safer
● Transparent radiation-proof tempered glass used to increase day lighting and keep away from UV radiation
Intelligent interlocking of sterilization, auto control
● Interlocked lighting lamp and UV lamp; UV lamp is turned on only when the lighting lamp is off,and turned off when lighting lamp is onto ensure safety
● Timed dosing of UV lamp, adjustable sterilization time in certain angel
Fan speed adjusted to meet user demand
● Adjustable fan speed,optimal speed to be chosen by user
● Delayed start of UV lamp for safety
Ergonomic design,comfortable work
● Front window inclined, elegant and conforming to ergonomic principle
● Workbench at proper height above the floor, you can work easily while standing or sitting down
One-touch sterilizing,more rest
● UV sterilization function enabled by one-touch,and completed automatically
