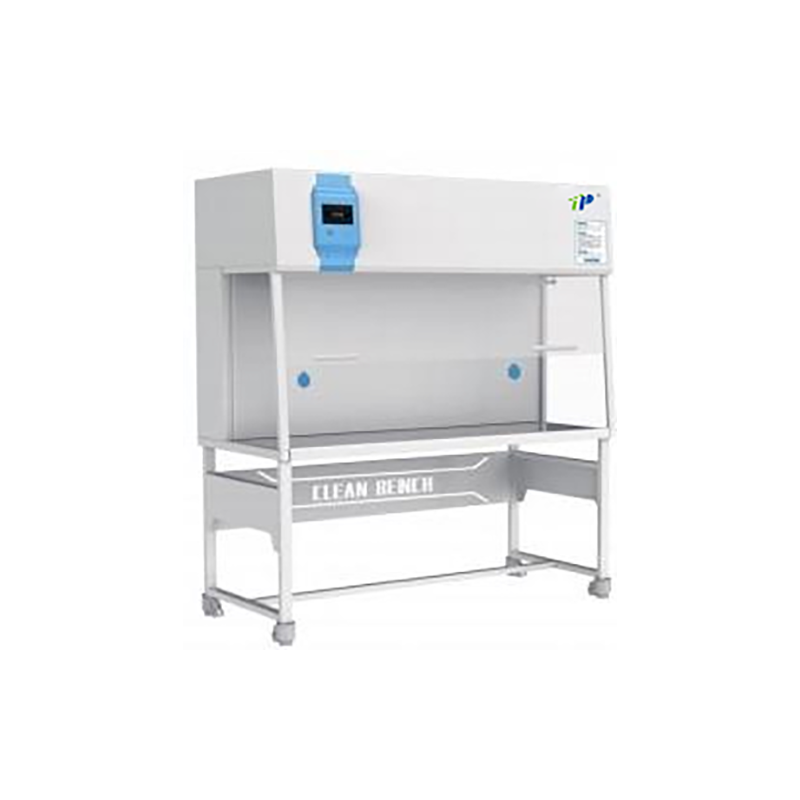

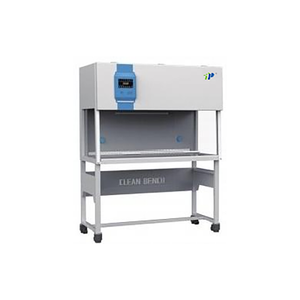

TCB Series Vertical & Horizontal Laminar Flow Clean Benches – ISO Class 5 HEPA Workstations for Laboratory & Medical Use
Models: TCB-700 / 900 / 1300 / 1600 / 1800 (Vertical & Horizontal airflow options)
Cleanliness Level: ISO 14644.1 Class 5 (≥99.99% @ 0.3 μm, H13 HEPA filter)
Airflow Velocity: 0.2–0.5 m/s, adjustable fan speed
Noise Level: ≤62 dB(A)
Internal Dimensions: 700–1800 mm width (varies by model)
Power Supply: AC220V, 50Hz, 1200W
Safety Features: UV lamp delayed start, lighting & UV interlock, tempered glass, leakage protection
Cleanliness Level: ISO 14644.1 Class 5 (≥99.99% @ 0.3 μm, H13 HEPA filter)
Airflow Velocity: 0.2–0.5 m/s, adjustable fan speed
Noise Level: ≤62 dB(A)
Internal Dimensions: 700–1800 mm width (varies by model)
Power Supply: AC220V, 50Hz, 1200W
Safety Features: UV lamp delayed start, lighting & UV interlock, tempered glass, leakage protection
| Quantity: | |
|---|---|
-
TCB SERIES
-
TOP
Product parameters | |||||||||||||
Model | Flow Type | Voitage/Frequence (VHz) | Power(W) | Vbration Amplitude (UM) | Exhaust Fller TypicalEMiciency | Average Velocity (MS) | FluoresGent Lamp ntenslty (Lux) | ||||||
TCB-700V | Vertical | AC220/50 | 1200 | 2 | H13 HEPA,99.99%@0.3um | 0.2-0.5 | 2300 | ||||||
TCB-900V | Vertical | AC220/50 | 1200 | 2 | H13 HEPA,99.99%@0.3um | 0.2-0.5 | 2300 | ||||||
TCB-1300V | Vertical | AC220/50 | 1200 | 2 | H13 HEPA,99.99%@0.3um | 0.2-0.5 | 2300 | ||||||
TCB-1600V | Vertical | AC220/50 | 1200 | 2 | H13 HEPA,99.99%@0.3um | 0.2-0.5 | ≥300 | ||||||
TCB-1800V | Vertical | AC220/50 | 1200 | 2 | H13 HEPA,99.99%@0.3um | 0.2-05 | 2300 | ||||||
Model | Net/gross weight (Kg) | Sound Level dB(A) | ntermal Dimenslons(mm) | Overall Dimensions(mm) | Packing Dimensions (mm) | Cleanliness Classication | Container Load (20740 1-40H) | ||||||
TCB-700V | 84/105 | 62 | 700*516*520 | 770*655*1756 | 905*745*1280 | ISO 14644.1 Class 5 | 10/25/25 | ||||||
TCB-900V | 108/135 | 62 | 900*516*520 | 970+655*1756 | 1105*745*1280 | ISO 14644.1 Class 5 | 10/25/25 | ||||||
TCB-1300V | 161/195 | 62 | 1300*516*520 | 1370*655*1756 | 1505*745*1280 | ISO 14644.1 Class5 | 10/25/25 | ||||||
TCB-1600V | 192/240 | 62 | 1600~516°520 | 1670*655*1756 | 1805*745*1280 | ISO 14644.1 Class 5 | 10/25/25 | ||||||
TCB-1800V | 216/270 | 62 | 1800*516*520 | 1870~655*1758 | 2005*745*1280 | ISO 14844.1 Class 5 | 10/25/25 | ||||||
Model | Flow Type | Voltage/Frequence (VHz) | Power(W) | Vbration Amplitude (UM) | Exhaust Flter Typical EHiciency | Average Velocily (MS) | Fluorescent Lamp Intensity (Lux) | ||||||
TCB-700H | Horzontal | AC220/50 | 1200 | 2 | H13 HEPA,99.99%@0.3um | 0.2-0.5 | 2300 | ||||||
TCB-900H | Horizontal | AC220/50 | 1200 | 2 | H13 HEPA,99.99%@0.3um | 0.2-0.5 | 2300 | ||||||
TCB-1300H | Horzontal | AC220/50 | 1200 | 2 | H13 HEPA,99.99%@0.3um | 0.2-0.5 | ≥300 | ||||||
TCB-1600H | Horizontal | AC220/50 | 1200 | 2 | H13 HEPA,99.99%@0.3um | 0.2-0.5 | ≥300 | ||||||
TCB-1800H | Horzontal | AC220/50 | 1200 | 2 | H13 HEPA,99.99%@0.3um | 0.2-0.5 | ≥300 | ||||||
Model | Net/gross weight (Kg) | Sound Level dB(A) | ntermal Dimenslons (mm) | Overall Dimensions (mm) | Packing Dimensions (mm) | Cleanliness Classification | Container Load (20740'-40H) | ||||||
TCB-700H | 84/105 | 62 | 600*537*753 | 700*792*1962 | 905*745*1480 | ISO 14644.1 Class 5 | 10/25/25 | ||||||
TCB-900H | 108/135 | 62 | 800*537*753 | 900*792*1962 | 1105*745*1480 | ISO 14844.1 Class 5 | 10/25/25 | ||||||
TCB-1300H | 161/195 | 62 | 1200*537*753 | 1300*792*1962 | 1505*745*1480 | ISO 14644.1 Class 5 | 10/25/25 | ||||||
TCB-1600H | 192/240 | 62 | 1500*537*753 | 1600*792*1962 | 1805*745*1480 | ISO 14644.1 Class 5 | 10/25/25 | ||||||
TCB-1800H | 216/270 | 62 | 1700*537*753 | 1800*792*1962 | 2005*745*1480 | ISO 14644.1 Class 5 | 10/25/25 | ||||||
