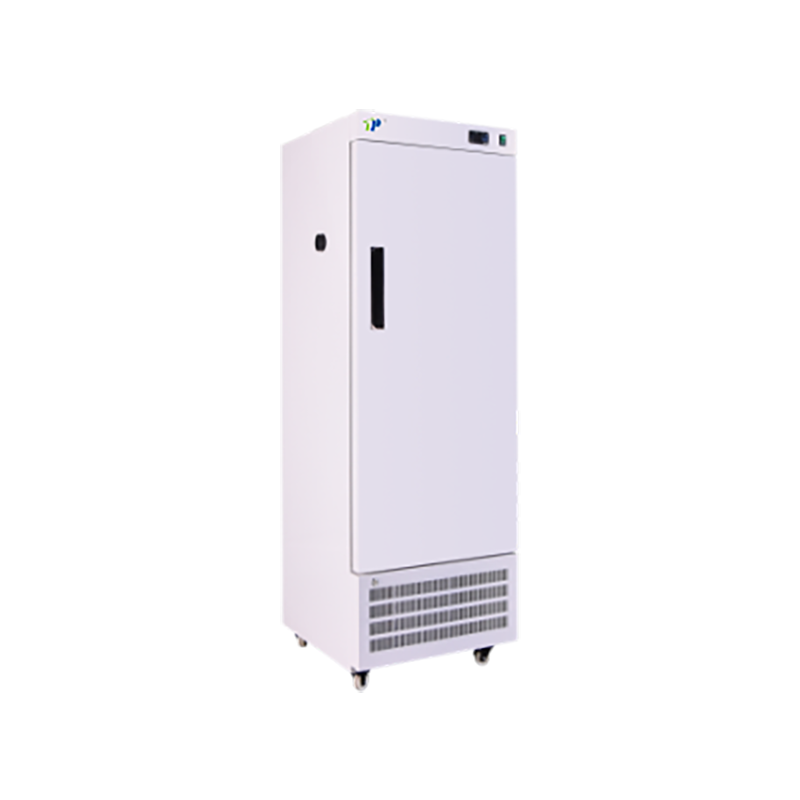

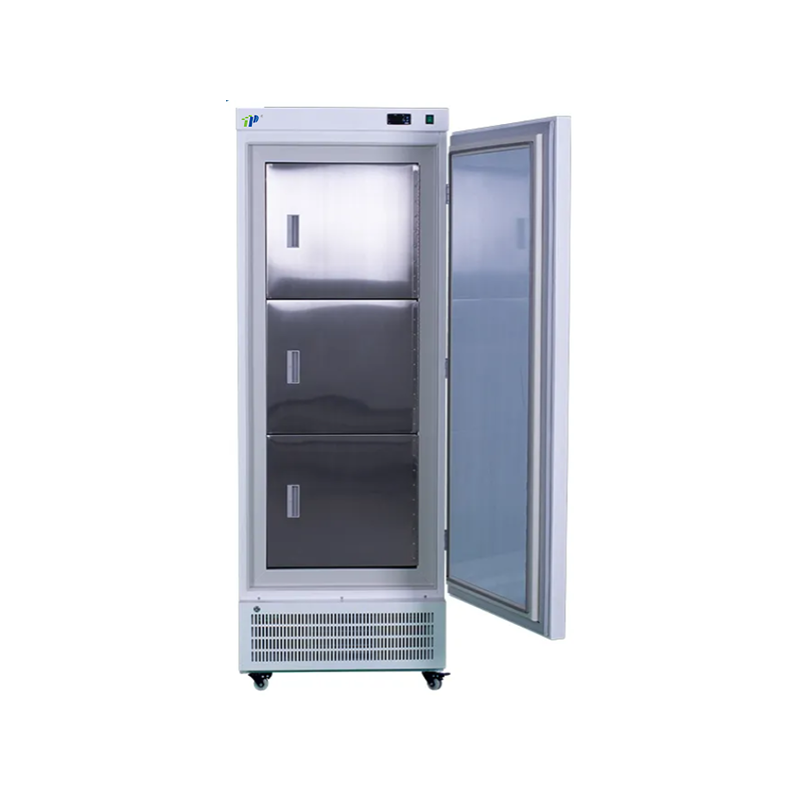

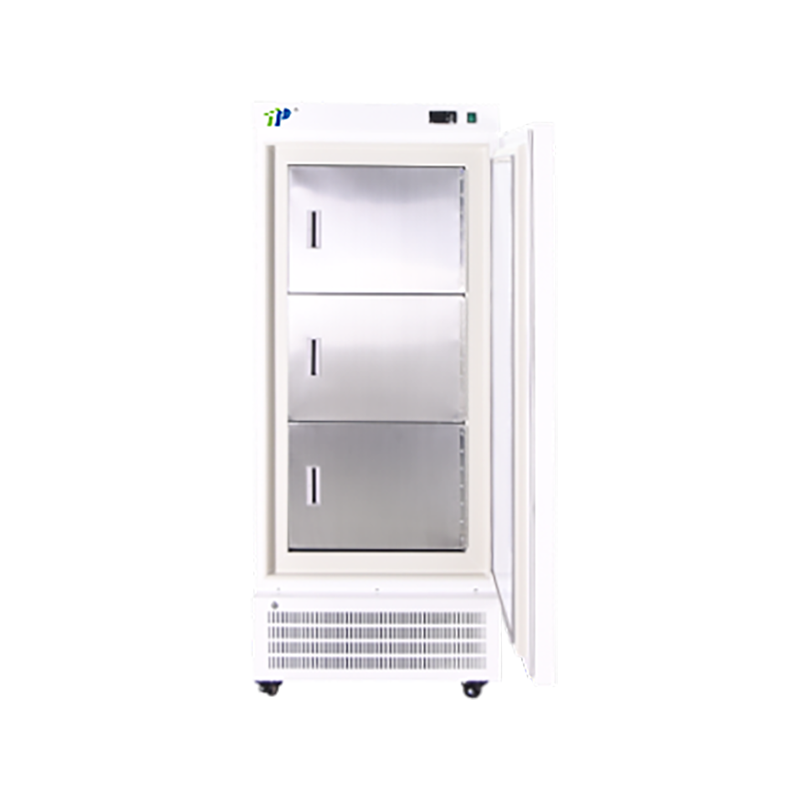

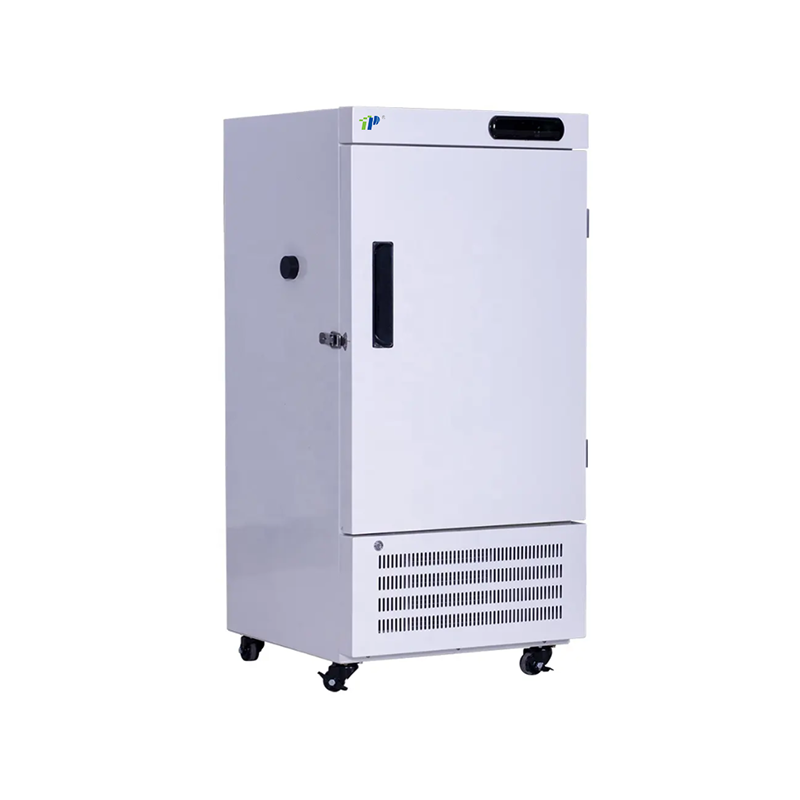

TW Series
TOP
Features:
User-friendly design
LED temperature display, clear and intuitive. USB interface, connected to a USB flash drive for data copying and analysis.
Safety system
Equipped with a comprehensive alarm system, with buzzer sound and flashing light alarm functions.
Features:
User-friendly design
LED temperature display, clear and intuitive. USB interface, connected to a USB flash drive for data copying and analysis.
Safety system
Equipped with a comprehensive alarm system, with buzzer sound and flashing light alarm functions.
Technical data
Model | TW-25L98 | TW-25L188 | TW-25L278 | TW-25L368 |
TW-40L98 | TW-40L188 | TW-40L278 | TW-40L368 | |
TW-60L98 | TW-60L188 | TW-60L278 | TW-60L368 | |
Volume (L) | 98 | 188 | 278 | 368 |
Temperature range (℃) | -5~ -25 / -15~ -40/-25～-60 | |||
Rated voltage/frequency (V/Hz) | 220V 50HZ | |||
Rated power (W) | 290/320/320 | 320/350/350 | 350/380/380 | 420/450/450 |
Power consumption (KWh/24h) | 2.8/3.8/3.8 | 3.3/4.3/4.3 | 3.8/4.7/4.7 | 4.6/5.5/5.5 |
Type of electric shock protection | I | |||
Climate types | N | |||
Net weight (kg) | 91 | 102 | 116 | 123 |
Noise (dBA) | 55 | 55 | 58 | 58 |
Seafood storage quantity (Kg) | 48 | 92 | 137 | 183 |
Thickness of insulation layer (mm) | 90 | |||
Leave on the net | 1 | 4 | 4 | 5 |
Inner door | None | 3 | 3 | 3 |
Product size (mm) | 620*645*1150 | 620*645*1570 | 690*705*1700 | 690*7051965 |
Inner box dimensions (mm) | 400*390*660 | 440*425*985 | 510*515*1100 | 510*515*1366 |
Packaging material 1 (regular) | Wooden pallet + carton | |||
Packaging size 1 (mm) (regular) | 665*720*980 | 690*715*1660 | 760*775*1790 | 760*775*2055 |
Packaging material | Plywood | |||
Packaging size (mm) | 665*710*970 | 690*715*1710 | 760*775*1840 | 760*775*2105 |
Product configuration
Style | Vertical | Insulation material | Cyclopentane polyurethane foam insulation layer | Drawer / shelf | Refrigerator drawer | Plastic-coated mesh | ||
Color | Milky white | Refrigerant | -25℃ is R404, -40 to 60℃ is a mixture of multiple components | Door sealing strip | Rubber belt airbag | |||
Cooling method | Direct cooling | Outer box material | Home appliance board | Cold-rolled steel sheets, Electrostatic spraying | Hinge | Refrigerator hinge | Stainless steel hinge | |
Compressor | KUBIQI | SECOP | Inner box material | Vacuum formed liner | 304 stainless steel | Alarm method | Bee buzzing sound and screen flashing alarm | |
Evaporator | High-quality copper tube box type evaporator | Pressure balancing valve | None | Threaded screw cap type | Alarm function | High and low temperature alarm, sensor failure alarm | ||
Condenser | Microchannel | Copper tube fin type | Lock | None | Yes | Attachment | Instructions, ice scraper, gloves, keys | |
Condensing fan | Evidence-Based Medicine | Roller type | No/footing | Self-locking rubber roller | Thermostat | Kaide microcomputer LED display temperature controller | ||
Optional configuration | Remote Monitoring / USB Data Interface / Temperature Recorder / Printer/Outer box Cold-rolled sheet spraying, inner liner304 Stainless SteelDoor | Outer door | Side development foam door | |||||
