TW Series
TOP
Efficient compressor, accurate temperature control
Used to provide a low-temperature freezing environment for medical institutions to store plasma and other samples.
Product advantages:
Temperature control
● Microcomputer control, digital display of internal temperature, adjustable internal temperature -10 ~ -25°C
Safety
● High temperature alarm, low temperature alarm, sensor fault alarm.
Insulation
● Thick insulation layer, supermicrocellular foaming technology, good insulation effect.
Refrigeration
● Quality compressor, quick refrigeration.
Ergonomic design
● Safety door lock design to prevent unauthorized opening.
● Wide voltage design applicable to a wide range of power environments.
● Thermometer hole designed on one side to enable easy use.
Efficient compressor, accurate temperature control
Used to provide a low-temperature freezing environment for medical institutions to store plasma and other samples.
Product advantages:
Temperature control
● Microcomputer control, digital display of internal temperature, adjustable internal temperature -10 ~ -25°C
Safety
● High temperature alarm, low temperature alarm, sensor fault alarm.
Insulation
● Thick insulation layer, supermicrocellular foaming technology, good insulation effect.
Refrigeration
● Quality compressor, quick refrigeration.
Ergonomic design
● Safety door lock design to prevent unauthorized opening.
● Wide voltage design applicable to a wide range of power environments.
● Thermometer hole designed on one side to enable easy use.
Technical data
Model | Effective volume(L) | Intemal temperature CC) | Rated voltage frequency (V/Hz) | Overall dimensions (mm) | Internal dimensions (mm) | Whole drawers | Half drawers | Power(W) | Net/gross weight (Kg) |

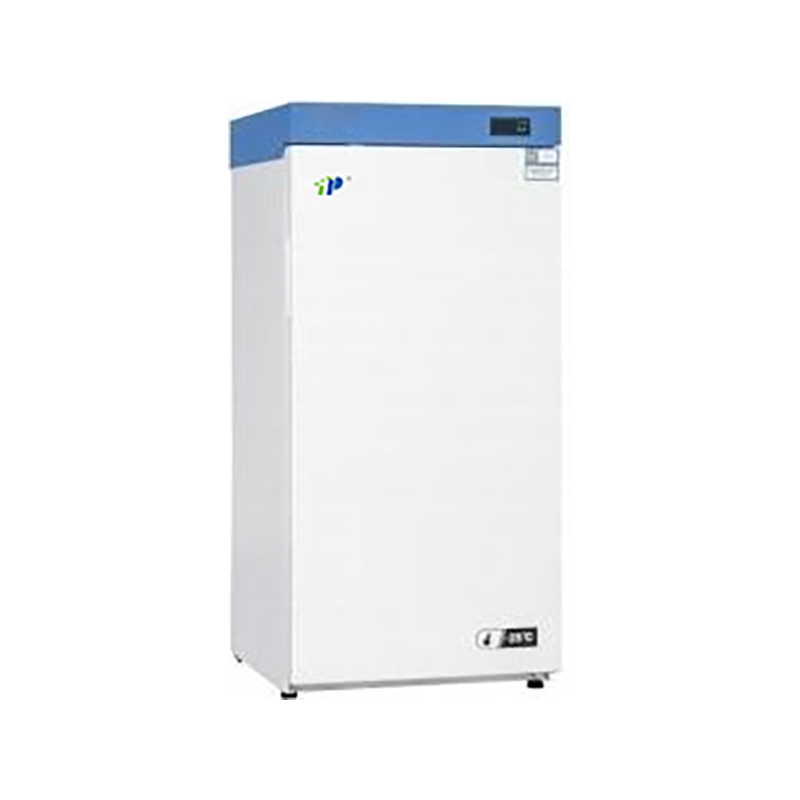

TW-25L116 | 116 | -10 ~ -25°C | 220/50 | 519*600*1120 | 375*425*828 | 3 | 1 | 85 | 40/44 |
TW-25L146 | 146 | -10 ~ -25°C | 220/50 | 519*600*1305 | 375*425*1013 | 4 | 1 | 95 | 44/48 |

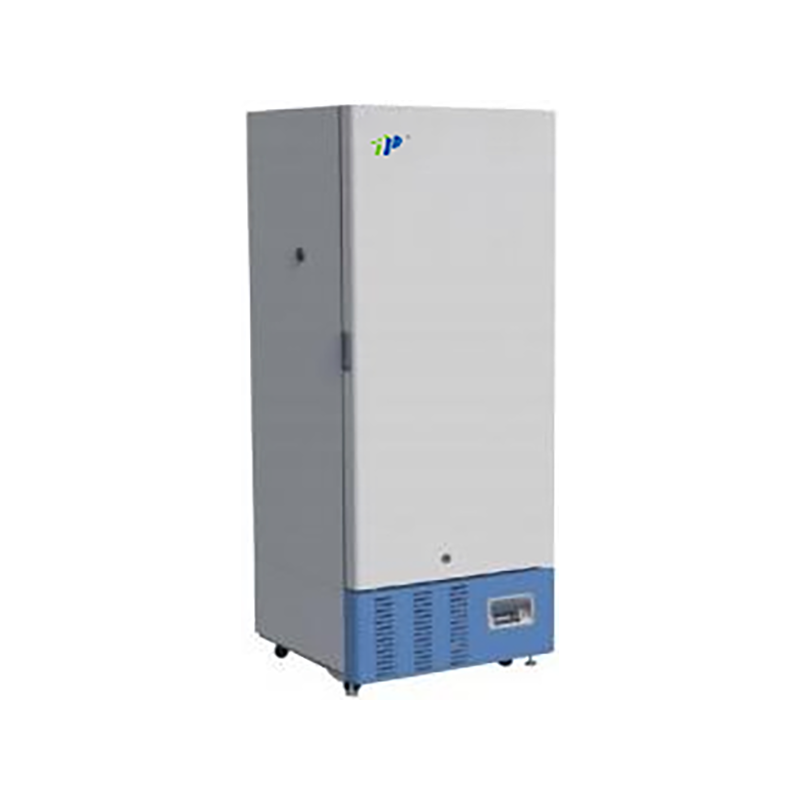

TW-25L276 | 276 | -10 ~ -25°C | 220/50 | 717*710*1745 | 509*520*1205 | 4 | 0 | 245 | 106/125 |

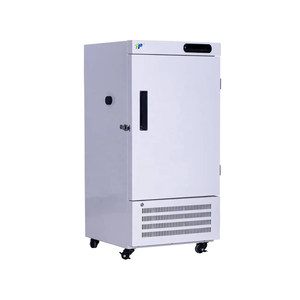

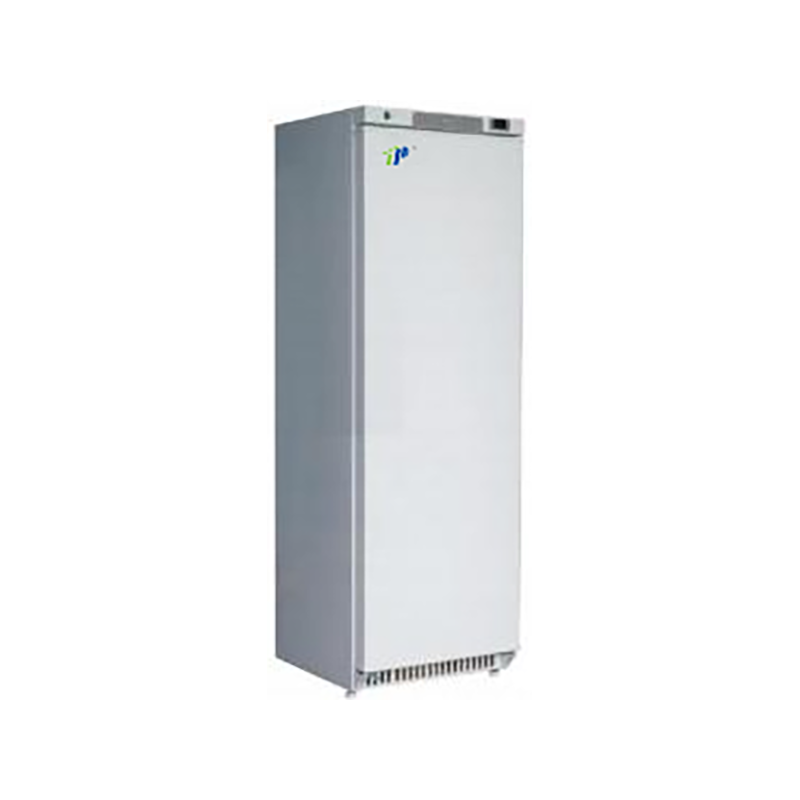

TW-25L300 | 300 | -10 ~ -25°C | 220/50 | 600*625*1875 | 480*450*1618 | 6 | 0 | 265 | 74/85 |
TW-25L400 | 400 | -10 ~ -25°C | 220/50 | 775*720*1900 | 645*528*1641 | 6 | 0 | 330 | 96/105 |
TW-25L300 | 300 | -10 ~ -25°C | 220/50 | 600*625*1875 | 480*450*1618 | 6 | 0 | 265 | 74/85 |
TW-25L400 | 400 | -10 ~ -25°C | 220/50 | 775*720*1900 | 645*528*1641 | 6 | 0 | 330 | 96/105 |
Technical data
Model | Effective volume(L) | Intemal temperature CC) | Rated voltage frequency (V/Hz) | Overall dimensions (mm) | Internal dimensions (mm) | Whole drawers | Half drawers | Power(W) | Net/gross weight (Kg) |
TW-25L116 | 116 | -10 ~ -25°C | 220/50 | 519*600*1120 | 375*425*828 | 3 | 1 | 85 | 40/44 |
TW-25L146 | 146 | -10 ~ -25°C | 220/50 | 519*600*1305 | 375*425*1013 | 4 | 1 | 95 | 44/48 |
TW-25L276 | 276 | -10 ~ -25°C | 220/50 | 717*710*1745 | 509*520*1205 | 4 | 0 | 245 | 106/125 |
TW-25L300 | 300 | -10 ~ -25°C | 220/50 | 600*625*1875 | 480*450*1618 | 6 | 0 | 265 | 74/85 |
TW-25L400 | 400 | -10 ~ -25°C | 220/50 | 775*720*1900 | 645*528*1641 | 6 | 0 | 330 | 96/105 |
TW-25L300 | 300 | -10 ~ -25°C | 220/50 | 600*625*1875 | 480*450*1618 | 6 | 0 | 265 | 74/85 |
TW-25L400 | 400 | -10 ~ -25°C | 220/50 | 775*720*1900 | 645*528*1641 | 6 | 0 | 330 | 96/105 |
