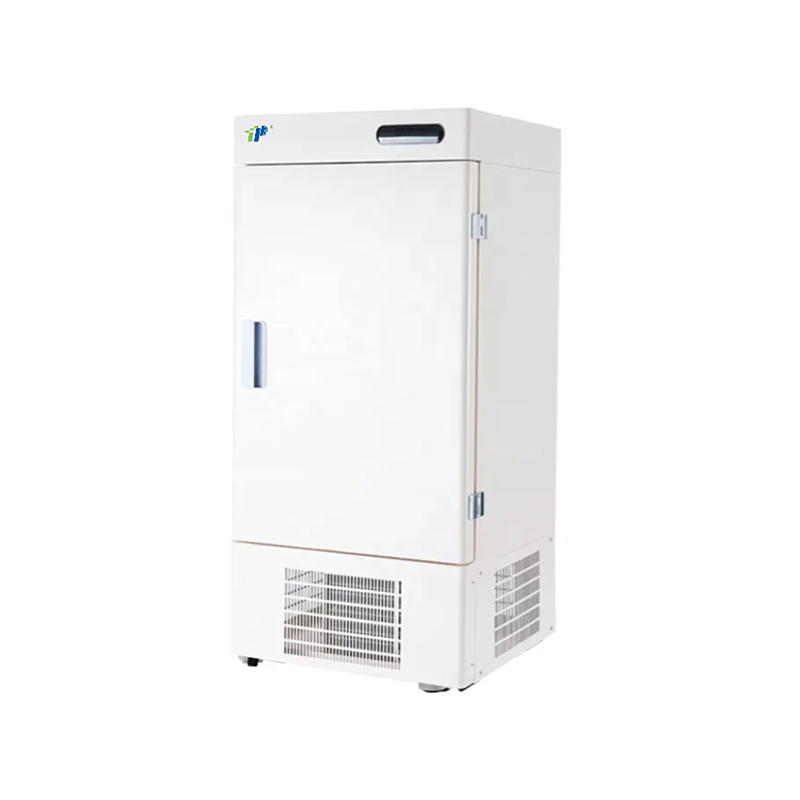

Ultra-Low Temperature Freezer -86°C to -10°C, Vertical Medical & Laboratory Cryogenic Freezer with Microcomputer Control, Stainless Steel Interior, Fluorine-Free Refrigerant, SECOP Compressor
You are here: home » Products » Refrigerator & Freezers » Laboratory Freezers -10°C To -40°C » Ultra-Low Temperature Freezer -86°C to -10°C, Vertical Medical & Laboratory Cryogenic Freezer with Microcomputer Control, Stainless Steel Interior, Fluorine-Free Refrigerant, SECOP Compressor

Product Category

Ultra-Low Temperature Freezer -86°C to -10°C, Vertical Medical & Laboratory Cryogenic Freezer with Microcomputer Control, Stainless Steel Interior, Fluorine-Free Refrigerant, SECOP Compressor

Temperature range (℃): -10~-25 / -15~-45 / -25~-65 / -40~-86
Volume (L): 28L / 58L / 108L / 158L / 208L / 308L / 408L / 508L / 608L / 708L / 808L / 938L
Climate type: N
Inner door: Yes
Refrigerant: Fluorine-free environmentally friendly multi-component mixture

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TW Series

  • TOP

Features:


Refrigeration system

  • Ultra thick foam layer, double sealed door design, effectively protecting the temperature inside the box;

  • Optimize the self stacking refrigeration system with imported compressors for strong and efficient refrigeration capacity,

  • Reasonable evaporator design ensures effective flow of refrigerant and good temperature uniformity inside the box;

  • Unique fluorine free environmentally friendly mixed refrigerant;

  • Single compressor system, with few components, low failure rate, and low energy consumption;

  • Adopting German EBM silent fan, with stable and long-lasting performance and low noise.


Temperature control

  • Microcomputer digital control, real-time temperature display, adjustment unit is 0.1℃;

  • The temperature inside the box can be adjusted, and the temperature difference between the start and stop can be set;

  • The alarm temperature value can be set as needed.


Safety system

  • Equipped with a comprehensive alarm system, with buzzer sound and flashing light alarm functions

  • It can achieve functions such as high and low temperature alarm, sensor fault alarm, etc;

  • Multiple protection functions (password protection, frequent start protection, and keeping the refrigeration system running in case of sensor failure)


User-friendly design

  • Built in adjustable stainless steel shelf, adjustable as needed, flexible and convenient to use, easy to clean;

  • Food grade 304 stainless steel inner liner, ensuring safety and security;

  • Universal caster design, easy to move;

  • Safe door lock design to prevent unauthorized opening;

  • The pressure balance design inside the box also serves as a testing hole, making it convenient to use;

  • LED temperature display, easy to observe, clear and intuitive;

  • Suitable for use in environments ranging from 10 ℃ to 32 ℃


Technical data

Model

TW-25L028

TW-25L058

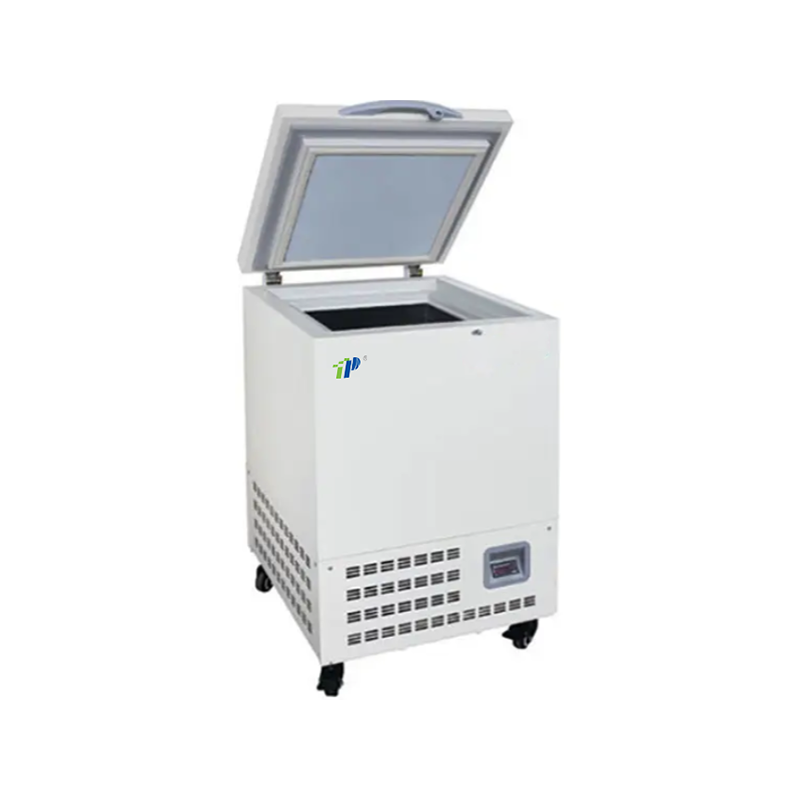

TW-86L058X

TW-25L108

TW-25L158

TW-45L028

TW-45L058


TW-45L108

TW-45L158

TW-65L028

TW-65L058


TW-65L108

TW-65L158

TW-86L028



TW-86L108

TW-86L158

Volume (L)

28

58

58

108

158

Temperature range (℃)

-10~-25/-15~-45/-25~-65/-40~-86

Rated voltage/frequency (V/Hz)

220/50

Rated power (W)

250/300/370/400

270/320/380

450

280/330/420/480

300/350/450/500

Power consumption (KWh/24h)

2.3/3.1/4.6/5.6

2.5/3.3/5.0

6.2

2.7/3.5/5.6/6.7

3.1/3.8/6.9/7.1

Type of electric shock protection

I

Climate type

N

Net weight (kg)

66

78

78

107

123

Noise (dB A)

60

60

60

60

60

Insulation layer thickness (mm)

100

90

120

120

120

Drawer/Shelf

1

1

1

1

2

Inner door

1

1

1

1

3

Product dimensions (mm)

505*520*1165

600*665*1145

640*665*1145

700*730*1260

700*700*1580

Inner box dimensions (mm)

270*265*400

364*405*410

364*405*410

460*460*510

460*455*800

Packaging material 1 (conventional)

Wooden pallet + Carton

Packaging size 1 (mm) (regular)

580*620*1280

650*750*1275

710*795*1305

810*860*1420

810*830*1740

Packaging material 2

Plywood

Packaging dimensions 2 (mm) (plywood)

550*590*1270

620*720*1265

680*765*1295

780*830*1410

780*800*1730

Product parameters

Model

TW-25L208

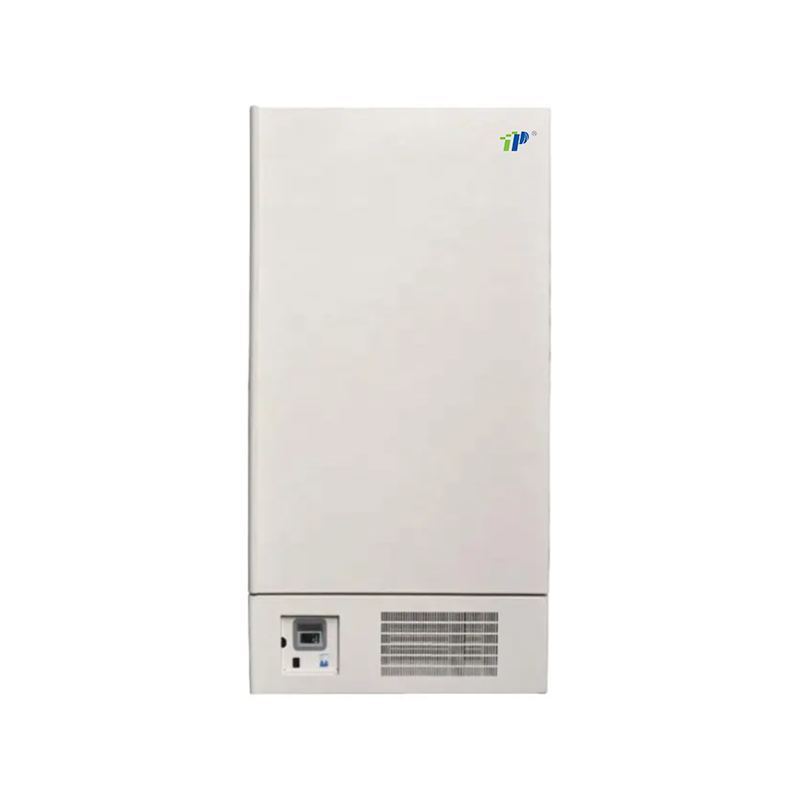

TW-25L308

TW-25L408

TW-25L508

TW-25L608

TW-45L208

TW-45L308

TW-45L408

TW-45L508

TW-45L608

TW-65L208

TW-65L308

TW-65L408

TW-65L508

TW-65L608

TW-86L208

TW-86L308

TW-86L408

TW-86L508

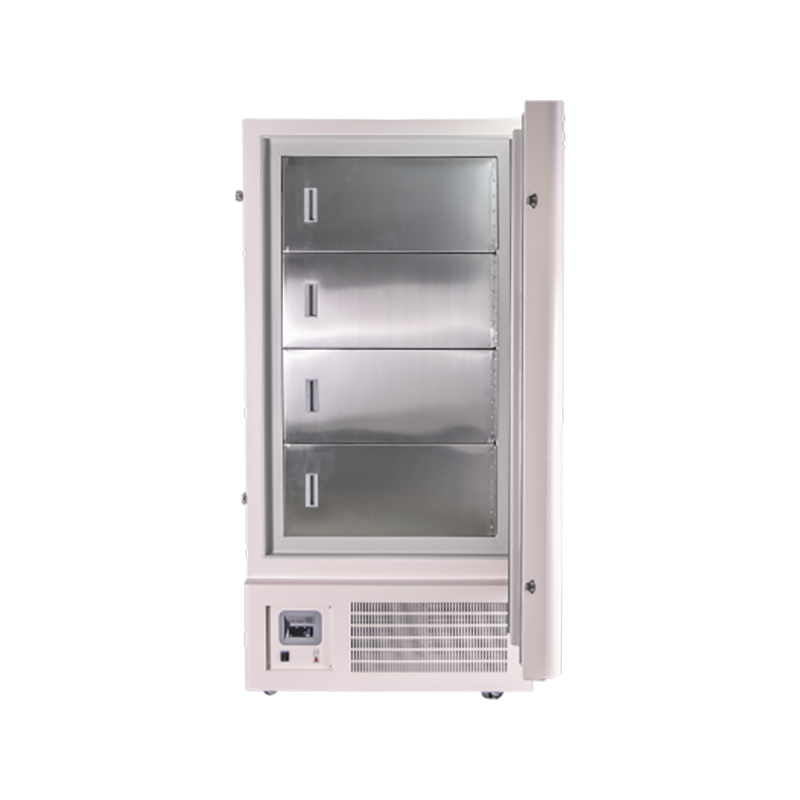

TW-86L608

Volume (L)

208

308

408

508

608

Temperature range (℃)

-10~-25/-15~-45/-25~-65/-40~-86

Rated voltage/frequency (V/Hz)

220/50

Rated power (W)

330/380/490/550

370/420/550/580

400/480/650/950

700/750/900/1050

730/780/950/1100

Power consumption (KWh/24h)

3.5/4.2/7.8/7.9

4.1/4.6/8.2/9.8

4.7/5.2/9.2/13.2

6.9/8.1/10.9/13.5

7.5/8.9/11.3/13.8

Type of electric shock protection

I

Climate types

N

Net weight (kg)

142

160

200

250

265

Noise (dB A)

60

60

60

60

60

Insulation layer thickness (mm)

120

120

150

150

120

Drawer/Shelf

2

2

3

3

3

Inner door

3

3

4

4

4

Product size (mm)

810*730*1600

850*850*1740

850*900*1780

850*1000*1860

990*1000*1860

Inner box dimensions (mm)

570*485*800

570*485*1140

610*615*1120

570*710*1225

700*680*1255

Packaging Material 1 (Regular)

Wooden pallet + Carton

Specifications above 408 are uniformly packaged using plywood.

Packaging size 1 (mm) (regular)

920*860*1760

920*890*1970

Packaging material 2

Plywood

Packaging dimensions 2 (mm) (plywood)

890*830*1750

890*860*1960

930*1060*2010

950*1130*2125

1020*1080*2070




Model

TW-25L708

TW-25L808

TW-25L938



TW-45L708

TW-45L808

TW-45L938



TW-65L708

TW-65L808

TW-65L938



TW-86L708

TW-86L808

TW-86L938



Volume (L)

708

808

938



Temperature range (°C)

-10~-25/-15~-45/-25~-65/-40~-86

Rated voltage/frequency (V/Hz)

220 V / 50 HZ

Rated power (W)

770/820/1000/1150

800/850/1100/1150

850, 900, 1150, 1200



Power consumption (KWh/24h)

8.0/9.4/12.2/15.2

8.8/10.0/12.9/15.9

9.5/11.0/13.8/17.3



Types of electric shock protection

I

Climate types

N

Net weight (kg)

285

300

320



Noise (dB A)

60

60

60



Insulation thickness (mm)

120

120

120



Drawer/Shelf

3

3

3



Inner door

4

4

4



Product size (mm)

1090*980*1920

1090*1010*2025

1240*1000*2000



Inner box dimensions (mm)

850*735*1170

850*735*1335

1000*715*1335



Packaging material 1 (regular)

The specifications above 408 are uniformly packaged in plywood.

Packaging size 1 (mm) (regular)

Packaging material 2

Plywood

Packaging dimensions 2 (mm) (plywood)

980*1060*2010

1000*1130*2125

950*1130*2025



Product Configuration

Style

Vertical

Thermal insulation material

Cyclopentane polyurethane foam insulation layer

Shelf

High-quality food-grade 304 stainless steel

Color

Creamy white with orange stripes

Refrigerant

Fluorine-free environmentally friendly multi-component mixture

Door seal strip

Rubber band airbag, double door seal.

Cooling method

Direct cooling

Outer box material

Cold-rolled steel plate, electrostatic spraying

Hinge

Stainless steel hinge

Compressor

SECOP

Inner box material

High-quality food-grade 304 stainless steel

Alarm method

Bee buzzing sound and display flashing alarm

Evaporator

High-quality copper tube evaporator

Pressure balancing valve, test hole

Screw cap type

Alarm function

High and low temperature alarm, sensor failure alarm

Condenser

High-quality copper tube finned air-cooled condenser

Lock

Portable lock

Attachment

Instruction manual, ice scraper, gloves, keys

Condenser fan

EBM

Roller form

Heavy-dutyFord wheel



Thermostat

Kai De microcomputer LED display temperature controller

Outer gate

Side development bubble door



Optional configuration

Elf micro control/Touch screen/Large handle/Fingerprint lock/Remote monitoring/USB data interface/Temperature recorder/Printer Outer box Cold-rolled sheet coating, inner liner304 stainless steel
