Portable Handheld Homogenizer PTH160 – High-Speed Tissue Disruption for 0.1–250ml Samples

Speed range: 8000~32000rpm
Sample capacity: 0.1~50mL / 50~150mL / 100~250mL

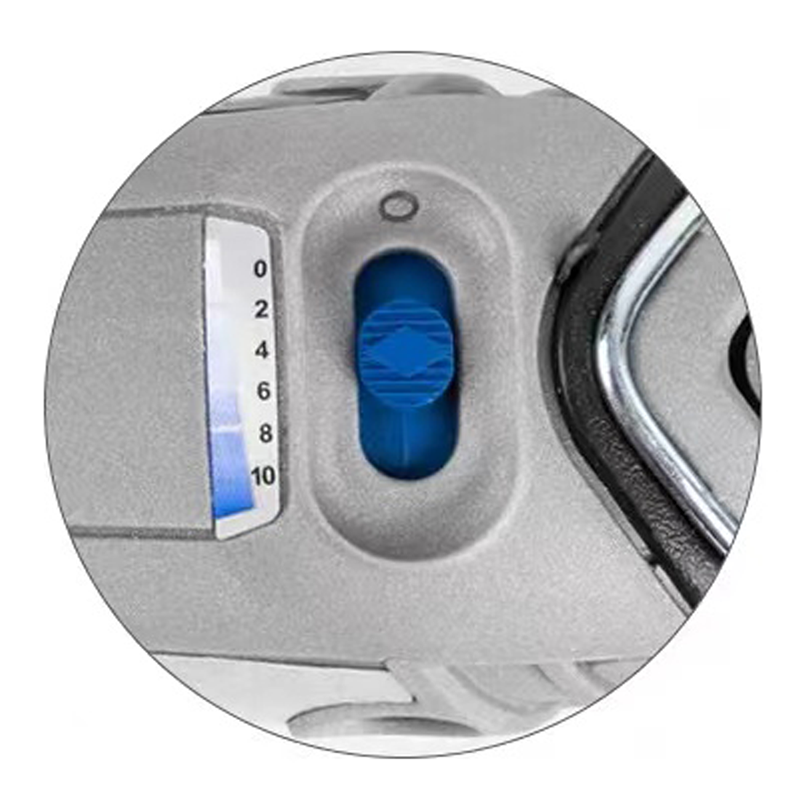

Speed setting level: 6 levels

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PTH160

  • TOP

Main Features:

Handheld homogenizers are widely used for homogenization of solid, semi-solid, and non-water-soluble samples of animal and plant tissues, food,pharmaceuticals, cosmetics, agricultural products, and biological samples. Suitable for Soft tissue disruption,cell disruption, protein extraction, emulsification, etc.


Working principle:

The sample is cyclically sucked into the narrow space between the stator and rotor that moves relatively at high speed,and is rapidly sheared and broken.


Features:

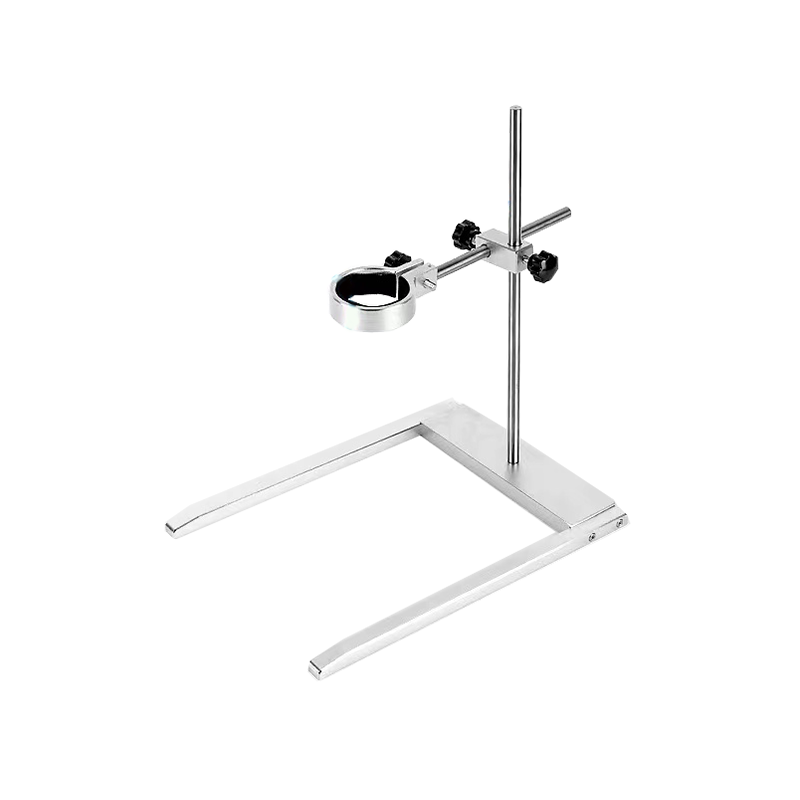

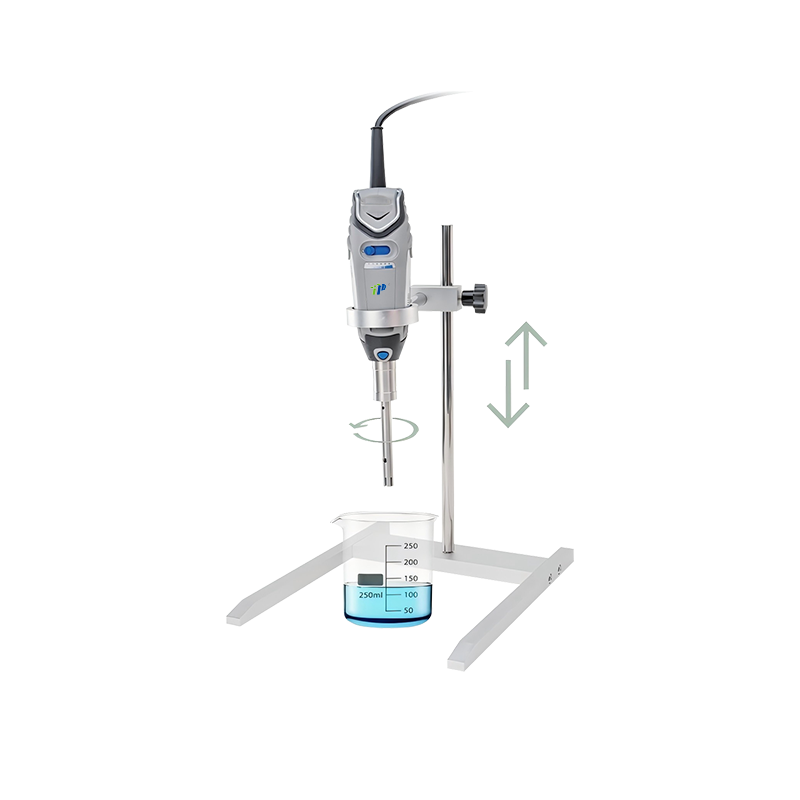

●Lightweight design, handheld operation or can use workbench for long-term sample processing

● Applicable to liquid samples of 0.1~50ml/50~150ml or 100~250ml

● High-quality 316L stainless steel dispersing probe, corrosion-resistant and resistant to high-temperature sterilization

● Double protective insulation, safe to use

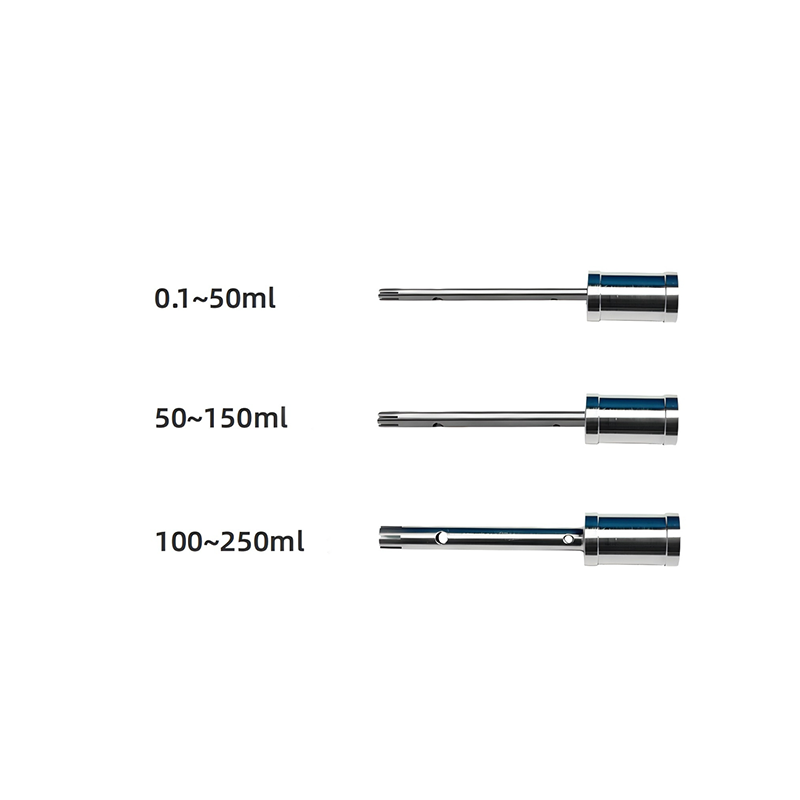

3 kinds dispersing probes optional:

made of 316L stainless steel, corrosion-resistant,suitable for centrifuge tubes, beakers, etc.


Machine parameters:

Model

PTH160

Power

160W

Speed range

8000~32000rpm

Speed setting level

6 levels

Dispersing probe material

S5316L stainless steel, PTFE

Sample capacity

0.1~50mL/50~150mL/100~250mL

Dimension (with workbench)

L300×W240×H370mm

Weight

0.54kg

Power supply

110V,60Hz;220V,50Hz
