PD18
TOP

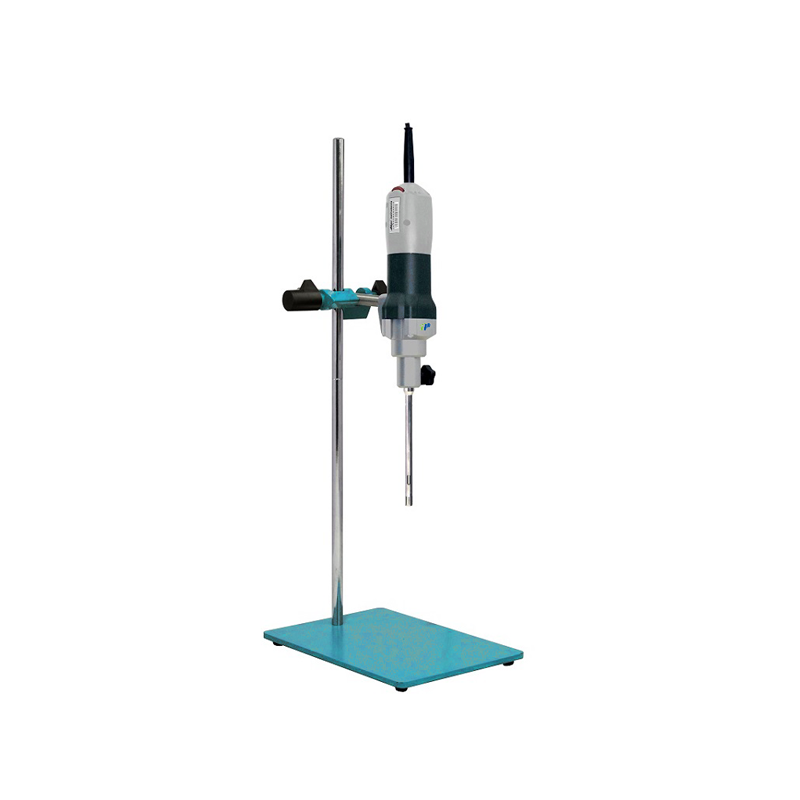

PD18 adopts German original imported miniature high-power high-speed motor as the drive, suitable for laboratory low to medium and high viscosity liquid stirring and mixing, dispersing and homogenizing granular materials in liquid medium, tissue cell crushing and so on. The machine consists of high-speed motor, dispersing and homogenizing working head and machine base. The driving host adopts high-quality engineering plastics and die-casting aluminum alloy as the body, which is stable in operation; the working head adopts high-quality stainless steel refinement, which has a wide range of experimental applications; the adjustment and control of the operating speed meets the correction of the operating speed at any time during the experiment, which ensures that the experimental operation is effective and controllable.
PD18 adopts German original imported miniature high-power high-speed motor as the drive, suitable for laboratory low to medium and high viscosity liquid stirring and mixing, dispersing and homogenizing granular materials in liquid medium, tissue cell crushing and so on. The machine consists of high-speed motor, dispersing and homogenizing working head and machine base. The driving host adopts high-quality engineering plastics and die-casting aluminum alloy as the body, which is stable in operation; the working head adopts high-quality stainless steel refinement, which has a wide range of experimental applications; the adjustment and control of the operating speed meets the correction of the operating speed at any time during the experiment, which ensures that the experimental operation is effective and controllable.
Machine parameters:
Rated voltage | AC 220V |
Rated frequency | 50\60 Hz |
Input power | 710W |
Output Power | 430 W |
Rated torque | 12.1 N.cm |
Working mode | S1(Continuous) |
Operation control method | speed control knob |
Speed adjustment range-idle running | 13000~34000 rpm |
Working head material | Stainless steel 316L |
Working head configuration specifications | 8\10\12\18\24 G |
Maximum torque ofworking head | 12 N.cm |
Speed control type | 6 gears |
Restart protection function | Yes |
Safe shutdown function | Yes |
Allowable ambient temperature | not more than 40℃ |
Allowable relative humidity | not more than 80% |
Machine appearance size | 215×310×720 mm |
Machine weight | 8 kg |
Machine parameters:
Rated voltage | AC 220V |
Rated frequency | 50\60 Hz |
Input power | 710W |
Output Power | 430 W |
Rated torque | 12.1 N.cm |
Working mode | S1(Continuous) |
Operation control method | speed control knob |
Speed adjustment range-idle running | 13000~34000 rpm |
Working head material | Stainless steel 316L |
Working head configuration specifications | 8\10\12\18\24 G |
Maximum torque ofworking head | 12 N.cm |
Speed control type | 6 gears |
Restart protection function | Yes |
Safe shutdown function | Yes |
Allowable ambient temperature | not more than 40℃ |
Allowable relative humidity | not more than 80% |
Machine appearance size | 215×310×720 mm |
Machine weight | 8 kg |
Work Head Parameters:
Work head specification(G) | 8 10 12 18 24 |
Mixing capacity(H₂O) | 15~50 20~100 30~800 50~1500 80~5000 |
Suitable maximum viscosity(mPa.s) | 5000 5000 5000 5000 5000 |
Maximum temperature(℃) | 120 120 120 120 120 |
Overall length(mm) | 156 182 215 242 245 |
Stator diameter(mm) | 8 10 12 18 24 |
Work head material | SS 316L SS 316L SS 316L SS 316L SS 316L |
Bearing material | PTFE PTFE PTFE PTFE PTFE |
Rotor maximum linear speed(m/s) | 10 11 12 15 18 |
Minimum/maximum immersion liquid height(mm) | 15\105 25\130 35\150 45\160 50\165 |
Work Head Parameters:
Work head specification(G) | 8 10 12 18 24 |
Mixing capacity(H₂O) | 15~50 20~100 30~800 50~1500 80~5000 |
Suitable maximum viscosity(mPa.s) | 5000 5000 5000 5000 5000 |
Maximum temperature(℃) | 120 120 120 120 120 |
Overall length(mm) | 156 182 215 242 245 |
Stator diameter(mm) | 8 10 12 18 24 |
Work head material | SS 316L SS 316L SS 316L SS 316L SS 316L |
Bearing material | PTFE PTFE PTFE PTFE PTFE |
Rotor maximum linear speed(m/s) | 10 11 12 15 18 |
Minimum/maximum immersion liquid height(mm) | 15\105 25\130 35\150 45\160 50\165 |
