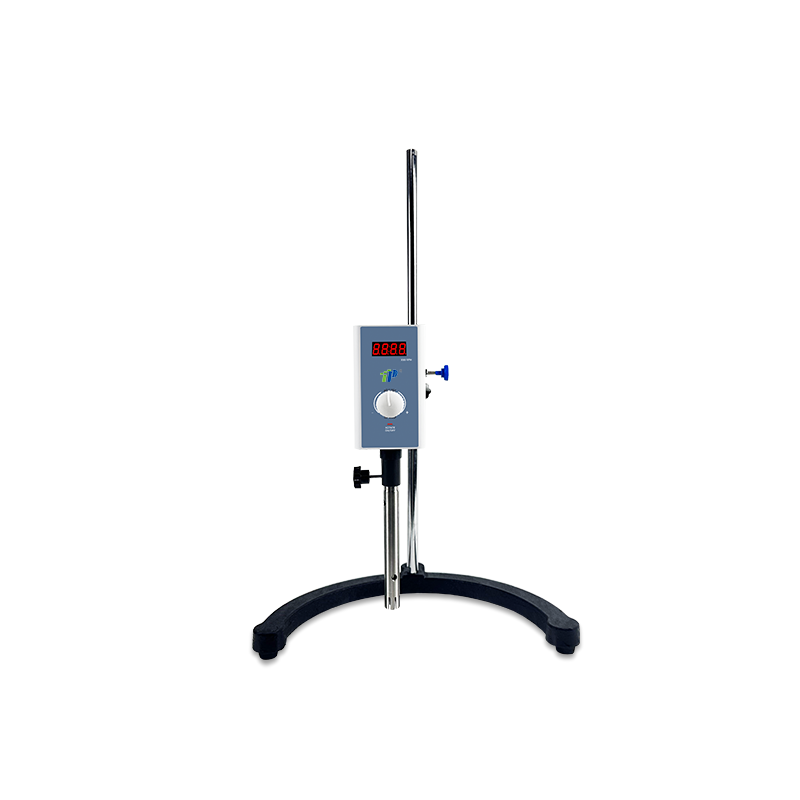

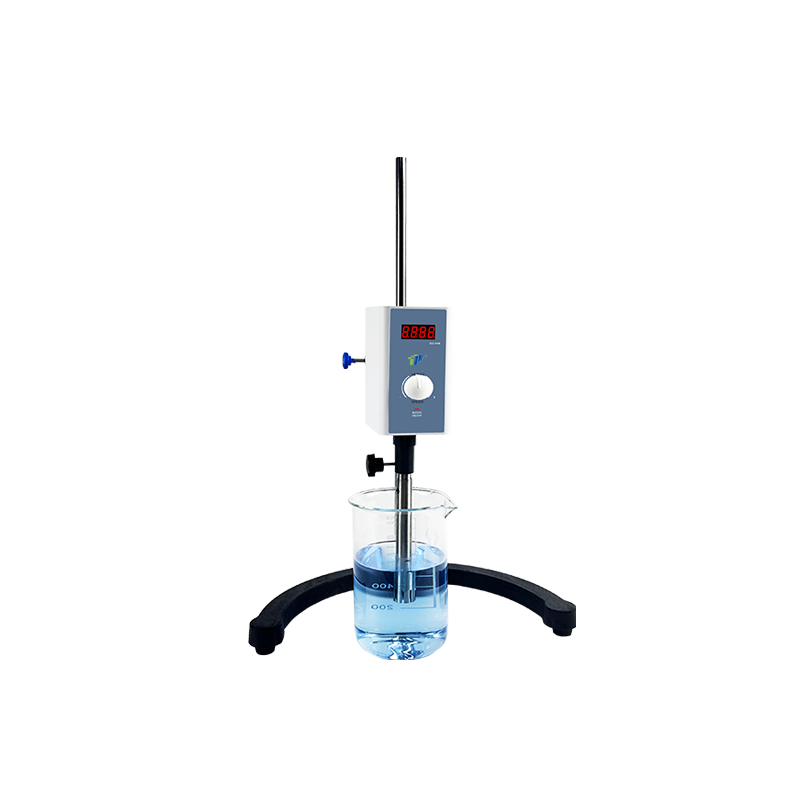

High-Speed Laboratory Homogenizer PTH200D with Digital Display, 200W DC Motor, Adjustable 2000-20000rpm, Stainless Steel Probes for Efficient Emulsification & Homogenization, 20-1200mL Sample Capacity

Maximum viscosity: 5000 mPa.s
Speed range: 2000~20000rpm
Adjustment method: Knob Infinitely Variable Speed Control
Small capacity probe: Diameter: 12m, Length: 15cm, Processing Capacity: 20-1000mL
Large capacity probe: Diameter: 18mm, Length:16cm, Processing Capacity: 20-1200mL

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PTH200D

  • TOP

Main Features:

It is mainly used for efficient homogenization and emulsification between two immiscible liquid, and extraction of trace organic compounds, fat-soluble substances and organic solvent-soluble substances in water. It is widely applicated as an experimental instrument in scientific research institutions, colleges and universities, environmental protection, sanitation and epidemic prevention, chemical industry, water supply, medical units.


Features:

● DC high-speed motor, strong power, stable operation, low heat, long lifetime, lower energy consumption

● High-definition digital display screen, real-time display to guarantee for collecting experimental data

● Stainless steel probe, corrosion-resistant and high-temperature resistant

● 2 specifications of probe to meet the needs of different experiments

● Stepless speed knob, accurately setting the speed within the range of 2000~20000rpm


Machine parameters:

Model

PTH200D

Power

200W

Power adapter

24V 6A

Speed range

2000~20000rpm

Adjustment method

Knob Infinitely Variable Speed Control

Maximum viscosity

5000 mPa.s

Set 1: Small capacity probe

Diameter: 12m, Length: 15cm, Processing Capacity: 20-1000mL

Set 2: Large capacity probe

Diameter: 18mm, Length:16cm, Processing Capacity:20-1200mL

Material of touching sample

Stainless Steel and Polytetrafluoroethylene (PTFE)

Protection level

IP20

Motor

Direct Current High-Speed Motor

Diameter (including stand) (LxWxH)

L360mm×W320mm×H600mm

Weight

4kg

Input voltage/frequency

100~240V  50/60Hz
