PD25
TOP

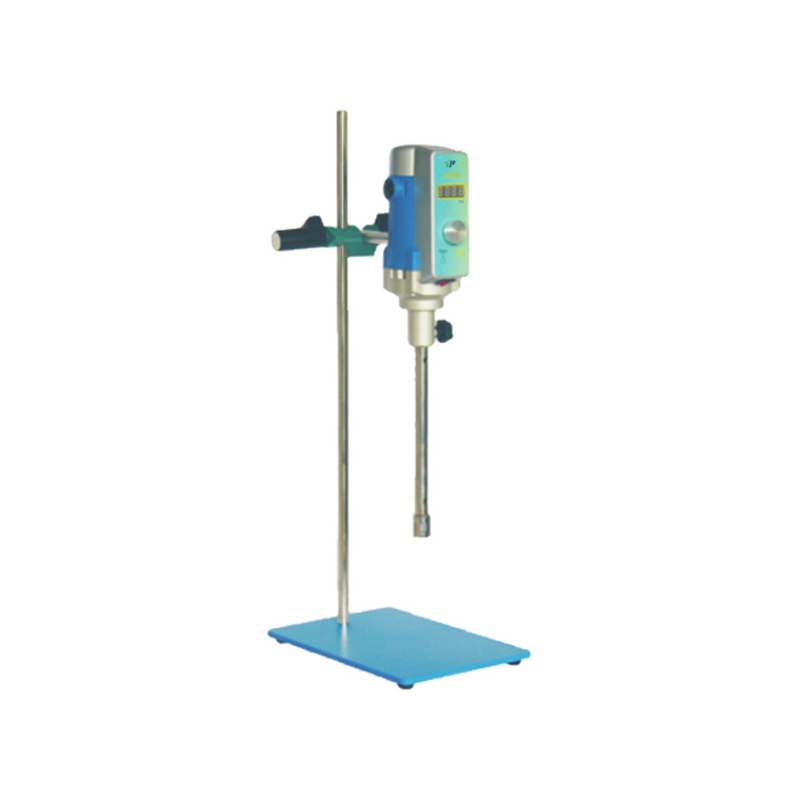

PD25 dispersing and homogenizing machine is driven by high-speed motor, suitable for mixing low to medium and high viscosity liquids or dispensing in liquid medium, tissue cell crushing and so on. The drive output and working head are positioned in an integrated structure, which makes the operation more stable; the working head is made of high-quality stainless steel, with a wide range of experimental applications; the operating speed is controlled by microprocessor, which has the capability of instantly compensating for the speed change caused by the load change and power supply fluctuation, and the speed is constant and reliable; the built-in soft-starting and automatic overload protection protects the experiments at a certain period of time for the safety of full-load continuous operation; the speed is adjusted without any polarity, which can satisfy the experiments' requirements for the operating speed. The speed is infinitely adjustable to meet the experimental correction of running speed at any time. Digital display speed intuitive, easy to collect experimental data; operation timing control, to ensure effective control of the experimental time.
PD25 dispersing and homogenizing machine is driven by high-speed motor, suitable for mixing low to medium and high viscosity liquids or dispensing in liquid medium, tissue cell crushing and so on. The drive output and working head are positioned in an integrated structure, which makes the operation more stable; the working head is made of high-quality stainless steel, with a wide range of experimental applications; the operating speed is controlled by microprocessor, which has the capability of instantly compensating for the speed change caused by the load change and power supply fluctuation, and the speed is constant and reliable; the built-in soft-starting and automatic overload protection protects the experiments at a certain period of time for the safety of full-load continuous operation; the speed is adjusted without any polarity, which can satisfy the experiments' requirements for the operating speed. The speed is infinitely adjustable to meet the experimental correction of running speed at any time. Digital display speed intuitive, easy to collect experimental data; operation timing control, to ensure effective control of the experimental time.
Machine parameters:
Rated voltage | AC 220V |
Rated frequency | 50/60 Hz |
Input power | 710W |
Output Power | 430 W |
Rated torque | 12.1 N.cm |
Working mode | S1(Continuous) |
Operation control method | speed control knob |
Speed adjustment range-idle running | 13000~34000 rpm |
Working head material | Stainless steel 316L |
Working head configuration specifications | 8\10\12\18\24 G |
Maximum torque of working head | 12 N.cm |
Speed control type | 6 gears |
Restart protection function | Yes |
Safe shutdown function | Yes |
Allowable ambient temperature | not more than 40℃ |
Allowable relative humidity | not more than 80% |
Machine appearance size | 215×310×720 mm |
Machine weight | 8 kg |
Machine parameters:
Rated voltage | AC 220V |
Rated frequency | 50/60 Hz |
Input power | 710W |
Output Power | 430 W |
Rated torque | 12.1 N.cm |
Working mode | S1(Continuous) |
Operation control method | speed control knob |
Speed adjustment range-idle running | 13000~34000 rpm |
Working head material | Stainless steel 316L |
Working head configuration specifications | 8\10\12\18\24 G |
Maximum torque of working head | 12 N.cm |
Speed control type | 6 gears |
Restart protection function | Yes |
Safe shutdown function | Yes |
Allowable ambient temperature | not more than 40℃ |
Allowable relative humidity | not more than 80% |
Machine appearance size | 215×310×720 mm |
Machine weight | 8 kg |
Work Head Parameters:
Specifications(G/F) | 20 | 25 | 30 |
Treatment capacity(ml) | 50-1500 | 80-5000 | 100-8000 |
maximum viscosity(mPa.s) | 5000 | 5000 | 5000 |
Stator diameter(mm) | 20 | 25 | 30 |
Maximum linear speed of rotor(m/s) | 15 | 18 | 22 |
Working head length(mm) | 285 | 290 | 295 |
Minimum liquid immersion height(mm) | 40 | 50 | 60 |
Maximum immersion height(mm) | 220 | 225 | 230 |
Working head Texture of material | SS316L | SS316L | SS316L |
Working head bearing material | PTFE | PTFE | PTFE |
Maximum service temperature(℃) | 120 | 120 | 120 |
Work Head Parameters:
Specifications(G/F) | 20 | 25 | 30 |
Treatment capacity(ml) | 50-1500 | 80-5000 | 100-8000 |
maximum viscosity(mPa.s) | 5000 | 5000 | 5000 |
Stator diameter(mm) | 20 | 25 | 30 |
Maximum linear speed of rotor(m/s) | 15 | 18 | 22 |
Working head length(mm) | 285 | 290 | 295 |
Minimum liquid immersion height(mm) | 40 | 50 | 60 |
Maximum immersion height(mm) | 220 | 225 | 230 |
Working head Texture of material | SS316L | SS316L | SS316L |
Working head bearing material | PTFE | PTFE | PTFE |
Maximum service temperature(℃) | 120 | 120 | 120 |
