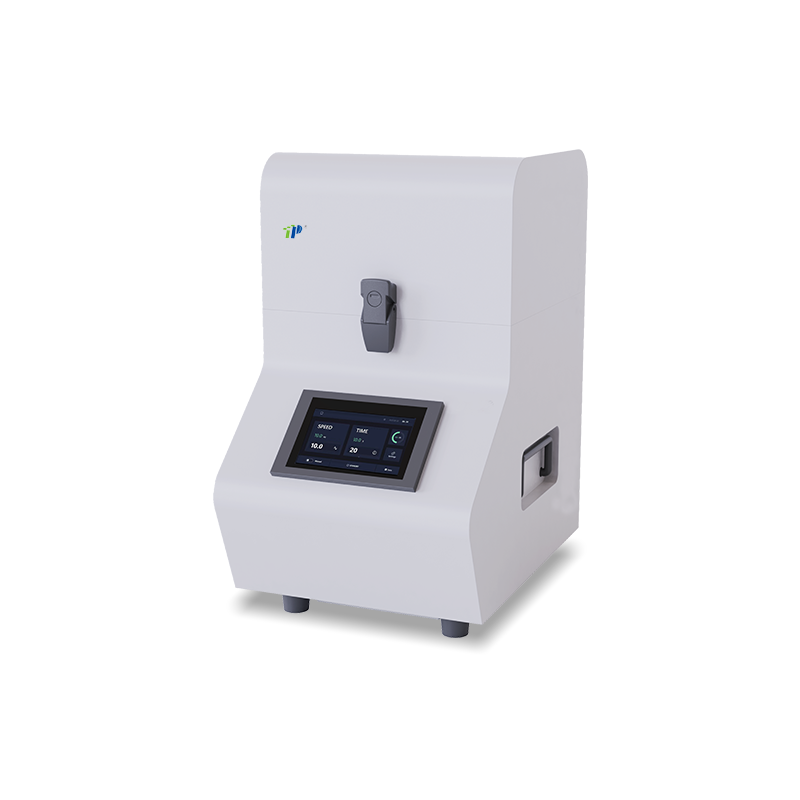

High-Throughput Tissue Grinder with 7-Inch Touch Screen | Multi-Sample High-Frequency Oscillation Homogenizer for Nucleic Acid & Protein Extraction

Sample capacity:
24/32/48/64×(0.2~0.5mL)
24/32/48/64×(1.5~2mL)
4/12/24×5mL
10×8mL
2×25mL
2×50mL
Grind sample: ≤5μm
Grinding plates : 1
Grinding ball diameter:0.1~30mm
Grinding timing: 0~9999s

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • PMTG24

  • TOP

Main Features:

The high-throughput tissue grinder is a fast, high-efficiency, multi-sample grinding system. Adopt high-frequency three-dimensional oscillation method, shear and grind different samples through use different grinding beads, thereby effectively improving the efficiency and quality of nucleic acid and protein extraction and purification.


Features:

● Adopt high-frequency three-dimensional oscillation method, more complete grinding

● Multiple samples can be ground within 1 minute, large sample processing capacity

● Setting the same procedure for the same tissue sample can achieve the same grinding effect with good repeatability

●  Color touch screen, built-in program controller, can set grinding time, vibration frequency and other parameters

●  Equipped with switch sensor and lock, high safety

●  In a fully enclosed state during the grinding process to avoid cross contamination

●  During the operation of the instrument, the noise is less than 55dB and will not interfere with other experiments or instruments


Applications:

○ Fungus bacteria

○ Food and medicine

○ Volatile samples

○ Plastic/Polymer

○ Plant tissue

○ Animal tissue


Machine parameters:

Model

PMTG24

Sample capacity

24/32/48/64×(0.2~0.5mL)

24/32/48/64×(1.5~2mL)

4/12/24×5mL

10×8mL/2×25mL/2×50mL

Display

7-inch color touch screen

Sample size

Adjust according to adapter

Grind sample

≤5μm

Grinding plates

1

Center positioning/ fastening

Yes

Frequency

0~70Hz

Grinding timing

0~9999s

Acceleration/deceleration time

2s

Grinding ball material

Stainless steel/zirconia

Grinding ball diameter

0.1~30mm

Grinding method

Dry grinding/Wet grinding/Frozen grinding(Optional: Low temperature adapter)

Dimension

L272×W375×640mm

Weight

25kg

Power supply

100~240V;50/60Hz
